024TUF-T4191D20
FREEDM® Loose Tube, Gel-Free Cable, Riser 24 F, 50 µm multimode, extended 10G distance (OM4)
Especificações gerais
| Número do produto | 024TUF-T4191D20 |
| Installation Methods | Aerial, Direct Buried, Duct, Horizontal |
| Cable Type | Loose Tube |
| Environment | Indoor/Outdoor |
| Product Type | Dielectric |
| Fiber Category | 50 µm MM (OM4+) |
| Flame Rating | Riser (OFNR) |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code® (NEC®) OFNR, CSA OFN FT-4 |
| Common Installations | Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code® (NEC®) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696 |
Environmental Conditions
| Temperature Range, Installation | -10 °C para 60 °C (14 °F para 140 °F ) |
| Temperature Range, Operation | -40 °C para 70 °C (-40 °F para 158 °F ) |
| Temperature Range, Storage | -40 °C para 70 °C (-40 °F para 158 °F ) |

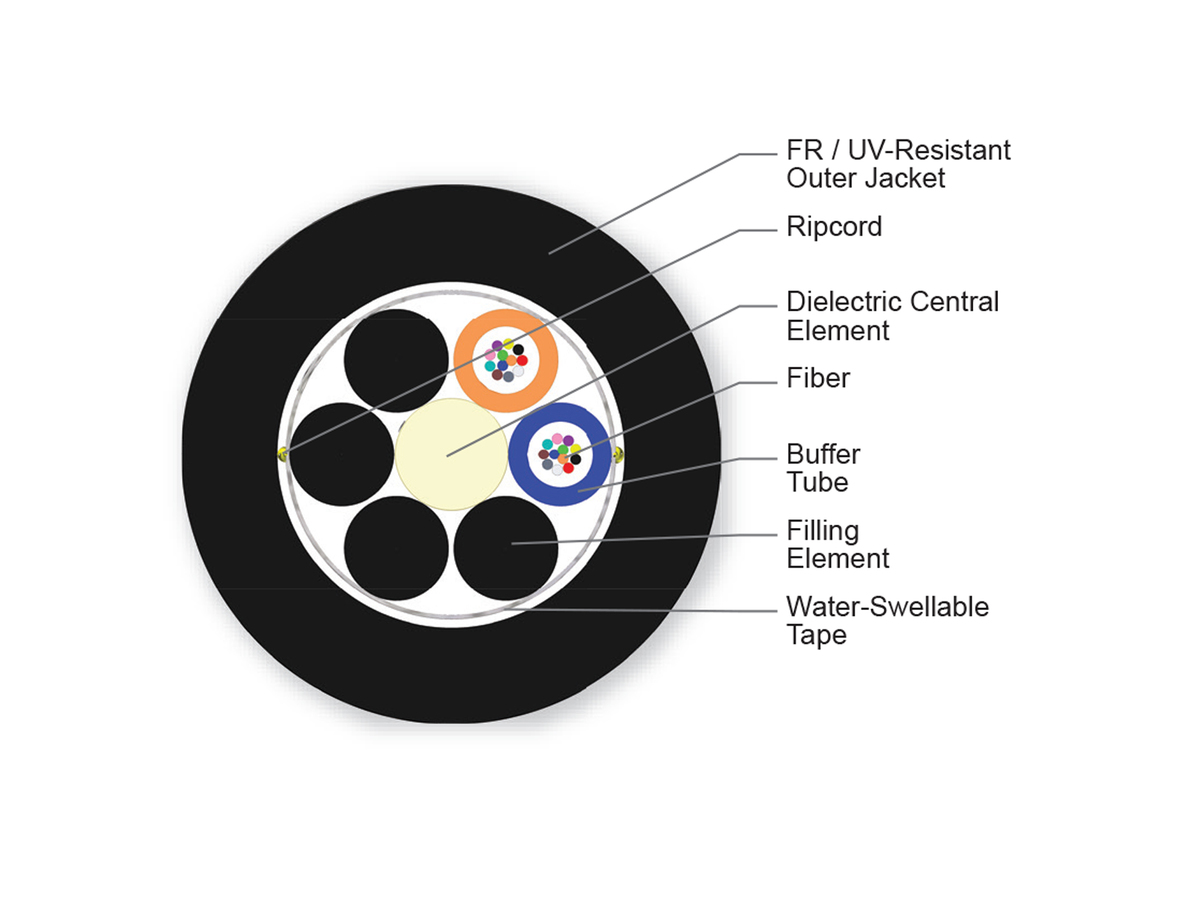

Cable Design
| Central Element | Dielectric |
| Fiber Count | 24 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Buffer Tube Color | Blue, Orange |
| Buffer Tube Diameter | 2.5 mm |
| Number of Active Tubes | 2 |
| Number of Filling Elements | 4 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Color Code Standards | Telcordia |
Mechanical Specifications
| Max. Tensile Strength, Long-Term | 810 N |
| Max. Tensile Strength, Short-Term | 2700 N |
| Min. Bend Radius Installation | 195 mm |
| Min. Bend Radius Operation | 130 mm |
| Nominal Outer Diameter | 13 mm |
Dimensions
| Cable Weight | 146 kg/km |
Livre-Gel tecnologia waterblocking
Preparação cabo-friendly Artesanato
Design do tubo loose
Desempenho estável e compatibilidade com todos os tipos de fibras comuns
Tubos e fibras codificadas por cor
Identificação fácil e rápida
Estrutura totalmente dielétrica
Não exige aterramento ou conexão
Instalações comuns
Aéreo espinado e duto externos; riser vertical interno e horizontal de uso geral de acordo com o Artigo 770 do National Electrical Code® (NEC®)
