018K8F-31130-A1 | FREEDM® One Tight-Buffered, Interlocking Armored Cable, Riser 18 F, 62.5 µm multimode (OM1)

General Specifications

Product Number	018K8F-31130-A1
EAN Code	4056418174099
Cable Type	Tight-Buffered
Environment	Indoor/Outdoor
Product Type	Interlocking Armor
Fiber Category	62.5 µm MM (OM1)
Flame Rating	Riser (OFCR)
Application	Aerial, Direct Buried, Duct, General purpose, Horizontal, Vertical Riser
Cable geometry	Round

Standards

RoHS	Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings	National Electrical Code® (NEC®) OFCR, UL 1666, CSA FT-4
Design and Test Criteria	ICEA S-104-696

Environmental Conditions

Temperature Range, Installation	-10 °C to 60 °C (14 °F to 140 °F )
Temperature Range, Operation	-40 °C to 70 °C (-40 °F to 158 °F )
Temperature Range, Storage	-40 °C to 70 °C (-40 °F to 158 °F )

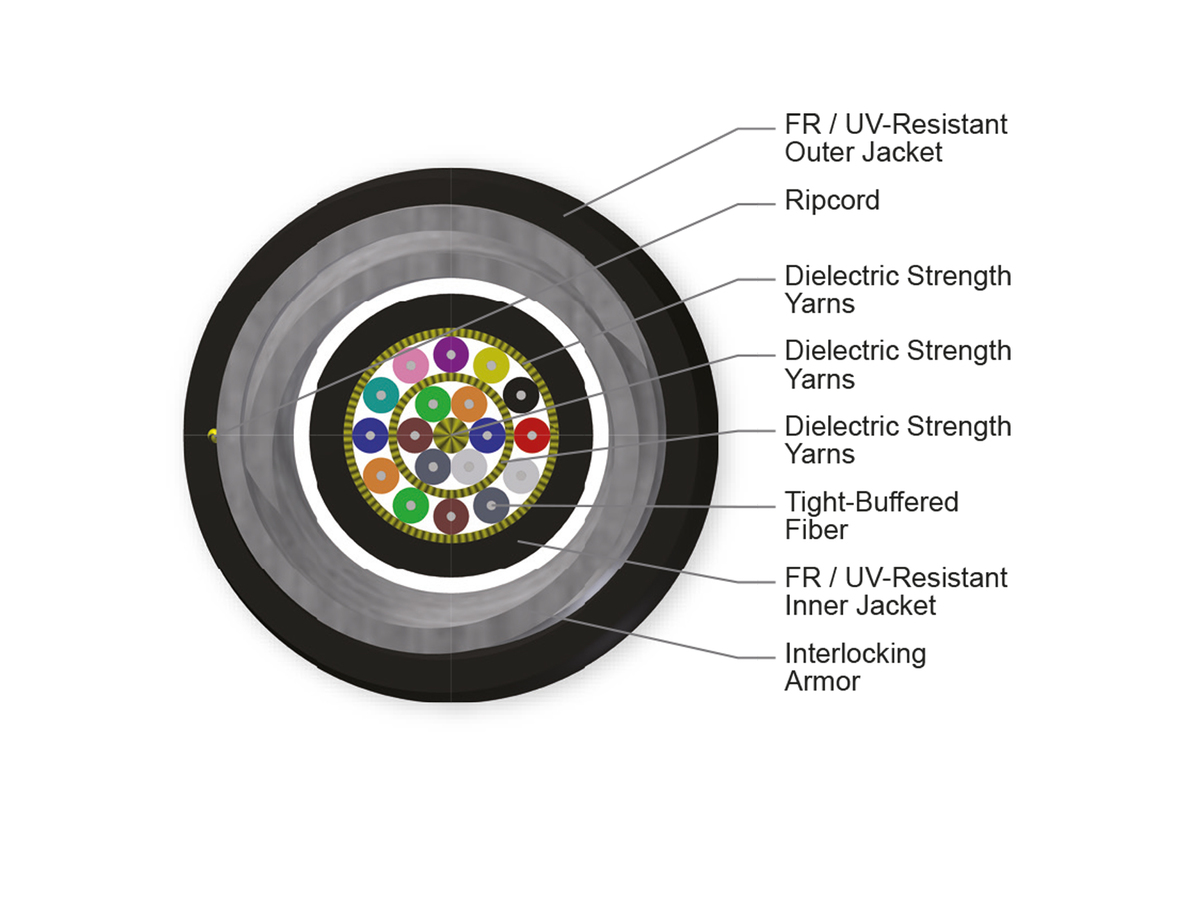

Cable Design

Central Element	Dielectric
Fiber Count	18
Number of Ripcords	2
Outer Jacket Color	Black
Outer Jacket Material	Flame-Retardant, UV-Resistant
Tensile Strength Elements and/or Armoring - Layer 1	Water-swellable strength members
Tensile Strength Elements and/or Armoring - Layer 2	Interlocking Armor
Inner Jacket Material	Flame-Retardant, UV-Resistant
Tight Buffer Color	Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua, Blue, Orange, Green, Brown, Slate, White
Flame Rating	Riser (OFCR)

Mechanical Specifications

Max. Tensile Strength, Long-Term	400 N
Max. Tensile Strength, Short-Term	1350 N
Min. Bend Radius Installation	205.5 mm
Min. Bend Radius Operation	137 mm
Nominal Inner Cable Diameter	7.4 mm
Nominal Outer Diameter	13.7 mm

Dimensions

Cable Weight

145.7 kg/km

Waterblocking technology

OSP (outdoor) applications

Flexible, interlocking armor design

Seven times crush protection compared to non-armored cables

UV-resistant, flame-retardant jacket

Rugged, durable and easy to strip
