018T88-33131-A3
MIC® Tight-Buffered, Interlocking Armored Cable, Plenum 18 F, 50 µm multimode (OM2)
Especificações gerais
| Número do produto | 018T88-33131-A3 |
| Código EAN | 4056418778327 |
| Cable Type | Tight-Buffered |
| Environment | Indoor |
| Product Type | Interlocking Armor |
| Fiber Category | 50 µm MM (OM2) |
| Flame Rating | Plenum (OFCP) |
| Application | General purpose, Horizontal, Plenum, Vertical Riser |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code® (NEC®) OFCP, NFPA 262, CSA FT-6 |
| Design and Test Criteria | ICEA S-83-596 |
Environmental Conditions
| Temperature Range, Installation | 0 °C para 60 °C (32 °F para 140 °F ) |
| Temperature Range, Operation | 0 °C para 70 °C (32 °F para 158 °F ) |
| Temperature Range, Storage | -40 °C para 70 °C (-40 °F para 158 °F ) |

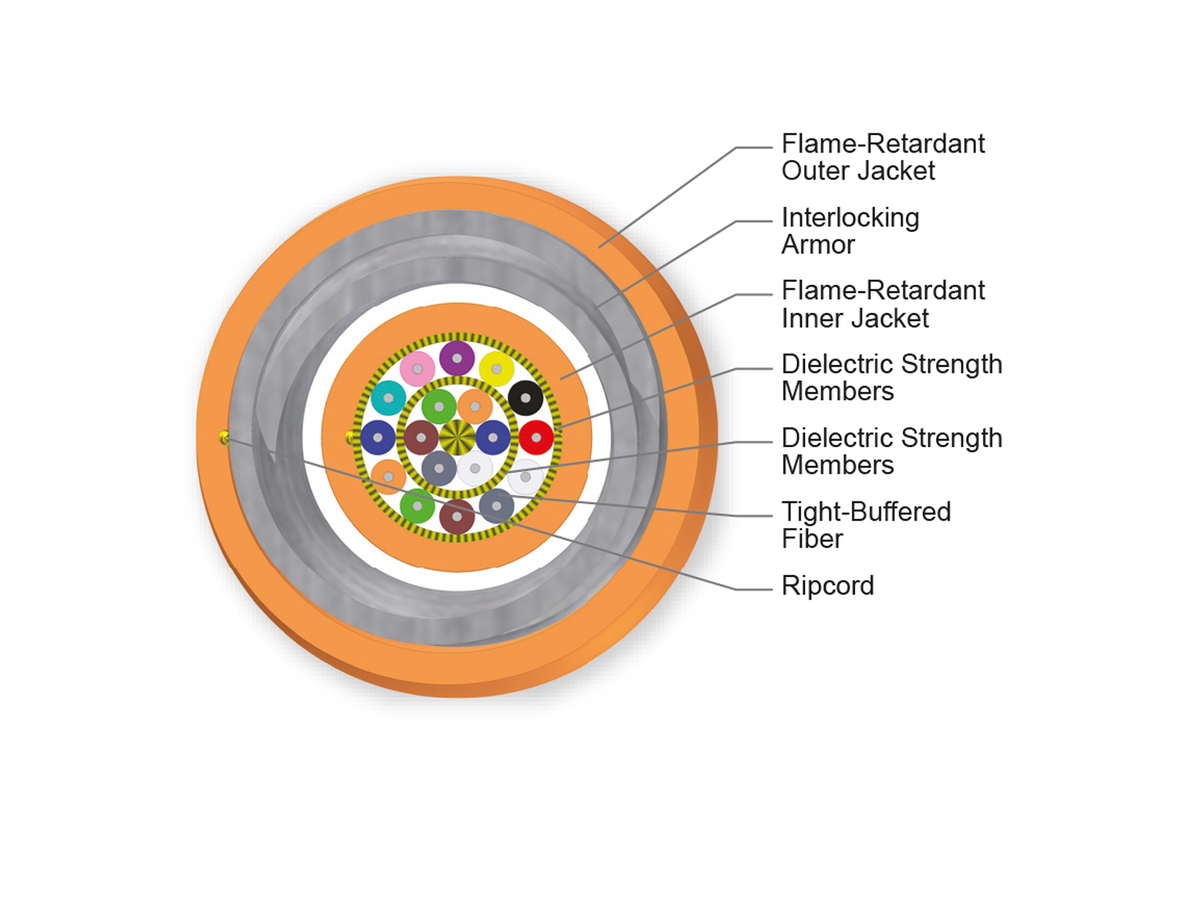

Cable Design
| Central Element | Yarn |
| Fiber Count | 18 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Orange |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Inner Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 3 | Interlocking Armor |
| Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White |
| Flame Rating | Plenum (OFCP) |
Mechanical Specifications
| Max. Tensile Strength, Long-Term, ≤12F | 132 N |
| Max. Tensile Strength, Long-Term, >12F | 200 N |
| Max. Tensile Strength, Long-Term | 200 N |
| Max. Tensile Strength, Short-Term, ≤12F | 440 N |
| Max. Tensile Strength, Short-Term, >12F | 660 N |
| Max. Tensile Strength, Short-Term | 660 N |
| Min. Bend Radius Installation | 206 mm |
| Min. Bend Radius Operation | 137 mm |
| Nominal Inner Cable Diameter | 7.4 mm |
| Nominal Outer Diameter | 13.7 mm |
Dimensions
| Cable Weight | 151 kg/km |
Flexible, interlocking armor design
Seven times crush protection compared to non-armored cables
TBII buffered fibers
Easy, consistent stripping
Flame-retardant jacket
Rugged and durable
