024T88-33131-D3 | MIC® DX Tight-Buffered Armored Cable, Plenum 24 F, 50 µm multimode (OM2)

General Specifications

Product Number	024T88-33131-D3
EAN Code	4056418180137
Cable Type	Tight-Buffered
Environment	Indoor
Product Type	Dielectric armor
Fiber Category	50 µm MM (OM2)
Flame Rating	Plenum (OFNP)
Application	General purpose, Horizontal, Plenum
Cable geometry	Round

Standards

RoHS	Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings	National Electrical Code® (NEC®) OFNP, NFPA 262, CSA FT-6
Design and Test Criteria	ICEA S-83-596

Environmental Conditions

Temperature Range, Installation	0 °C to 60 °C (32 °F to 140 °F )
Temperature Range, Operation	0 °C to 70 °C (32 °F to 158 °F )
Temperature Range, Storage	-40 °C to 70 °C (-40 °F to 158 °F )

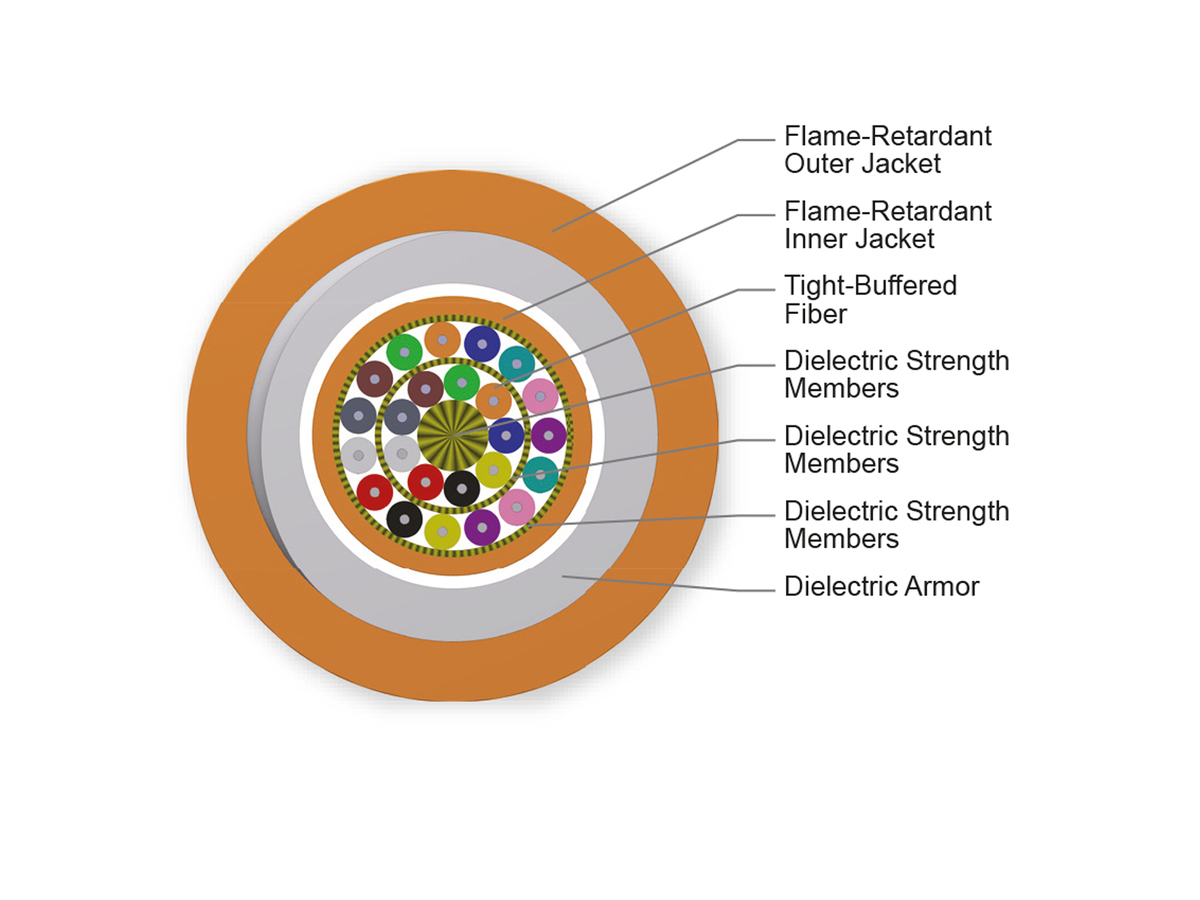

Cable Design

Fiber Count	24
Outer Jacket Color	Orange
Outer Jacket Material	Flame-retardant
Tensile Strength Elements and/or Armoring - Layer 1	Dielectric strength members
Tensile Strength Elements and/or Armoring - Layer 2	Dielectric strength members
Inner Jacket Material	Flame-retardant
Tensile Strength Elements and/or Armoring - Layer 3	Dielectric armor
Tight Buffer Color	Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow
Tight Buffer Color, Layer 2	Violet, Rose, Aqua, Blue, Orange, Green, Brown, Slate, White , Red, Black, Yellow, Violet, Rose, Aqua
Flame Rating	Plenum (OFNP)

Mechanical Specifications

Max. Tensile Strength, Long-Term	867 N
Max. Tensile Strength, Short-Term	2600 N
Min. Bend Radius Installation	197 mm
Min. Bend Radius Operation	131 mm
Nominal Inner Cable Diameter	6.8 mm
Nominal Outer Diameter	13.1 mm

Dimensions

Cable Weight

1887 kg/km

Dielectric armor

Four times crush protection compared to unarmored

TBII buffered fibers

Easy, consistent stripping

Flame-retardant jacket

Rugged and durable

Easy armor removal

Increased safety and speed at installation
