144FR4-T3101A20
ALTOS® Loose Tube Outdoor Duct Cable LT 2.3 12x12 E10 LEAF® ITU G655
Especificaciones generales
| Número del producto | 144FR4-T3101A20 |
| Cable Type | Loose Tube |
| Environment | Outdoor |
| Product Type | Dielectric |
| Fiber Category | SM NZ-DSF (G.655) |
| Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) | A-DQ(ZN)2Y |
| Application | Duct |
| Cable geometry | Round |
Standards
| Fiber Standards | ITU-T G.655 (all tables), IEC 60793-2-50 Type B4, TIA/EIA-492-EA00, Telcordia GR-20 |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Waterblocking | IEC 60794-1-2 F5 |
Environmental Conditions
| Temperature Range, Installation | -5 °C a 50 °C (23 °F a 122 °F ) |
| Temperature Range, Operation | -30 °C a 70 °C (-22 °F a 158 °F ) |
| Temperature Range, Storage | -40 °C a 70 °C (-40 °F a 158 °F ) |

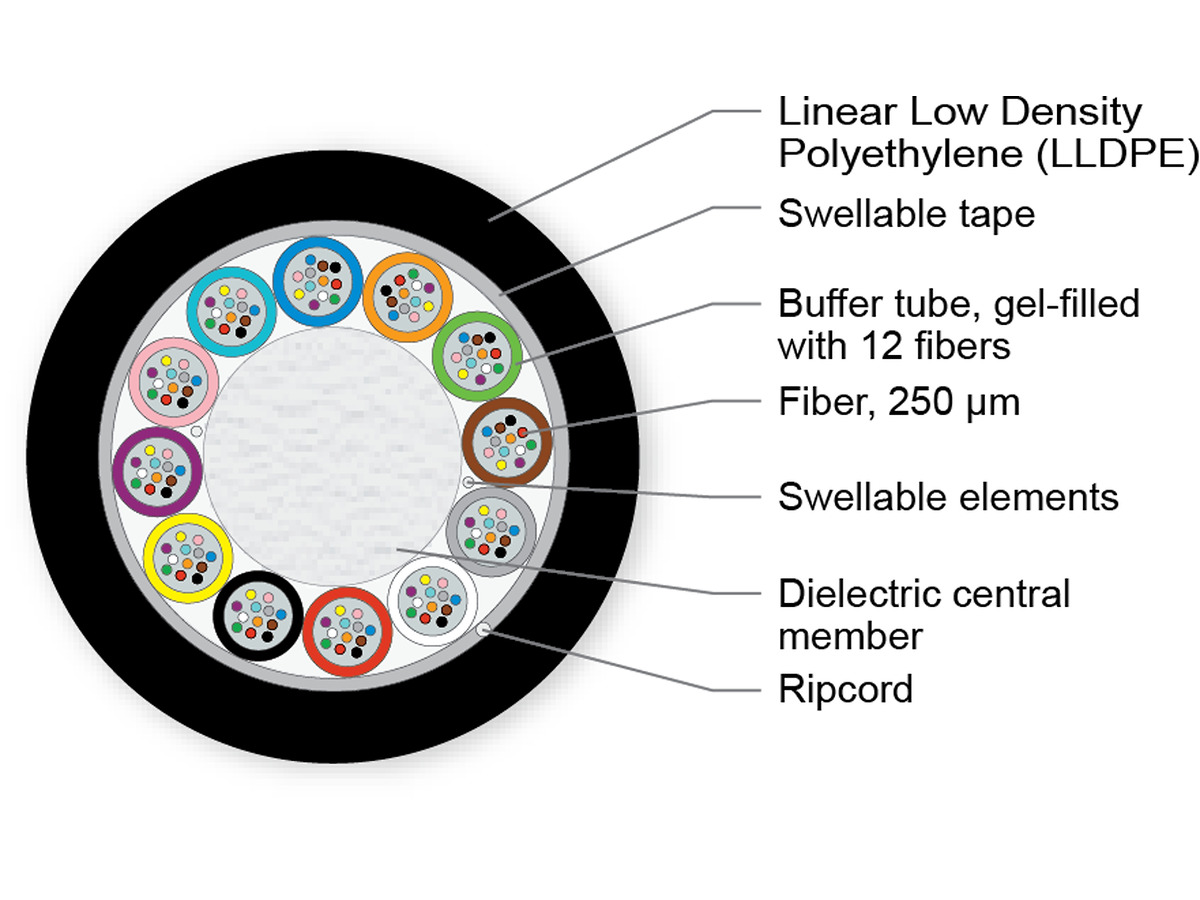

Cable Design
| Cable Marking | Meter - Handset - Sine - CORNING - Year -ALTOS (R) A-DQ(ZN)2Y 12X12 E10 LT 2.3 |
| Central Element | Dielectric with Polyethylene coating |
| Fiber Count | 144 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Linear Low Density Polyethylene (LLDPE) |
| Outer Jacket Nominal Thickness | 1.5 mm |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Buffer Tube Diameter | 2.25 mm |
| Central Element Diameter | 6.9 mm |
| Number of Active Tubes | 12 |
| Number of Tube Positions | 12 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Color Code Standards | Telcordia |
Mechanical Specifications
| Crush Resistance | 2000 N/10 cm |
| Max. Tensile Strength for Installation | 2700 N |
| Min. Bend Radius Installation | 260 mm |
| Min. Bend Radius Operation | 225 mm |
| Nominal Outer Diameter | 14.9 mm |
Dimensions
| Cable Weight | 165 kg/km |
| Max. cable length per reel/drum | 6000 m |
Estructura totalmente dieléctrica
No requiere conexión a tierra ni conexión
UV y resistente a los microbios
Se puede instalar en conductos o conductos
Tecnología impermeable
Aplicaciones externas (OSP)
Fibras tubos / tampón código de colores para Telcordia-Bellcore
Fácil identificación de los tubos individuales y fibras
Núcleo del cable en seco por medio de elementos hinchables en agua
Permite la preparación eficiente y amigable nave cable en aplicaciones al aire libre
