024T81-33191-24

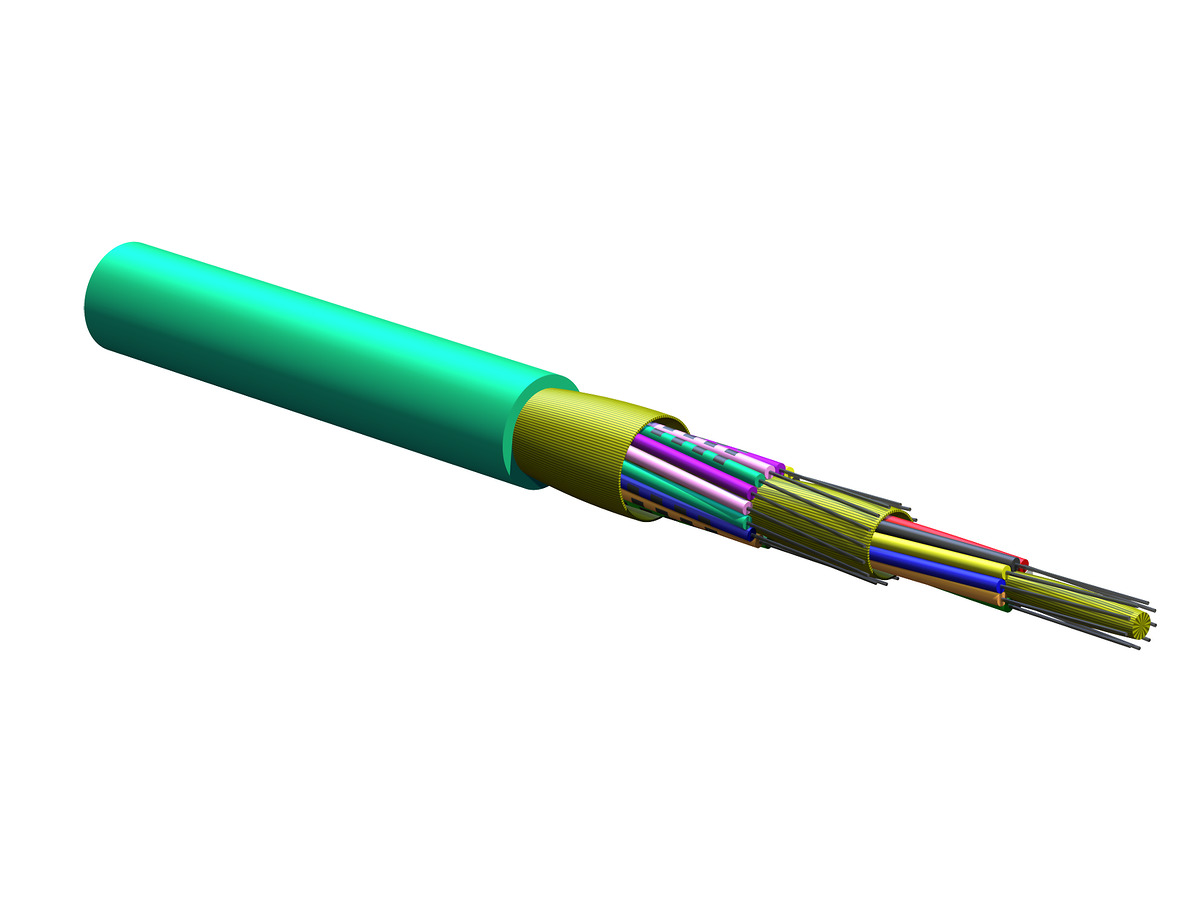

MIC® Tight-Buffered Cable, Riser 24 F, 50 µm multimode, extended 10G distance (OM4)
Especificações gerais
| Número do produto | 024T81-33191-24 |
| Código EAN | 4056418149141 |
| Cable Type | Tight-Buffered |
| Environment | Indoor |
| Product Type | Distribution |
| Fiber Category | 50 µm MM (OM4+) |
| Flame Rating | Riser (OFNR) |
| Application | General purpose, Horizontal, Vertical Riser |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code® (NEC®) OFNR, UL-1666, CSA FT-4 |
| Design and Test Criteria | ICEA S-83-596 |
Environmental Conditions
| Temperature Range, Installation | -10 °C para 60 °C (14 °F para 140 °F ) |
| Temperature Range, Operation | -20 °C para 70 °C (-4 °F para 158 °F ) |
| Temperature Range, Storage | -40 °C para 70 °C (-40 °F para 158 °F ) |

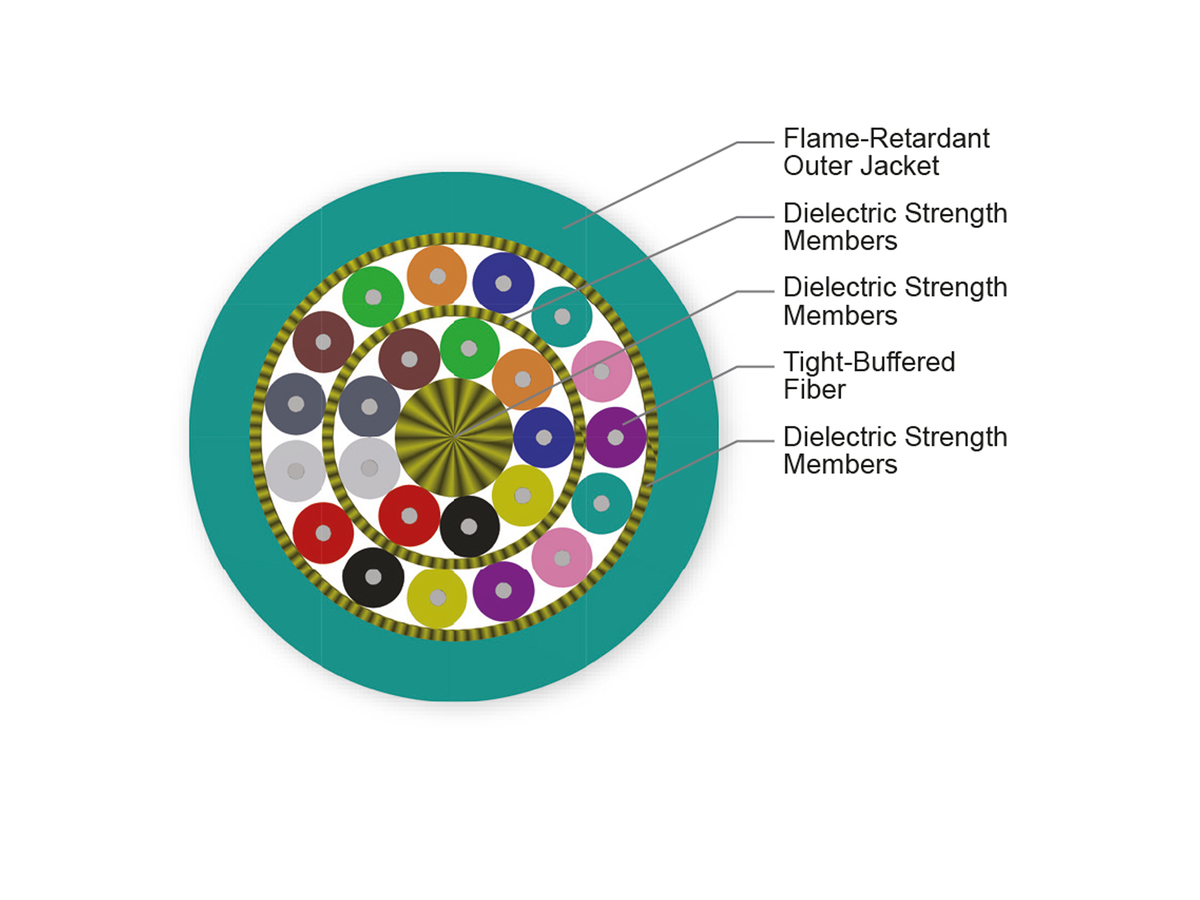

Cable Design
| Central Element | Yarn |
| Fiber Count | 24 |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow |
| Flame Rating | Riser (OFNR) |
Mechanical Specifications
| Max. Tensile Strength, Long-Term, ≤12F | 200 N |
| Max. Tensile Strength, Long-Term, >12F | 400 N |
| Max. Tensile Strength, Short-Term, ≤12F | 660 N |
| Max. Tensile Strength, Short-Term, >12F | 1320 N |
| Min. Bend Radius Installation | 110.25 mm |
| Min. Bend Radius Operation | 73.5 mm |
| Nominal Outer Diameter | 7.35 mm |
Dimensions
| Cable Weight | 47 kg/km |
Fibras com buffer de 900 µm
Decapagem fácil e consistente
Estrutura totalmente dielétrica
Não exige aterramento ou conexão
Revestimento retardante de chamas
Resistente e durável
