036EUB-T4101D20
General Specifications
| Product Number | 036EUB-T4101D20 |
| Installation Methods | Aerial |
| Cable Type | Loose Tube |
| Environment | Outdoor |
| Product Type | Self-Supporting, Figure-8 |
| Fiber Category | Single-mode (OS2) |
| Cable geometry | Other |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor self-supporting aerial |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
Environmental Conditions
| Notes | Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results. |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

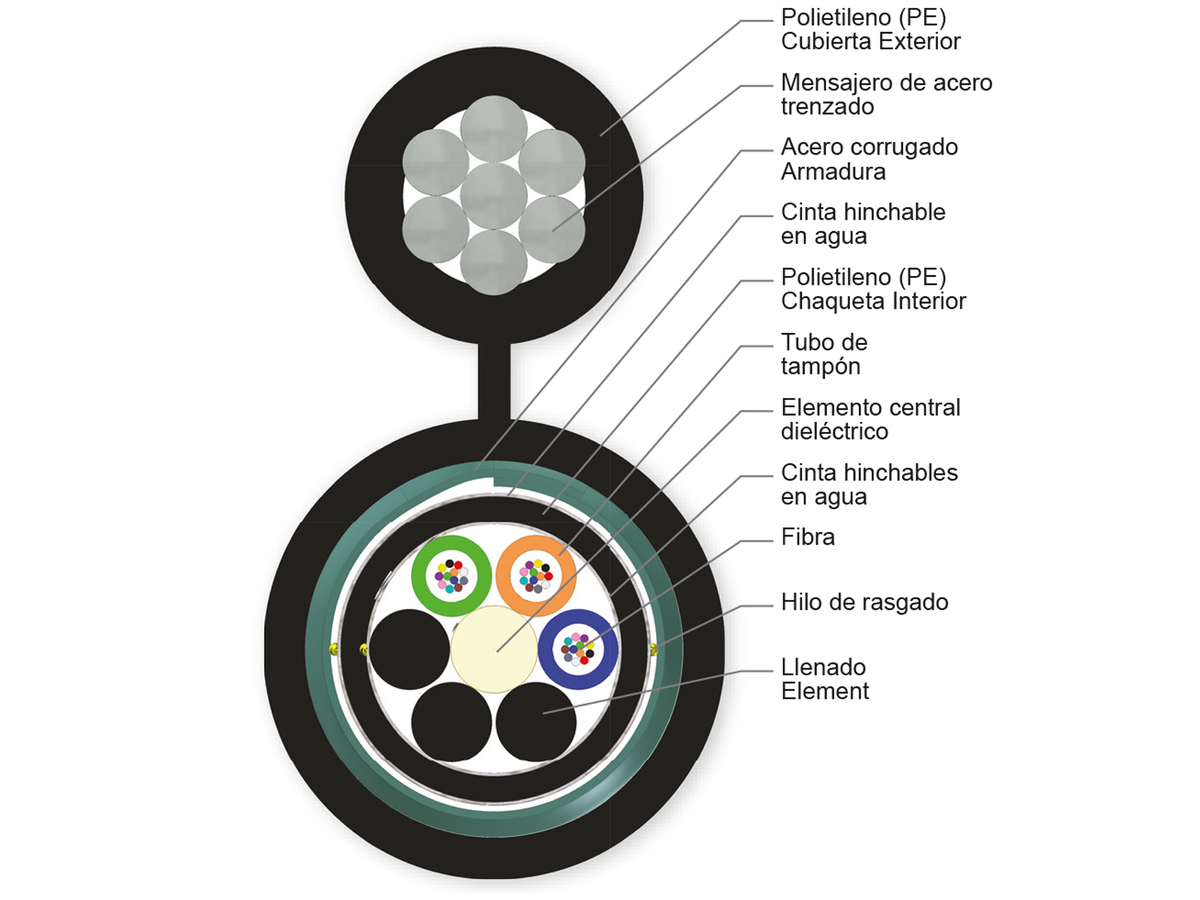

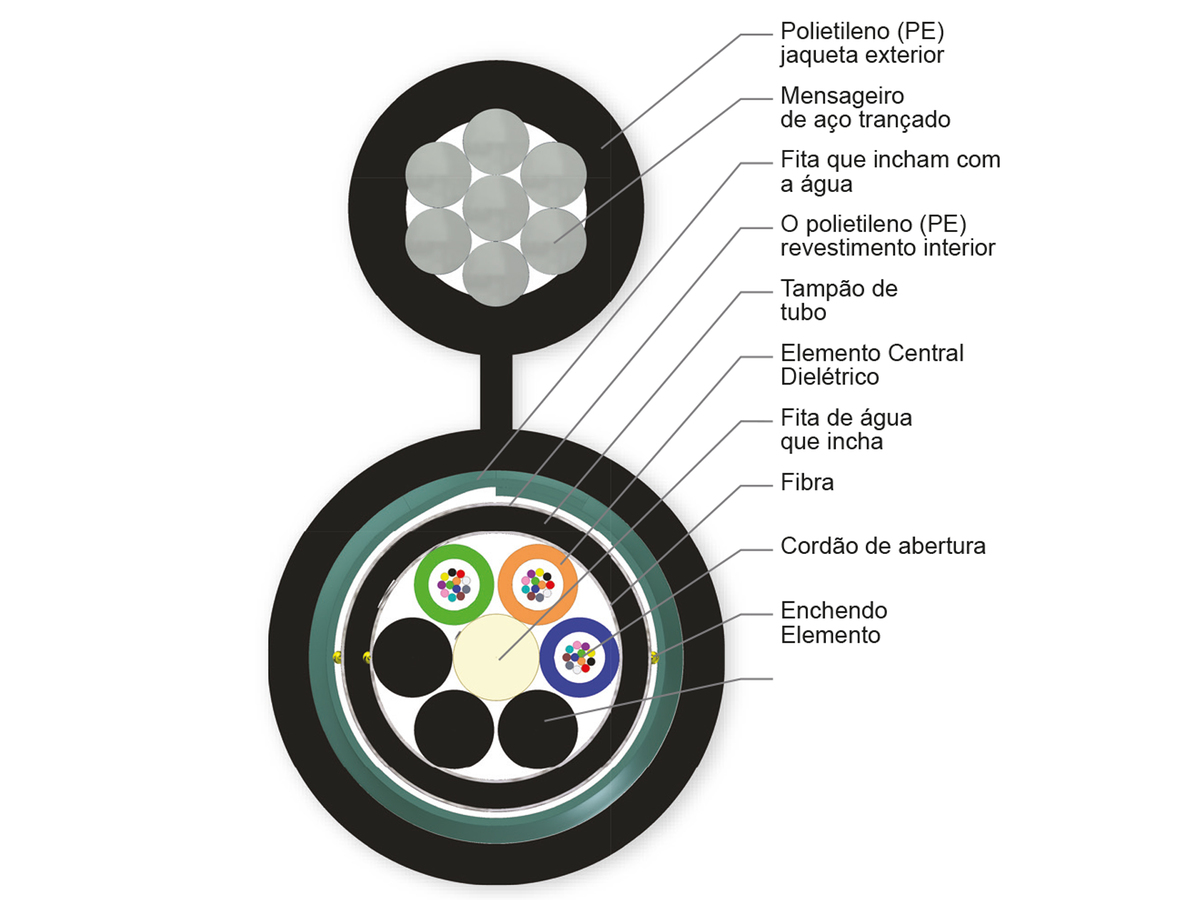

Projeto do cabo
| Elemento central | Dielétrico |
| Contagem da fibra | 36 |
| Número de fios de rasgamento | 3 |
| Cor da capa externa | Preto |
| Material da capa externa | Polietileno (PE) |
| Elementos e/ou armadura de resistência à tração - Camada 1 | Blindagem de fita de aço corrugado |
| Color del tubo de buffer | Azul, Naranja, Verde |
| Diámetro del tubo de buffer | 2,5 mm |
| Material de la chaqueta interna | Polietileno (PE) |
| Mensajero | Acero trenzado |
| Número de tubos activos | 3 |
| Number of Filling Elements | 3 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Color Code Standards | Telcordia |
Especificações mecânicas
| Altura nominal do cabo | 25,9 mm |
| Diâmetro externo nominal | 14,3 mm |
| Min. Bend Diameter Installation | 430 mm |
| Min. Bend Diameter Operation | 286 mm |
Dimensions
| Cable Weight | 396 kg/km |
Gel-free waterblocking technology
Craft-friendly cable preparation
Polyethylene jacket
Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
Figure-8 cable design
Easy, one-step installation
