048TAE-T4E31A20

Cabo loose tube ADSS SOLO®, preenchido com gel, dupla capa Cabo loose tube ADSS SOLO®, preenchido com gel, dupla capa

Specifications

General Specifications

Product Number	048TAE-T4E31A20
Tipo de cabo	Loose Tube
Ambiente	Externo
Tipo de produto	Autoportante, ADSS
Categoria da fibra	50 µm MM (OM2)
Geometria do cabo	Outro

Normas

RoHS	Livre de substâncias perigosas de acordo com RoHS 2011/65/EU
Aprovações e listas	Programas de desenvolvimento rural do USDA
Instalações comuns	Aéreo auto-sustentado externo
Projeto e critérios de teste	ANSI/ICEA S-87-640

Condições ambientais

Faixa de temperatura, instalação	-30 °C to 70 °C (-22 °F to 158 °F )
Faixa de temperatura, operação	-40 °C to 70 °C (-40 °F to 158 °F )
Faixa de temperatura, armazenamento	-40 °C to 75 °C (-40 °F to 167 °F )

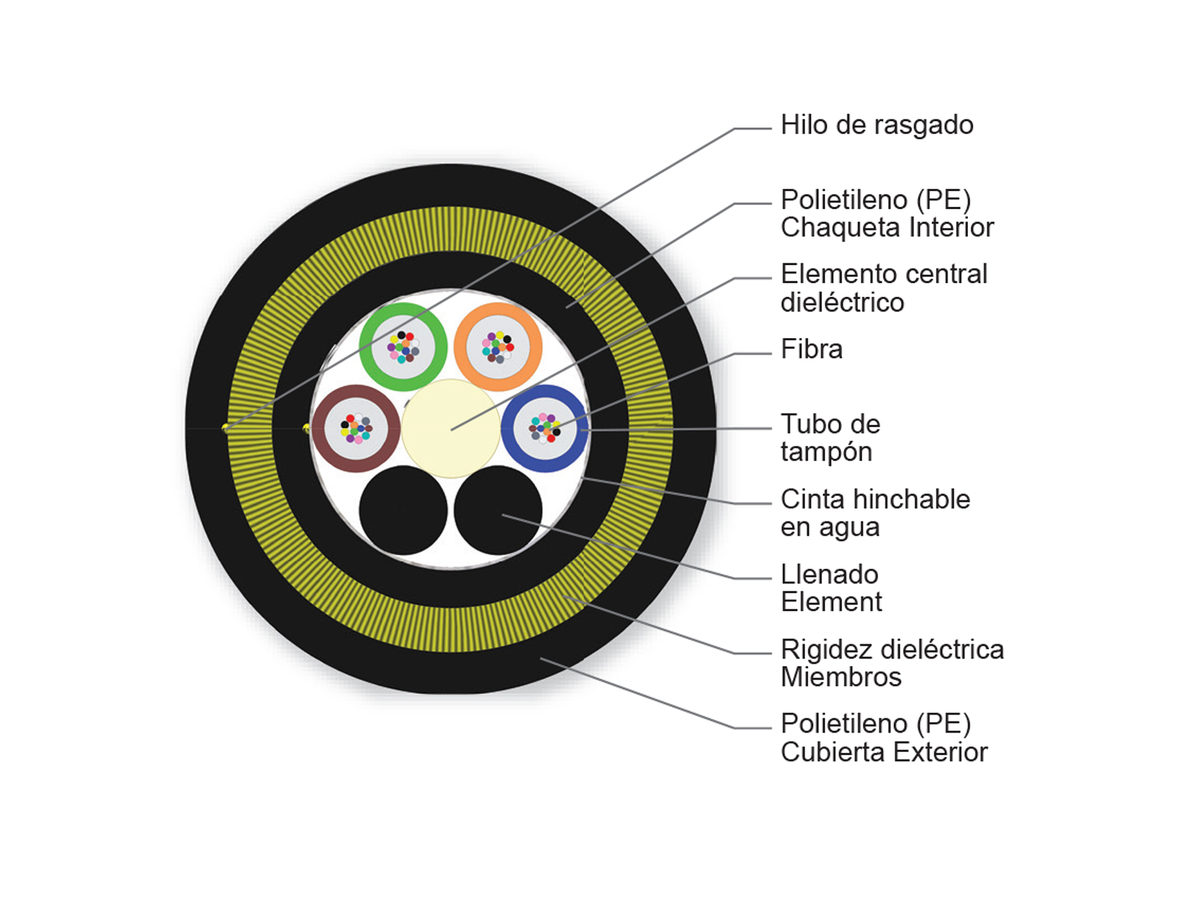

Projeto do cabo

Elemento central	Dielétrico
Contagem da fibra	48
Número de fios de rasgamento	3
Cor da capa externa	Preto
Material da capa externa	Polietileno (PE)
Elementos e/ou armadura de resistência à tração - Camada 1	Membros de rigidez dielétrica
Cor do tubo de buffer	Azul, Laranja, Verde, Marrom
Diâmetro do tubo de buffer	2,85 mm
Material da capa interna	Polietileno (PE)
Número de tubos ativos	4
Número de elementos de enchimento	2
Número de posições do tubo	6
Fita	Expansível em água
Coloração da fibra	Azul, Laranja, Verde, Marrom, Ardósia, Branco, Vermelho, Preto, Amarelo, Violeta, Rosa, Verde-água
Fibras por tubo	12
Color Code Standards	Telcordia

Especificações mecânicas

Diâmetro externo nominal	17,1 mm
Código de vão	4
Min. Bend Diameter Installation	514 mm
Min. Bend Diameter Operation	342 mm

Optical Characteristics

Fiber Code	T
Performance Option Code	31
Fiber Category	OM2
Fiber Type	Multimode
Fiber Name	50 µm MM (OM2)
Maximum Attenuation	3.0 dB/km / 1.0 dB/km
Wavelengths	850 nm / 1300 nm
Fiber Compliance	IEC 60793-2-10
Fiber Core Diameter	50 µm
Serial 1 Gigabit Ethernet	750 m / 600 m
Serial 10 Gigabit Ethernet	150 m / -
Minimum Effective Modal Bandwidth (EMB)	950 MHz*km / -
Min. Overfilled Launch (OFL) Bandwidth	700 MHzkm / 500 MHzkm

Dimensões

Peso do Cabo

212 kg/km

Installation Conditions

Span	Initial Installation		NESC Light		NESC Medium		NESC Heavy
Span	SAG	Tension	SAG	Tension	SAG	Tension	SAG	Tension
15 m (49.2 ft)	1 %	395 N (88.8 lbf)	0.6 %	728 N (163.7 lbf)	1.7 %	965 N (216.9 lbf)	2 %	1,522 N (342.2 lbf)
30 m (98.4 ft)	1 %	790 N (177.6 lbf)	0.6 %	1,414 N (317.9 lbf)	1.8 %	1,845 N (414.8 lbf)	2.2 %	2,831 N (636.4 lbf)
46 m (150.9 ft)	1 %	1,185 N (266.4 lbf)	0.6 %	2,069 N (465.1 lbf)	1.8 %	2,669 N (600 lbf)	2.3 %	4,020 N (903.7 lbf)
61 m (200.1 ft)	1 %	1,580 N (355.2 lbf)	0.6 %	2,700 N (607 lbf)	1.9 %	3,451 N (775.8 lbf)	2.4 %	5,126 N (1,152.4 lbf)
76 m (249.3 ft)	1 %	1,975 N (444 lbf)	0.7 %	3,312 N (744.6 lbf)	1.9 %	4,202 N (944.6 lbf)	2.5 %	6,172 N (1,387.5 lbf)
91 m (298.5 ft)	1 %	2,370 N (532.8 lbf)	0.7 %	3,908 N (878.5 lbf)	2 %	4,926 N (1,107.4 lbf)	2.6 %	7,172 N (1,612.3 lbf)
107 m (351 ft)	1 %	2,765 N (621.6 lbf)	0.7 %	4,491 N (1,009.6 lbf)	2 %	5,629 N (1,265.5 lbf)	2.7 %	8,133 N (1,828.4 lbf)
122 m (400.2 ft)	1 %	3,160 N (710.4 lbf)	0.7 %	5,063 N (1,138.2 lbf)	2.1 %	6,313 N (1,419.2 lbf)	2.7 %	9,063 N (2,037.4 lbf)
137 m (449.4 ft)	1 %	3,555 N (799.2 lbf)	0.7 %	5,624 N (1,264.3 lbf)	2.1 %	6,982 N (1,569.6 lbf)	2.8 %	9,965 N (2,240.2 lbf)
152 m (498.6 ft)	1 %	3,950 N (888 lbf)	0.7 %	6,176 N (1,388.4 lbf)	2.1 %	7,638 N (1,717.1 lbf)	2.9 %	10,845 N (2,438.1 lbf)
168 m (551 ft)	1 %	4,345 N (976.8 lbf)	0.7 %	6,721 N (1,510.9 lbf)	2.2 %	8,281 N (1,861.6 lbf)	2.9 %	11,704 N (2,631.2 lbf)
183 m (600.2 ft)	1 %	4,740 N (1,065.6 lbf)	0.7 %	7,258 N (1,631.7 lbf)	2.2 %	8,913 N (2,003.7 lbf)	3 %	12,545 N (2,820.2 lbf)
198 m (649.4 ft)	1 %	5,134 N (1,154.2 lbf)	0.7 %	7,790 N (1,751.3 lbf)	2.2 %	9,536 N (2,143.8 lbf)	3 %	13,370 N (3,005.7 lbf)
213 m (698.6 ft)	1 %	5,529 N (1,243 lbf)	0.7 %	8,315 N (1,869.3 lbf)	2.3 %	10,149 N (2,281.6 lbf)	3.1 %	14,180 N (3,187.8 lbf)
229 m (751.1 ft)	1 %	5,924 N (1,331.8 lbf)	0.7 %	8,835 N (1,986.2 lbf)	2.3 %	10,755 N (2,417.8 lbf)	3.1 %	14,977 N (3,367 lbf)
244 m (800.3 ft)	1 %	6,319 N (1,420.6 lbf)	0.7 %	9,350 N (2,102 lbf)	2.3 %	11,354 N (2,552.5 lbf)	3.2 %	15,762 N (3,543.4 lbf)
259 m (849.5 ft)	1 %	6,714 N (1,509.4 lbf)	0.8 %	9,861 N (2,216.8 lbf)	2.3 %	11,945 N (2,685.3 lbf)	3.2 %	16,535 N (3,717.2 lbf)
274 m (898.7 ft)	1 %	7,109 N (1,598.2 lbf)	0.8 %	10,368 N (2,330.8 lbf)	2.4 %	12,531 N (2,817.1 lbf)	3.3 %	17,299 N (3,889 lbf)
290 m (951.2 ft)	1 %	7,504 N (1,687 lbf)	0.8 %	10,871 N (2,443.9 lbf)	2.4 %	13,110 N (2,947.2 lbf)	3.3 %	18,052 N (4,058.2 lbf)
305 m (1,000.4 ft)	1 %	7,899 N (1,775.8 lbf)	0.8 %	11,370 N (2,556.1 lbf)	2.4 %	13,685 N (3,076.5 lbf)	3.3 %	18,797 N (4,225.7 lbf)
320 m (1,049.6 ft)	1 %	8,294 N (1,864.6 lbf)	0.8 %	11,866 N (2,667.6 lbf)	2.4 %	14,254 N (3,204.4 lbf)	3.4 %	19,534 N (4,391.4 lbf)
335 m (1,098.8 ft)	1 %	8,689 N (1,953.4 lbf)	0.8 %	12,358 N (2,778.2 lbf)	2.4 %	14,818 N (3,331.2 lbf)	3.4 %	20,262 N (4,555.1 lbf)
351 m (1,151.3 ft)	1 %	9,084 N (2,042.2 lbf)	0.8 %	12,848 N (2,888.3 lbf)	2.5 %	15,378 N (3,457.1 lbf)	3.4 %	20,984 N (4,717.4 lbf)
366 m (1,200.5 ft)	1 %	9,479 N (2,131 lbf)	0.8 %	13,335 N (2,997.8 lbf)	2.5 %	15,934 N (3,582.1 lbf)	3.5 %	21,698 N (4,877.9 lbf)
381 m (1,249.7 ft)	1 %	9,874 N (2,219.8 lbf)	0.8 %	13,820 N (3,106.9 lbf)	2.5 %	16,486 N (3,706.2 lbf)	3.5 %	22,406 N (5,037.1 lbf)
396 m (1,298.9 ft)	1 %	10,269 N (2,308.6 lbf)	0.8 %	14,302 N (3,215.2 lbf)	2.5 %	17,034 N (3,829.4 lbf)	3.5 %	23,108 N (5,194.9 lbf)
411 m (1,348.1 ft)	1 %	10,664 N (2,397.4 lbf)	0.8 %	14,781 N (3,322.9 lbf)	2.5 %	17,578 N (3,951.7 lbf)	3.6 %	23,804 N (5,351.4 lbf)
427 m (1,400.6 ft)	1 %	11,059 N (2,486.2 lbf)	0.8 %	15,259 N (3,430.4 lbf)	2.5 %	18,119 N (4,073.3 lbf)	3.6 %	24,494 N (5,506.5 lbf)
442 m (1,449.8 ft)	1 %	11,454 N (2,575 lbf)	0.8 %	15,734 N (3,537.1 lbf)	2.6 %	18,657 N (4,194.3 lbf)	3.6 %	25,179 N (5,660.5 lbf)
457 m (1,499 ft)	1 %	11,849 N (2,663.8 lbf)	0.8 %	16,208 N (3,643.7 lbf)	2.6 %	19,192 N (4,314.5 lbf)	3.6 %	25,859 N (5,813.3 lbf)
472 m (1,548.2 ft)	1 %	12,244 N (2,752.6 lbf)	0.8 %	16,679 N (3,749.6 lbf)	2.6 %	19,724 N (4,434.1 lbf)	3.7 %	26,535 N (5,965.3 lbf)
488 m (1,600.6 ft)	1 %	12,639 N (2,841.4 lbf)	0.8 %	17,149 N (3,855.2 lbf)	2.6 %	20,253 N (4,553.1 lbf)	3.7 %	27,205 N (6,115.9 lbf)
503 m (1,649.8 ft)	1 %	13,034 N (2,930.2 lbf)	0.8 %	17,617 N (3,960.5 lbf)	2.6 %	20,780 N (4,671.5 lbf)	3.7 %	27,871 N (6,265.6 lbf)
518 m (1,699 ft)	1 %	13,429 N (3,019 lbf)	0.8 %	18,083 N (4,065.2 lbf)	2.6 %	21,304 N (4,789.3 lbf)	3.7 %	28,533 N (6,414.5 lbf)
533 m (1,748.2 ft)	1 %	13,824 N (3,107.8 lbf)	0.8 %	18,548 N (4,169.8 lbf)	2.6 %	21,826 N (4,906.7 lbf)	3.8 %	29,191 N (6,562.4 lbf)
549 m (1,800.7 ft)	1 %	14,219 N (3,196.6 lbf)	0.8 %	19,011 N (4,273.8 lbf)	2.7 %	22,345 N (5,023.4 lbf)	3.8 %	29,845 N (6,709.4 lbf)
564 m (1,849.9 ft)	1 %	14,614 N (3,285.4 lbf)	0.8 %	19,473 N (4,377.7 lbf)	2.7 %	22,862 N (5,139.6 lbf)	3.8 %	30,496 N (6,855.8 lbf)
579 m (1,899.1 ft)	1 %	15,008 N (3,373.9 lbf)	0.8 %	19,933 N (4,481.1 lbf)	2.7 %	23,377 N (5,255.4 lbf)	3.8 %	31,142 N (7,001 lbf)
594 m (1,948.3 ft)	1 %	15,403 N (3,462.7 lbf)	0.8 %	20,392 N (4,584.3 lbf)	2.7 %	23,889 N (5,370.5 lbf)	3.9 %	31,786 N (7,145.8 lbf)
610 m (2,000.8 ft)	1 %	15,798 N (3,551.5 lbf)	0.8 %	20,850 N (4,687.3 lbf)	2.7 %	24,400 N (5,485.3 lbf)	3.9 %	32,425 N (7,289.4 lbf)
625 m (2,050 ft)	1 %	16,193 N (3,640.3 lbf)	0.8 %	21,306 N (4,789.8 lbf)	2.7 %	24,909 N (5,599.8 lbf)	3.9 %	33,062 N (7,432.6 lbf)
640 m (2,099.2 ft)	1 %	16,588 N (3,729.1 lbf)	0.8 %	21,761 N (4,892.1 lbf)	2.7 %	25,416 N (5,713.8 lbf)	3.9 %	33,695 N (7,574.9 lbf)
655 m (2,148.4 ft)	1 %	16,983 N (3,817.9 lbf)	0.8 %	22,216 N (4,994.4 lbf)	2.7 %	25,921 N (5,827.3 lbf)	3.9 %	34,326 N (7,716.8 lbf)
671 m (2,200.9 ft)	1 %	17,378 N (3,906.7 lbf)	0.8 %	22,669 N (5,096.2 lbf)	2.7 %	26,424 N (5,940.4 lbf)	4 %	34,953 N (7,857.8 lbf)

Feature/Benefits

Loose tube design

Stable performance and compatibility with all common fiber types

Self-supporting

Easy, one-step installation

Track-resistant jacket available

Suitable for installations up to 25 kV electric field potential

Innovative waterblocking cable core

Provides efficient and craft-friendly cable preparation
