144EN4-T4S01A20

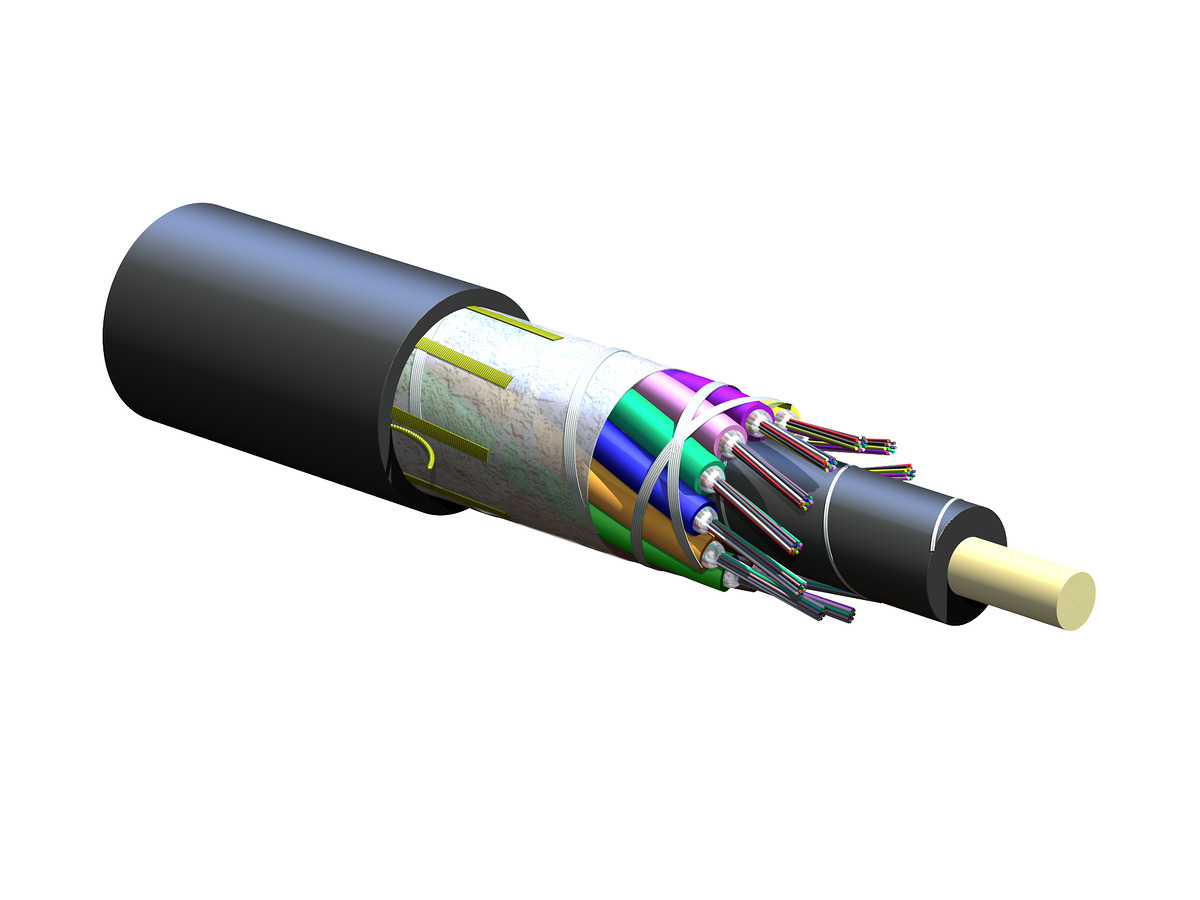

Cabo de curto alcance ADSS SOLO®, loose tube, preenchido com gel Cabo de curto alcance ADSS SOLO®, loose tube, preenchido com gel

Especificações gerais

Standards

RoHS	Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings	RDUP 7 CFR 1755.900 (formerly RUS)
Common Installations	Outdoor self-supporting aerial
Design and Test Criteria	ANSI/ICEA S-87-640

Environmental Conditions

Temperature Range, Installation	-30 °C para 70 °C (-22 °F para 158 °F )
Temperature Range, Operation	-40 °C para 70 °C (-40 °F para 158 °F )
Temperature Range, Storage	-40 °C para 70 °C (-40 °F para 158 °F )

Cable Design

Central Element	Dielectric
Fiber Count	144
Number of Ripcords	1
Buffer Tube Color Coding, Layer 1	Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Outer Jacket Color	Black
Outer Jacket Material	Polyethylene (PE)
Tensile Strength Elements and/or Armoring - Layer 1	Dielectric strength members
Buffer Tube Diameter	2.5 mm
Number of Active Tubes	12
Number of Tube Positions	12
Tape	Water-swellable
Fiber Coloring	Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube	12

Mechanical Specifications

Nominal Outer Diameter	16.1 mm
Min. Bend Diameter Installation	484 mm
Min. Bend Diameter Operation	322 mm

Dimensions

Cable Weight

196 kg/km

Installation Conditions

Span	Initial Installation		NESC Light		NESC Medium		NESC Heavy
Span	SAG	Tension	SAG	Tension	SAG	Tension	SAG	Tension
15 m	1 %	365 N	0,6 %	717 N	1,7 %	898 N	2,4 %	1.267 N
30 m	1 %	729 N	0,6 %	1.267 N	2 %	1.549 N	2,8 %	2.132 N
46 m	1 %	1.094 N	0,7 %	1.767 N	2,2 %	2.130 N	3,1 %	2.889 N
61 m	1 %	1.459 N	0,7 %	2.239 N	2,4 %	2.673 N	3,4 %	3.586 N
76 m	1 %	1.823 N	0,8 %	2.694 N	2,5 %	3.190 N	3,6 %	4.244 N
91 m	1 %	2.188 N	0,8 %	3.135 N	2,6 %	3.688 N	3,7 %	4.873 N
107 m	1 %	2.553 N	0,8 %	3.567 N	2,6 %	4.173 N	3,9 %	5.481 N
122 m	1 %	2.917 N	0,8 %	3.992 N	2,7 %	4.646 N	4 %	6.070 N
137 m	1 %	3.282 N	0,8 %	4.411 N	2,8 %	5.110 N
152 m	1 %	3.647 N	0,8 %	4.825 N	2,8 %	5.567 N
168 m	1 %	4.011 N	0,9 %	5.234 N	2,9 %	6.017 N
183 m	1 %	4.376 N	0,9 %	5.641 N
198 m	1 %	4.741 N	0,9 %	6.044 N

Loose tube design

Mechanical ruggedness and environmental durability

Self-supporting

Easy, one-step installation

Track-resistant polyethylene (TRPE) jacket available

Suitable for installations up to 25 kV electric field potential

Innovative waterblocking design

Provides efficient and craft-friendly cable preparation
