004301UB4FD100F-P

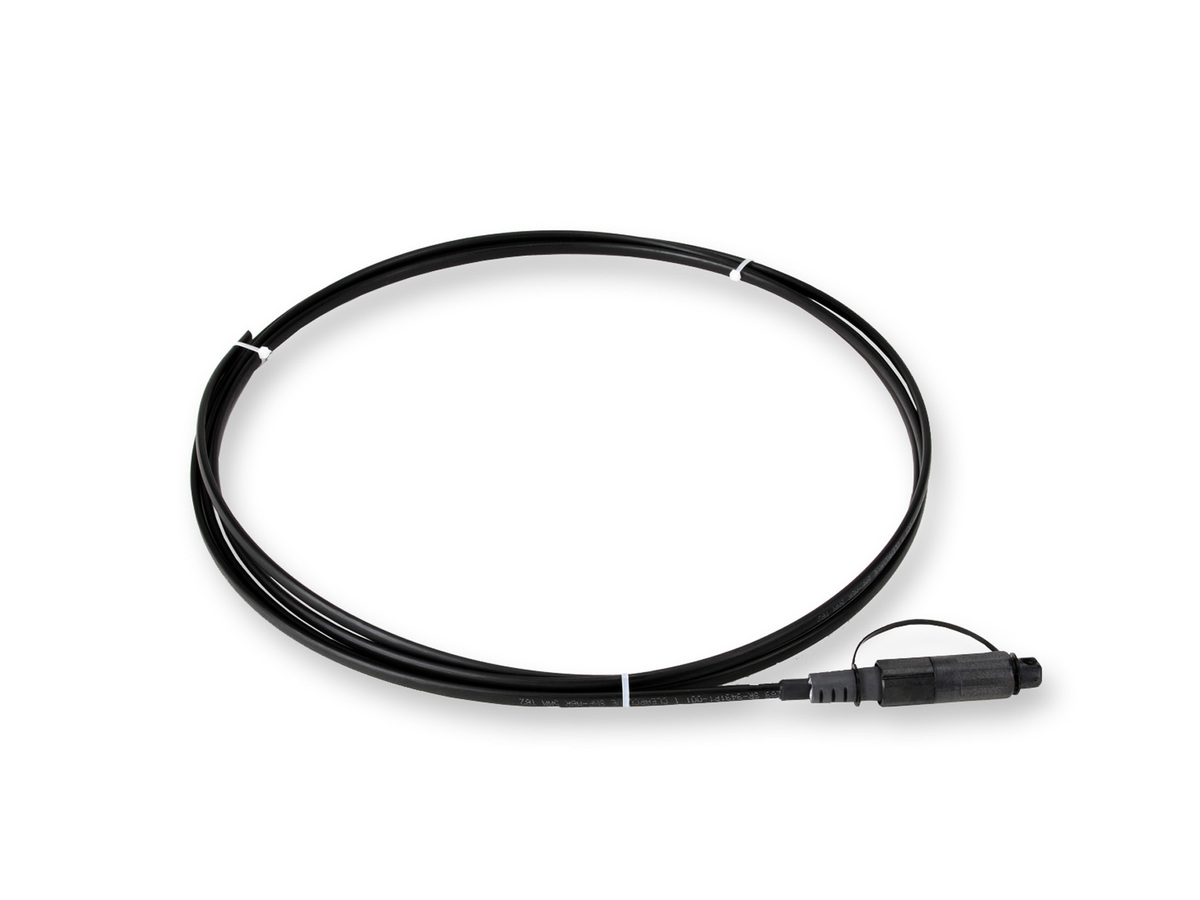

OptiTap® SST-Drop™ Indoor/Outdoor Cable Assembly, OptiTap to stub end, 1F, Dielectric, Gel-Free OptiTap® SST-Drop™ Indoor/Outdoor Cable Assembly, OptiTap to stub end, 1F, Dielectric, Gel-Free
General Specifications
| Product Number | 004301UB4FD100F-P |
| EAN Code | 4056418760285 |
| Categoría de la fibra | SM insensible a curvatura (OS2) |
| Tipo de montaje del cable | Conjuntos drop |
| Ambiente | Interno/externo |
| Application | Direct Buried, Aerial, Duct |
| Cable Type | SST-Drop™ Indoor/Outdoor Dielectric |
| Packaging | Individual Pack |
| Termination | One end |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | SST-Drop™ cable fully compliant with Telcordia GR-20 requirements |
| Design and Test Criteria | Telcordia GR-3120 |
Condiciones ambientales
| Rango de temperatura, funcionamiento | -40 °C to 70 °C (-40 °F to 158 °F ) |
Diseño
| Número de fibras | 1 |
| Tipo de fibra | Monomodo |
Especificaciones mecánicas
| Acoplamiento/Desacoplamiento en frío | -40 °C (-40 °F) |
| Tracción axial, clavija al cable, a través de la cubierta antipolvo | 100 lb in axial pull with load applied to the dust cap |
| Resistencia a la tracción axial en el acoplamiento clavija-adaptador | 50 lbs |
Optical Characteristics
| Fiber Code | U |
| Performance Option Code | 01 |
| Fiber Category | OS2 |
| Fiber Type | Single-mode (OS2) / 250 µm |
| Fiber Name | ClearCurve® ZBL |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.30 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.B3 |
| Fiber Core Diameter | 8.2 µm |
| Cladding diameter | 125 µm |
| Coating diameter | 242 µm |
| Dispersion @ 1550 nm | ≤ 18 [ps/(nm*km)] |
| Dispersion @ 1625 nm | ≤ 23 [ps/(nm*km)] |
| Cable cutoff wavelength | 1260 nm |
| Mode-Field Diameter at 1310 nm | 8.6 µm |
| Mode-Field Diameter at 1550 nm | 9.65 µm |
Especificaciones - Conector A
| Reflectancia, típica | ≤ -65 dB |
| Tipo de conector | Sin conector |
Especificaciones - Conector B
| Reflectancia, típica | -65 dB |
| Pérdida por inserción, típica | ≤ 0,15 dB |
| Tipo de conector | Conectores SC APC OptiTap® |
Dimensiones
| Longitud | 100 ft |
| Peso | 3,27 kg |
Ordering Information
| Packaging Method | Box |
| Units per Delivery | 1/1 |
| Shipping Height | 76 mm |
| Shipping Width | 508 mm |
| Shipping Depth | 508 mm |
OptiTap® connector technology
Industry standard for existing FTTx installations
Robust design keeps connector intact during installation
Integral pulling eye/connector cap designed for 100 lb maximum pulling tension
Flexible connector offerings
OptiTap® Connector SC APC or pigtailed versions to accommodate any ONT interface
Indoor/outdoor compact drop cable in standard SST-Drop cable design
Eliminates need for transition in indoor ONT
