008Z6J-32325E2G
FREEDM™ Breakout Tight Buffer Indoor/Outdoor Cable (2.0 mm) 8 F E9/125 SMF-28® ULTRA TB3, Dca-s1a,d1,a1
General Specifications
| Product Number | 008Z6J-32325E2G |
| Cable Type | Tight-Buffered |
| Environment | Indoor/Outdoor |
| Product Type | Dielectric armor |
| Fiber Category | SMF-28® Ultra 242 Optical Fiber |
| Flame Rating | LSZH/FRNC |
| Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) | UT-VQ(ZN)H(ZN)BH |
| Application | Duct, Vertical Riser, General purpose, Horizontal |
| Cable geometry | Round |
Standards
| Reaction to Fire | Dca, s1a, d1, a1 |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Waterblocking | IEC 60794-1-22 Method F5B |
| Flame propagation test | Flame retardant according to IEC 60332-1-2 (single cable) and IEC 60332-3-24 (bunch of cables) |
| Reaction to Fire Requirements | Reaction to fire according to EN 50575 and EN 13501-6 |
| Smoke density | Low smoke according to IEC 61034 |
| Halogen content test | Zero Halogen according to IEC 60754-1 |
| Level of corrosion | Non-corrosive according to IEC 60754-2 |
Environmental Conditions
| Temperature Range, Installation | -5 °C to 50 °C (23 °F to 122 °F ) |
| Temperature Range, Operation | -20 °C to 60 °C (-4 °F to 140 °F ) |
| Temperature Range, Storage | -25 °C to 70 °C (-13 °F to 158 °F ) |

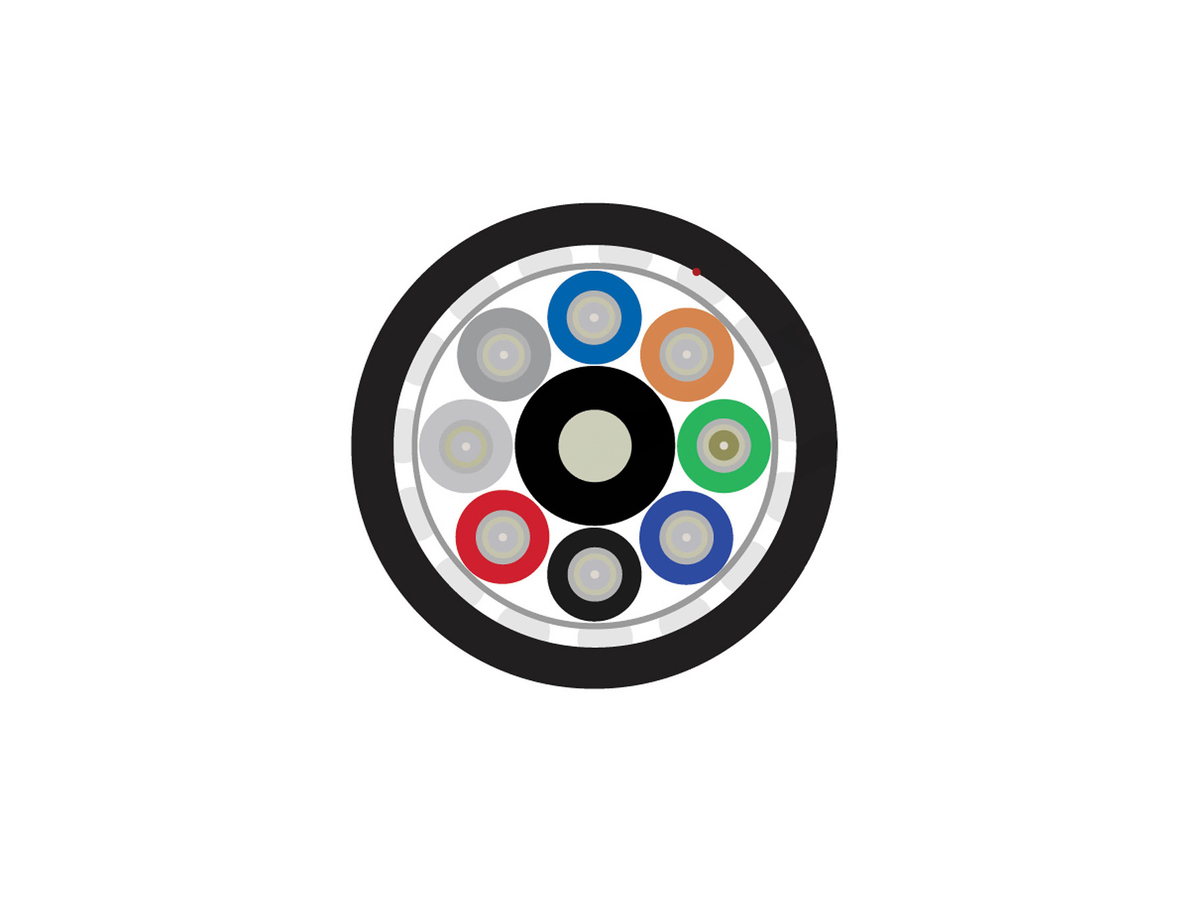

Cable Design
| Cable Marking | Metre - Handset - CE 17 EN 50575 Dca-s1a,d1,a1 - Sine - CORNING - Fiber Optic Cable - Year - FREEDM(TM) UT-VQ(ZN)H(ZN)BH 8 E9/125 TB3 2.0 LSZH(TM)/FRNC |
| Central Element | Dielectric with FRNC/LSZH coating |
| Fiber Count | 8 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Black |
| Buffering Diameter | 900 µm |
| Outer Jacket Material | Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material |
| Central Element Diameter | 3.4 mm |
| Outer Jacket Nominal Thickness | 1.2 mm |
| Tensile Strength Elements and/or Armoring - Layer 1 | Laminated glass yarn armor |
| Fibers per Subunit | 1 |
| Number of Subunits | 8 |
| Subunit Color | Gray with printed subunit number |
| Subunit Diameter | 2 mm |
| Subunit Jacket Material | Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material |
| Subunit Jacket Nominal Thickness | 0.35 mm |
| Subunit Tensile Strengths Elements Armoring | Aramid yarn strength members |
| Tape | Water-swellable |
| Tensile Strength Elements and/or Armoring | Laminated glass yarn armor |
| Tight Buffer Color Subunit | Yellow, White, White, White, White, White, White, White |
| Tight Buffer Color Subunit | Yellow, White, White, White, White, White, White, White |
| Tight Buffer Type | TB3 (easy strip up to 10 cm) |
| Flame Rating | LSZH/FRNC |
Mechanical Specifications
| Crush Resistance | 2000 N/10 cm |
| Crush Resistance (reversible), Outdoor Cable | 2000 N/10 cm |
| Fire Load | 1.97 MJ/m |
| Max. Tensile Strength for Installation | 2000 N |
| Min. Bend Radius Installation | 210 mm |
| Min. Bend Radius Operation | 160 mm |
| Nominal Outer Diameter | 10.6 mm |
Optical Characteristics
| Fiber Code | Z |
| Performance Option Code | 25 |
| Fiber Category | OS2 |
| Fiber Type | Single-mode (OS2) / 250 µm |
| Fiber Name | Bend-Improved Single-mode (OS2) |
| Maximum Attenuation | 0.38 dB/km / 0.38 dB/km / 0.25 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Fiber Core Diameter | 8.2 µm |
| Cladding diameter | 125 µm |
| Coating diameter | 242 µm |
| Dispersion @ 1550 nm | ≤ 18 [ps/(nm*km)] |
| Dispersion @ 1625 nm | ≤ 22 [ps/(nm*km)] |
| Cable cutoff wavelength | 1260 nm |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Mode-Field Diameter at 1550 nm | 10.4 µm |
| PMD Link Design Value | ≤ 0.04 ps/√km |
| PMD maximum individual fiber | ≤ 0.1 ps/√km |
Dimensions
| Cable Weight | 113 kg/km |
| Max. cable length per reel/drum | 2000 m |
Waterblocking technology
OSP (outdoor) applications
All-dielectric construction
Requires no grounding or bonding
UV- and microbe-resistant
Can be installed in ducts or conduits
Dry cable core by means of water-swellable tape and elements
Allows efficient and craft-friendly cable preparation in outdoor or indoor/outdoor applications
Laminated glass yarns
Improved rodent resistance
Small diameter and bend radius
Easy installation in space-constrained areas
TB3 tight buffered construction
Easy and consistent stripping over 10 cm
Flame retardant
LSZH/FRNC
