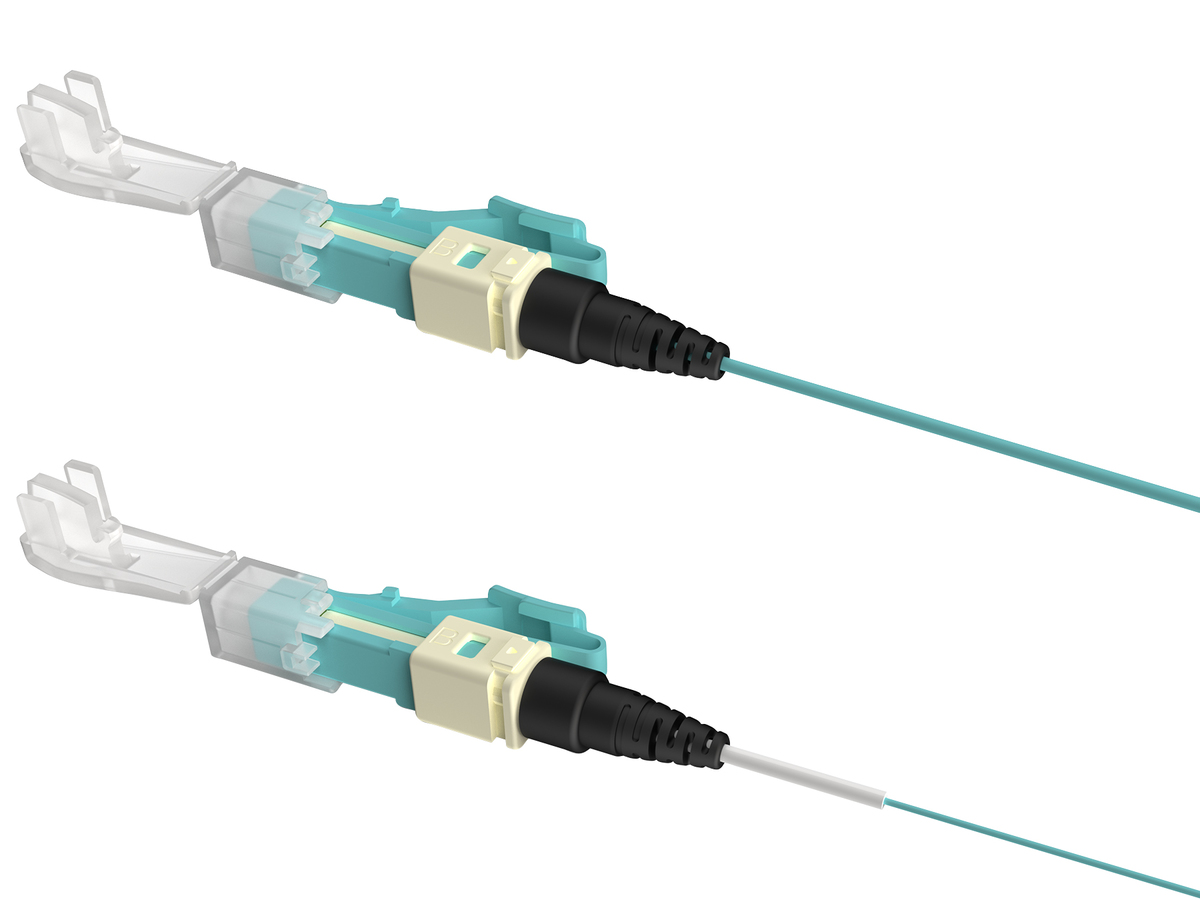

NPCP-LC-OM4-12
NPC+ (No Polish Connector) NPC+ LC/OM4/250/900 (12 pieces)
您可能还感兴趣
通用规范
| 产品编码 | NPCP-LC-OM4-12 |
| 光纤类别 | 50 µm 多模 (OM4) |
| 产品类型 | 现场安装连接器 |
| 技术 | 无胶水无研磨 |
标准
| RoHS | 无有害物质根据RoHS 2011/65/EU |
| 认证和产品 | In compliance with environmental and mechanical requirements of TIA/ EIA-568-D.3, GR-1081, Issue 1 section 4.3 yield, Insertion loss requirements of GR-1081-CORE, Issue 1 (GR-326-CORE, Issue 4) Thermal Cycle and Thermal Age; Back reflection performance was typical of an index gel-matched mechanical splice connector, Back reflection performance was typical of an index gel-matched mechanical splice connector |
环境条件
| 温度循环标准 | ≤ 0.3 dB IL, -40° to +75°C, 21 cycles |
| 温度范围，操作 | -10 °C - 60 °C (14 °F - 140 °F ) |
| 温度范围，存储 | -40 °C - 85 °C (-40 °F - 185 °F ) |
设计 - 连接器
| 连接器类型 | LC |
| 配线箱颜色 | 水蓝色 |
| 插芯材料 | Yttria-stabilized Zirconia |
机械规格 - 连接器
| 标称光纤外直径 | 125 µm |
| 耐久性 | ≤ 0.2 dB 500 插拔, FOTP-21 |
光学规格 - 连接器
| 研磨 | UPC |
| 插入损耗，最大 | 0.75 dB |
| 反射，典型的 | < -30 dB |
尺寸
| Weight | 88 g |
订购信息
| 包装内容物 | 12 piece box (12 individually packaged connectors in recyclable PET thermoformed containers). Minimum Order Quantity: 12 PCE |
| Shipping Weight | 1037 g |
| 每次交付的单元数 | 12/1 |
