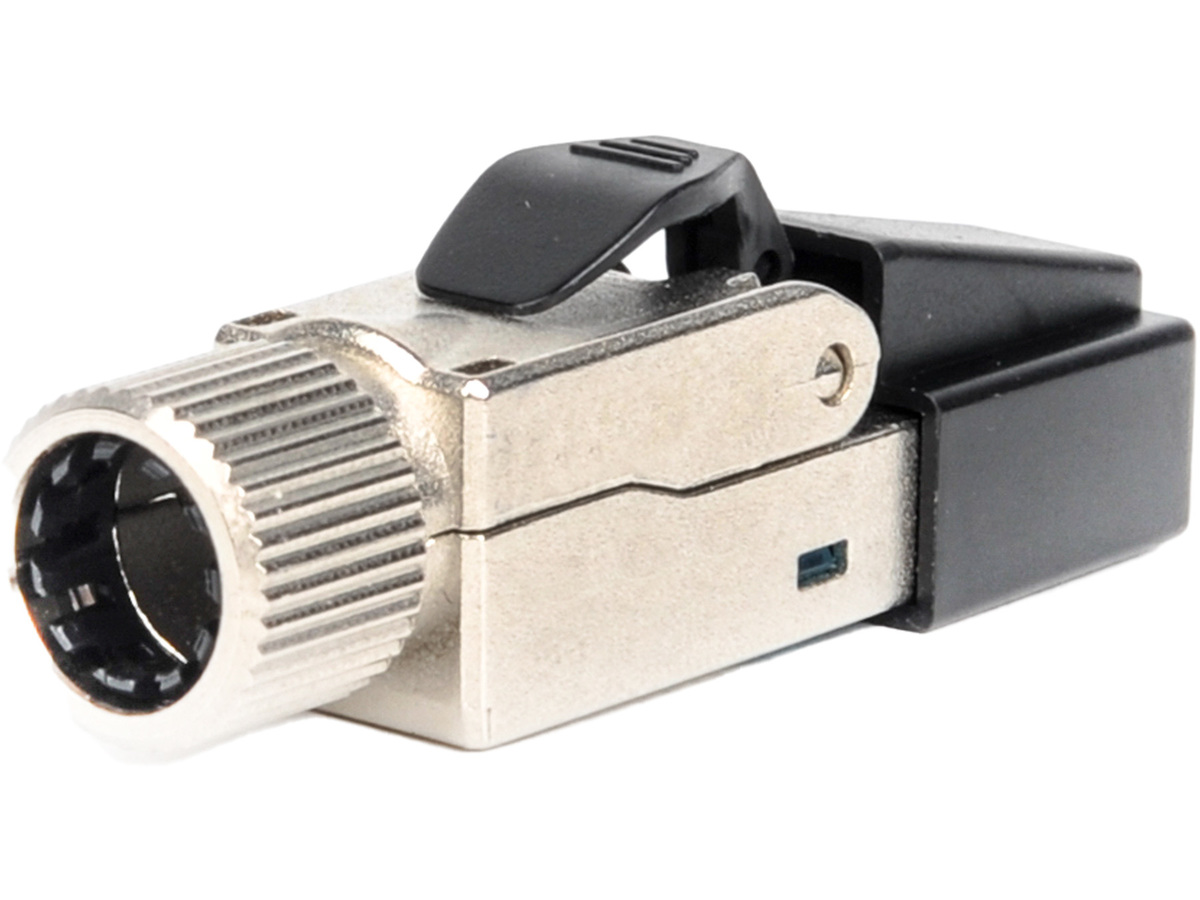

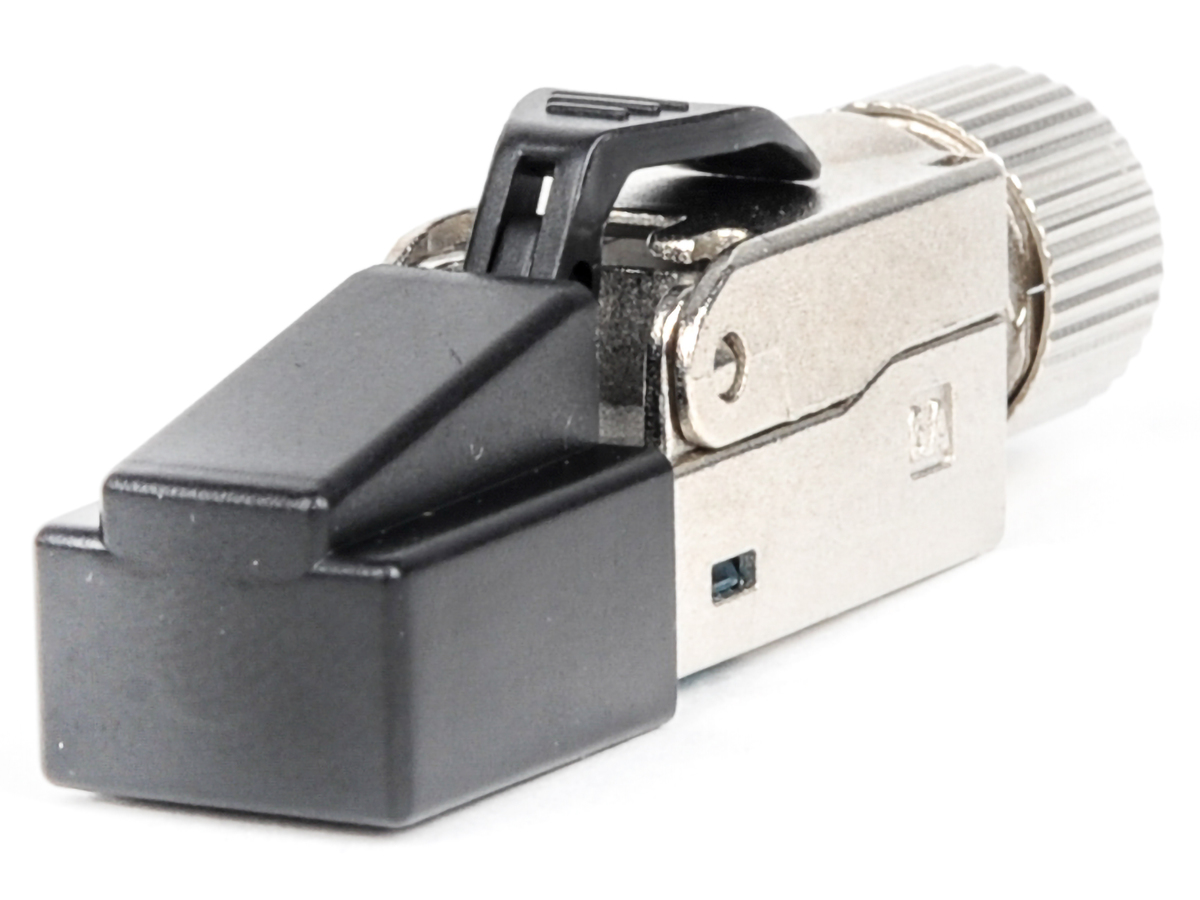

CAXASS-00100-C001
RJ45 feldkonfektionierbarer Stecker Kategorie 6A STP, gerade
General Specifications
| Product Number | CAXASS-00100-C001 |
| EAN Code | 4064394884048 |
| Kategorie | 6A |
| Halogenfrei | Ja |
| Bandwidth | 500 MHz |
Standards
| Flame Retardance | Class UL94 V-0 |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Transmission Performance Link | Class EA (ISO/IEC 11801 Ed. 2.2 2011) |
| Design and Test Criteria | IP20 |
| Corning Recommendations | Recommended cable diameter is 6 mm - 9 mm |
| Component Standard | IEC 60603-7-51 (Edition 1.0 2010)ANSI/TIA/EIA-568-B.2-10 |
Umgebungsbedingungen
| Halogenfrei | Ja |
| Temperaturbereich, Installation | -40 °C to 70 °C |
| Temperaturbereich, Betrieb | -25 °C to 50 °C |
| Temperaturbereich, Lagerung | -40 °C to 70 °C |
Design
| Kabelaufteilertyp | RJ45 - 8/8 |
| Gehäusematerial | Metall |
| Gehäusefarbe | Silber |
Elektrische Eigenschaften
| Widerstandsunsymmetrie DC | < 50 MΩ |
| Durchgangswiderstand DC | < 200 mΩ |
| Gleichspannungsfestigkeit (Leiter/Leiter) | ≥ 1000 V DC |
| Kontaktwiderstand Rd | 20 mΩ |
| Gleichspannungsfestigkeit (Leiter/Prüfplatte) | ≥ 1500 V DC |
| Isolationswiderstand | > 500 MΩ @ 100 VDC |
| Nennspannung (maximal) | Less than 50VAC / 75 VDC |
Dimensions
| Height | 147 mm |
| Width | 129 mm |
| Depth | 513 mm |
| Weight | 13 g |
Ordering Information
| Shipping Weight | 13 g |
| Units per Delivery | 50/1 |
Compliance with the new Class EA and IEEE 802.3an
Supports for PoE, PoE+ and 4PPoE applications
Providing easy and fast installation without tools
Re-termination possible for multiple usage
The connector can be used with flex wire cables AWG 23-27 and solid wire cables AWG 23-26
