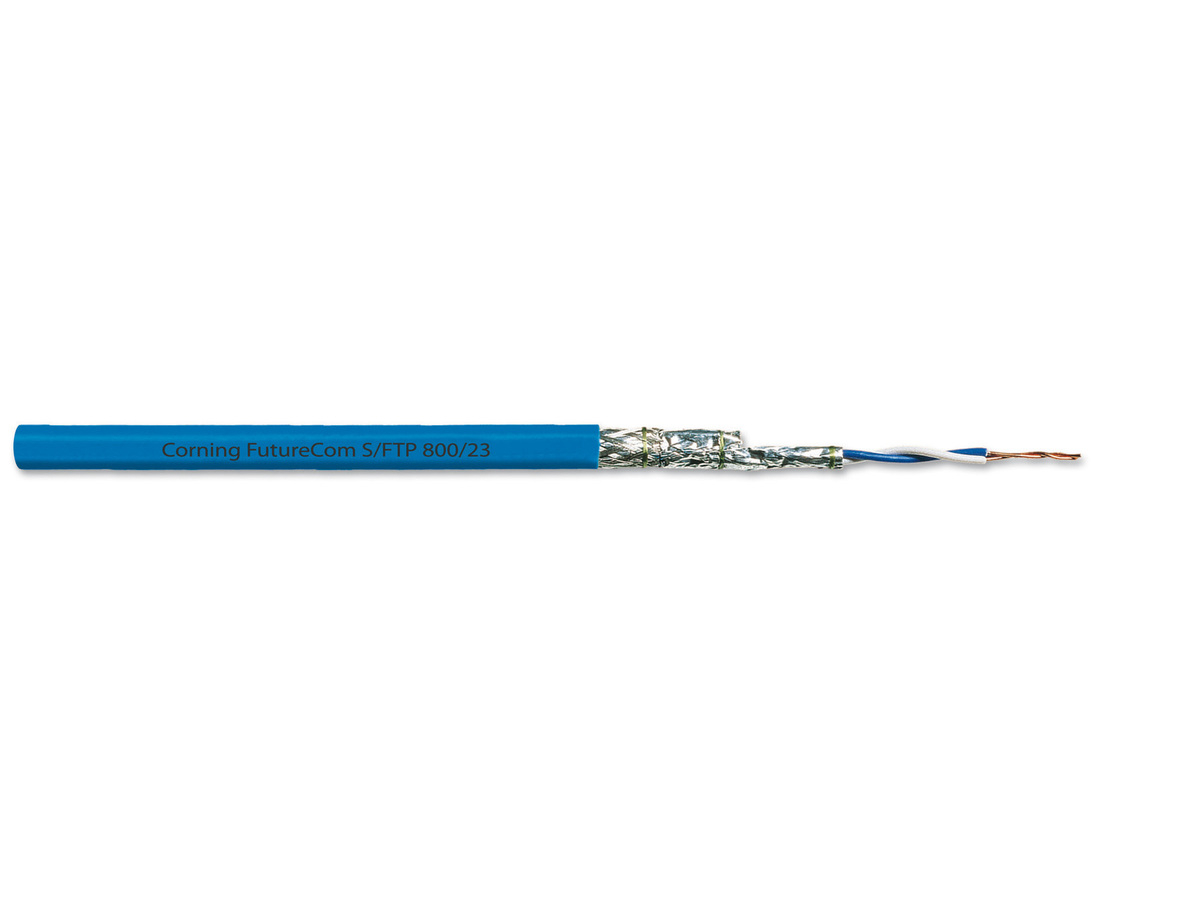

FutureCom™ S/FTP 800/23, Category 7, LSZH™/FRNC, Dca  4P, blue

Typically ships in 21 day(s) Actual lead time confirmed upon receipt of order.
E-mail
General Specifications
Product Number CCXEDB-F0047-C001-L7
Environment Indoor
Category 7
Cable type S/FTP
Bandwidth 1000 MHz
Halogen-free Yes
Construction Simplex, 4P
Reaction to fire Dca, s1, d1, a1
Environmental Conditions
Temperature range, installation 0 C  to  50 C
Temperature range, operation -20 C  to  60 C
Cable Design
Conductor Copper Wire, AWG 23
Conductor insulation Halogen-free foam-skin material
Twisting 2 cores to a pair
Pair screen Al-laminated foil around each pair
Outer jacket material LSZH™/FRNC
Outer jacket colour Blue
Mechanical Characteristics
Fire load 620 MJ/m
Nominal outer diameter 7.4 mm
Min. bend radius installation 8x Cable-Ø (over flat side)
Maximum tensile strength 154 N
Electrical Characteristics
Conductor resistance unbalance 1 %
Delay skew 9 ns/100 m
Max. loop resistance 154 /km
Propagation delay 425 ns/m
Voltage rating Less than 75 V d.c max and less than 50 V a.c max
Insulation resistance 5000 M*km
Surface transfer impedance 10 mΩ
Propagation velocity at >10 MHz (NVP*c) 79 %
Coupling attenuation 85 dB
Ordering Information
Length 1000 m
Weight 61 kg
Weight 61 kg/km
Packing type Drum
Standards
RoHS Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings IEC 61156-5; EN 50288-4-1, ISO/IEC 11801 Ed. 2.2; EN 50173-1, ANSI/TIA -568-C-2; IEC60304
Design And Test Criteria IEEE 802.3 an 1000 Base-TCompliant with PoE / PoE++ IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
Flame propagation test Flame retardant according to IEC 60332-1-2 (single cable) and IEC 60332-3-24 (bunch of cables)
Smoke density Low Smoke to IEC 61034
Halogen content test Zero Halogen to IEC 60754-1
Level of corrosion Non-corrosive according to IEC 60754-2
S/FTP 800/23 copper cable specified up to 1000 MHz
Fulfills all requirements of category 7 according to EN 50288-4-1 and IEC 61156-5
Ensures high system margins according ISO/IEC 11801 Ed.2.2 (2011) and EN 50173 series (2011)
Suitable for 10 Gigabit Ethernet according to IEEE 802.3 an

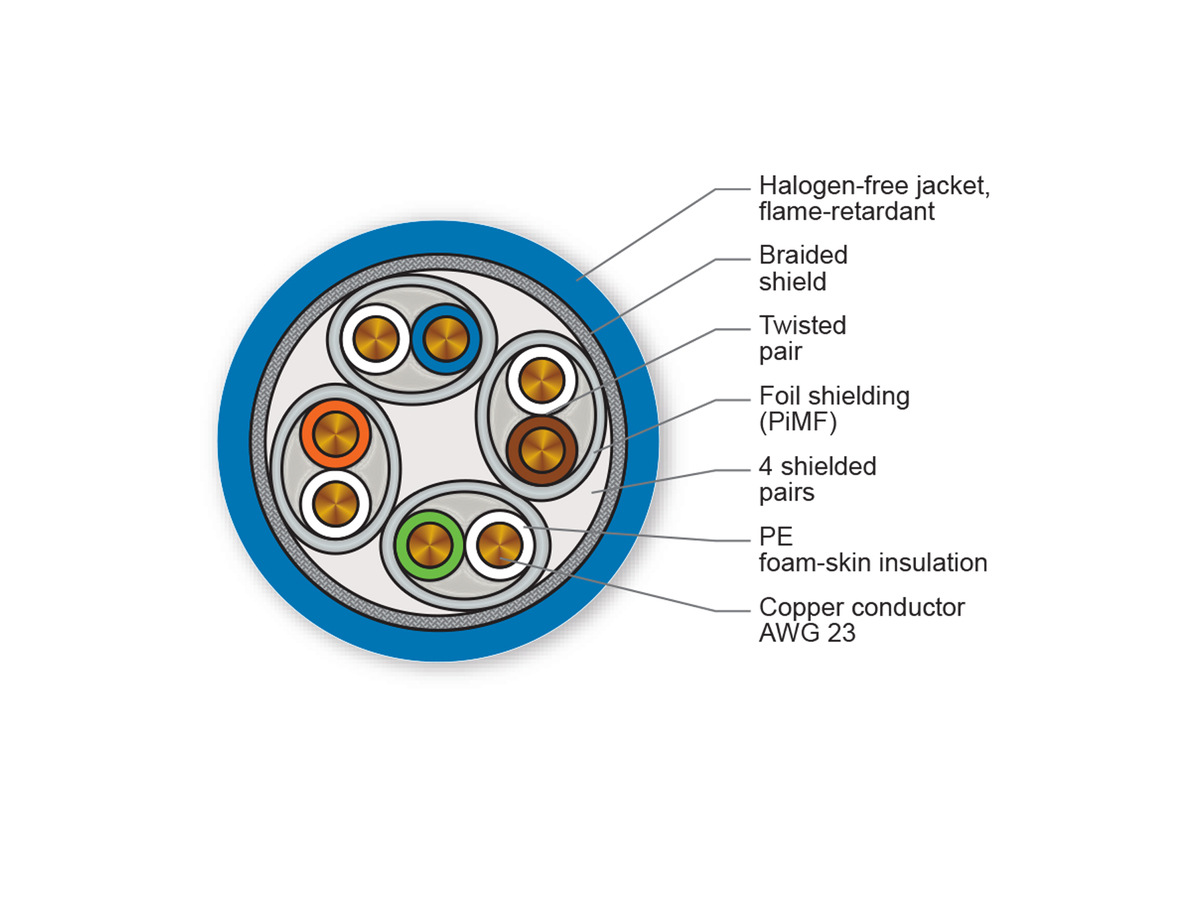

Each twisted pair is individually shielded with a Al-laminated foil around each pair (PIMF)
Overall shielding with tinned copper wire braiding
Flame retardant according to IEC 60332-1 and IEC 60332-3, EN 13501-6 and EN 50575 as well as non-corrosive according to IEC 60754-2 (NC)
Low smoke according to IEC 61034 and EN 50268; halogen-free (ZH/0H), no development of toxic gases in case of fire
Satisfies Class B interference radiation as well as immunity standards (EN 55022 and EN 55024)
Supports Power over Ethernet (PoE / PoE+/ PoE++) according IEEE 802.3bt
S/FTP 800/23 copper cable specified up to 1000 MHz
Fulfills all requirements of category 7 according to EN 50288-4-1 and IEC 61156-5
Ensures high system margins according ISO/IEC 11801 Ed.2.2 (2011) and EN 50173-1
Suitable for 10 Gigabit Ethernet according to IEEE 802.3 an
Each twisted pair is individually shielded with a Al-laminated foil around each pair (PIMF)
Overall shielding with tinned copper wire braiding
Flame retardant according to IEC 60332-1 and IEC 60332-3-24, EN 13501-6 and EN 50575 as well as non-corrosive according to IEC 60754-2 (NC)
Low smoke according to IEC 61034-2 and EN 50268; halogen-free (ZH/0H), no development of toxic gases in case of fire
Satisfies Class B interference radiation as well as immunity standards (EN 55022 and EN 55024)
Supports Power over Ethernet (PoE / PoE+/ PoE++) according IEEE 802.3bt
