HE57908QLZ-4B003M

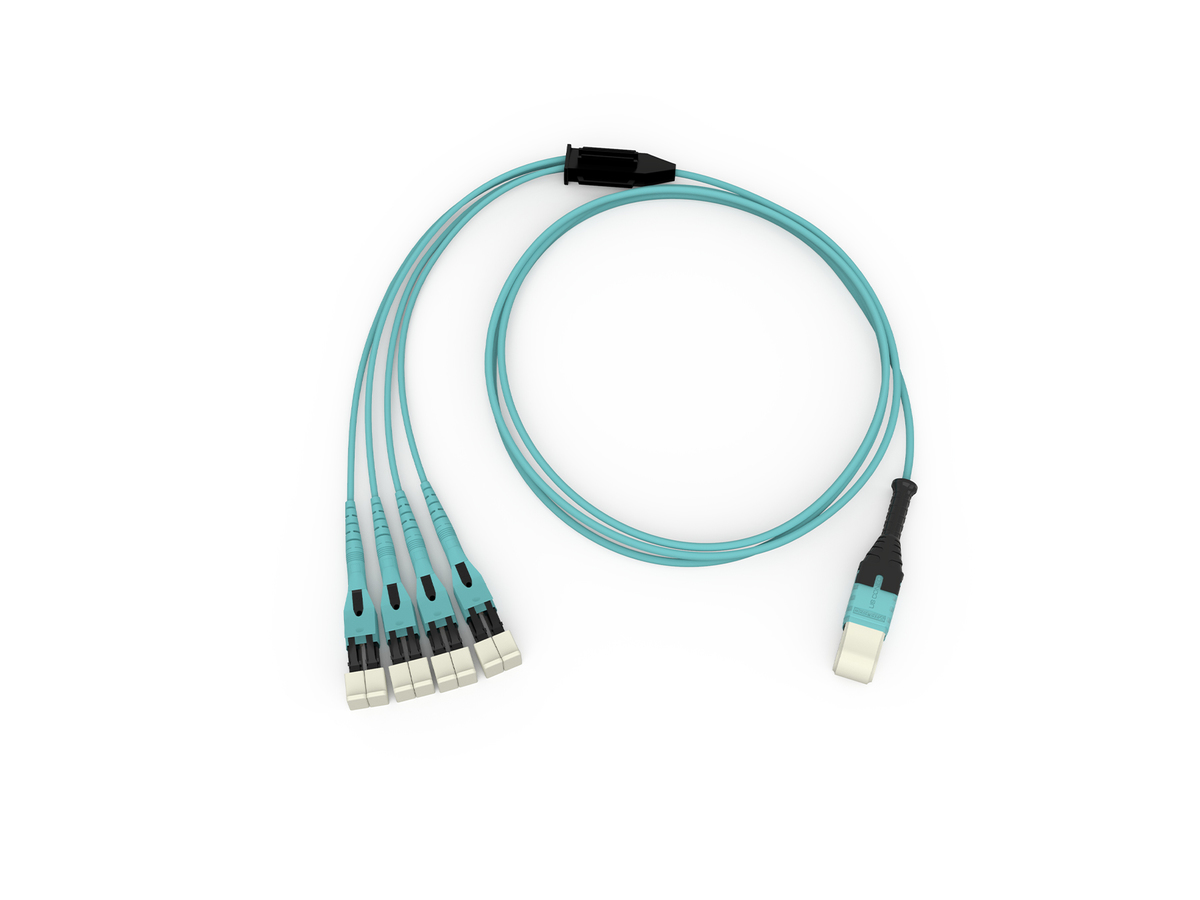

EDGE8® Staggered Harness 8F, 50 µm multimode (OM4), MTP® PRO (pinned), LSZH, TIA-568 Type-B polarity, Type 4 (reference AEN157), 3 m
General Specifications
| Product Number | HE57908QLZ-4B003M |
| Flame rating | LSZH/FRNC |
| Fibre category | Bend-improved 50 µm MM (OM4) |
| Cable assembly type | EDGE8® Harness |
| Cable Type | Interconnect |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Intermateability | TIA/EIA-604-5 / TIA/EIA-604-5 |
Environmental Conditions
| Temperature range, installation | 0 °C to 50 °C |
| Temperature range, operation | -10 °C to -60 °C |
Design
| Fibre count | 8 |
| Polarity | TIA-568 type-B |
Mechanical Characteristics
| Nominal outer diameter | 2 mm |
| Max. tensile strength for installation | 220 N |
| Min. bend radius installation | 30 mm |
| Min. bend radius operation | 10 mm |
Optical Characteristics
| Fibre code | T |
| Performance option code | 98 |
| Fibre category | OM4 |
| Fibre Type | Multimode |
| Fibre name | 50 µm MM (OM4) |
| Maximum Attenuation | 3.8 dB/km / 2.0 dB/km |
| Wavelengths | 850 nm / 1300 nm |
| Fibre compliance | IEC 60793-2-10 |
| Fibre core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Coating diameter | 242 µm |
| Serial 1 gigabit ethernet | 1000 m / 600 m |
| Serial 10 gigabit ethernet | 550 m / - |
| Minimum effective modal bandwidth (EMB) | 4700 MHz*km / - |
| Min. overfilled launch (OFL) bandwidth | 3500 MHz*km / 500 MHz*km |
Specifications - Connector A
| Polish | UPC |
| Insertion loss, max. | 0.25 dB |
| Boot colour | Black |
| Connector type | MTP® PRO (pinned) |
| Ferrule material | Composite |
| Boot type | Individual |
| Reflectance | < -20 dB |
Specifications - Connector B
| Insertion loss, max. | 0.1 dB |
| Connector type | LC Uniboot |
| Ferrule material | Ceramic |
| Reflectance | < -20 dB |
Furcation - Connector A
| Leg length non-unit | Stagger 4 |
| Furcation type | EDGE™ Harness Plug |
| Leg colour | Turquoise |
| Leg diameter | 2 mm |
Furcation - Connector B
| Leg length non-unit | Stagger 4 |
Dimensions
| Length | 3 m |
| Cable Weight | 4.6 kg/km |
Ordering Information
| Units per delivery | 1/1 |
Slim round 2-fiber interconnect cable
Improves airflow and reduces congestion
MTP® PRO connectors
Allows for pinning and poliarity changes in the field
Low-loss connectivity
Enables system design flexibility
Bend-improved fibre
Allows tighter cable bends for slack storage and routing, less risk of downtime due to pinched or bent cables
Corning® CleanAdvantage™ technology and optimised dust cap
Eliminates the need for scoping and cleaning prior to initial field connection
