024ER5-T3122A20

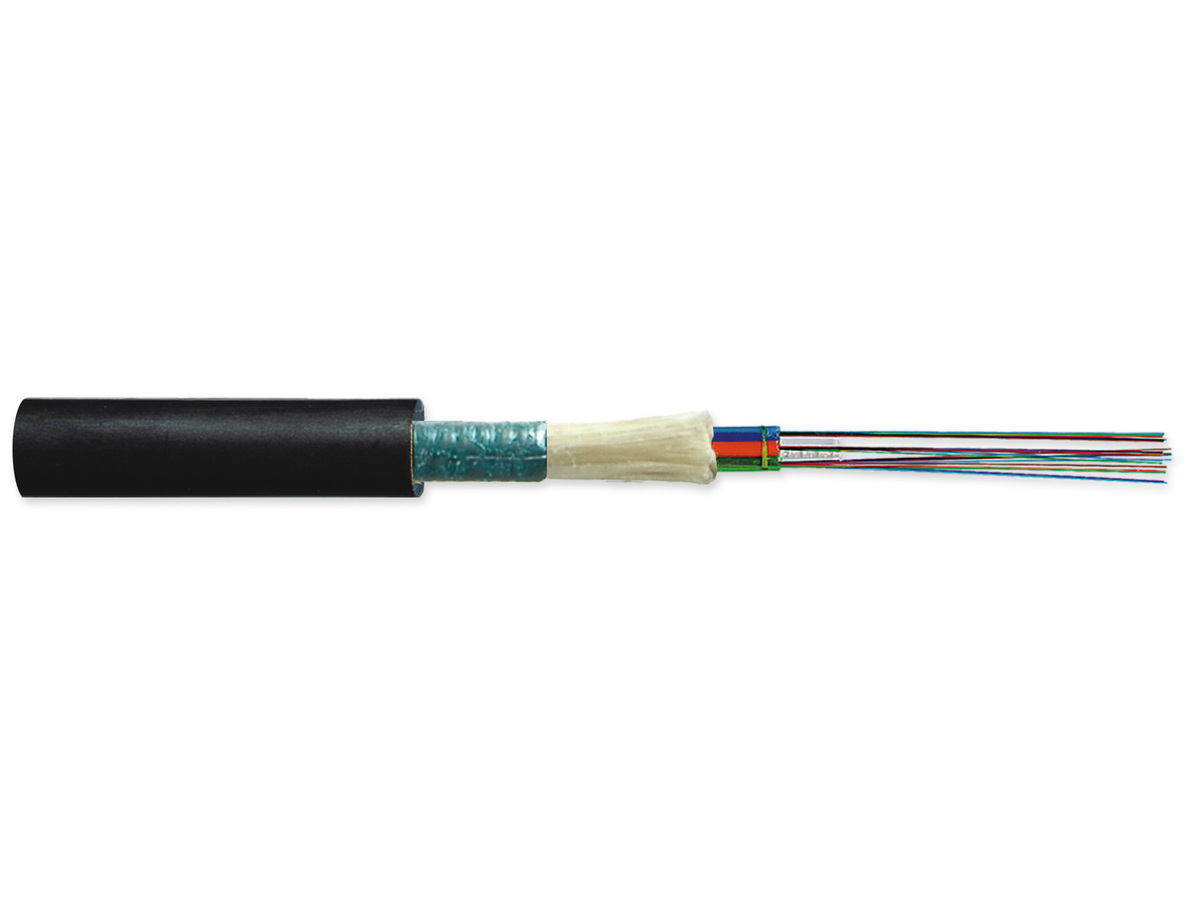

ALTOS® Loose Tube Steel Armour Double Jacket Outdoor Cable LT 2.3 2x12 E9 SMF-28e+® ITU G652.D LT 2.3
General Specifications
| Product Number | 024ER5-T3122A20 |
| EAN Code | 4056418063195 |
| Cable type | Loose tube |
| Environment | Outdoor |
| Product type | Corrugated steel armour |
| Fibre category | Single-mode (OS2) |
| Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) | A-DQ(ZN)2Y(SR)2Y |
| Application | Direct Buried, Duct |
| Cable geometry | Round |
Standards
| Fibre Standards | TIA/EIA-492CAAB, IEC 60793-2-50 Type B1.3, ITU-T G.652.D, ISO/IEC 11801 Ed.2.2 |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Waterblocking | IEC 60794-1-2 F5 |
Environmental Conditions
| Temperature range, installation | -5 °C to 50 °C |
| Temperature range, operation | -30 °C to 70 °C |
| Temperature range, storage | -40 °C to 70 °C |

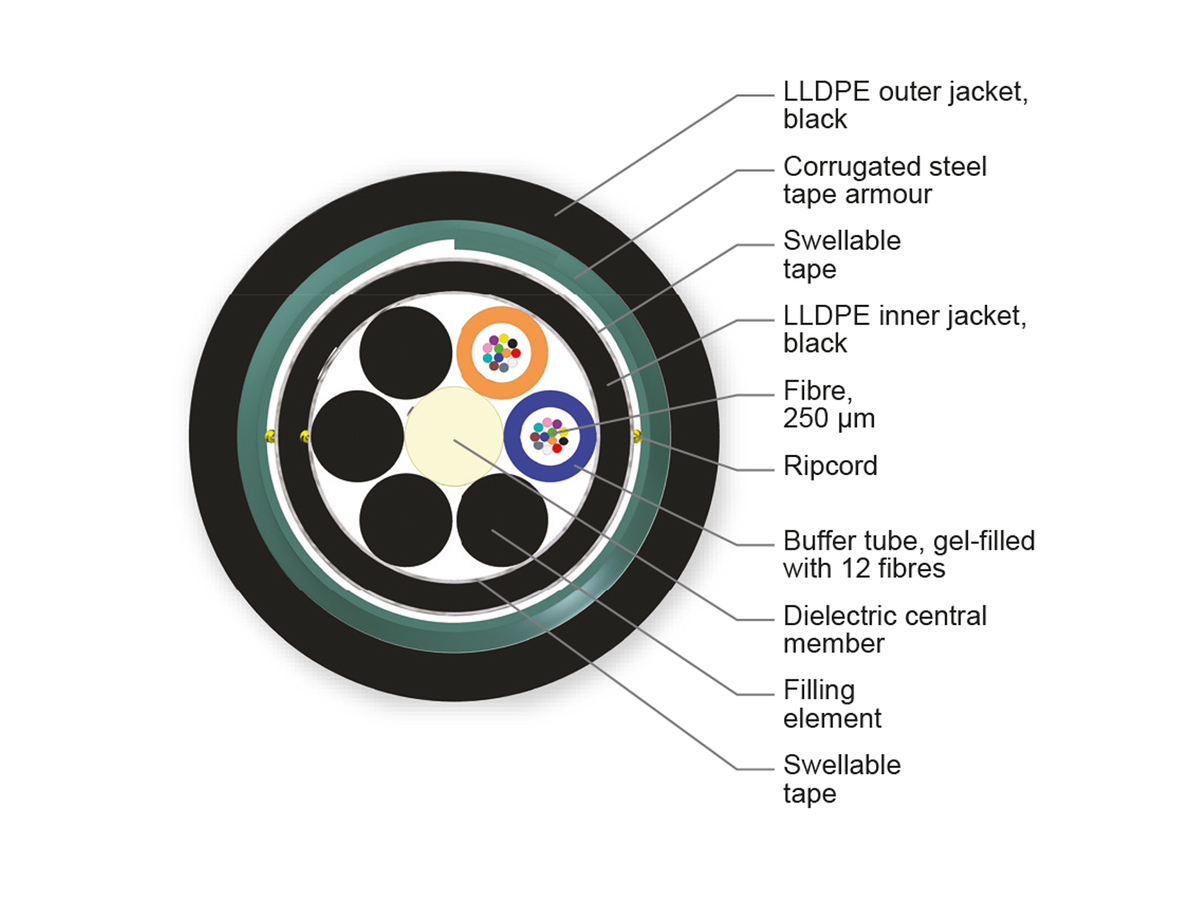

Cable Design
| Cable marking | Metre - Handset - Sine - CORNING - Year -ALTOS (R) A-DQ(ZN)2Y(SR)2Y 2X12 E9 LT 2.3 |
| Central element | Glass reinforced Plastic (Dielectric) |
| Fibre count | 24 |
| Number of ripcords | 3 |
| Outer jacket colour | Black |
| Outer jacket material | Linear Low Density Polyethylene (LLDPE) |
| Outer jacket nominal thickness | 1.5 mm |
| Tensile strength elements and/or armouring - Layer 1 | Corrugated steel tape armour |
| Buffer tube colour | Blue, orange |
| Buffer tube diameter | 2.25 mm |
| Central element diameter | 2.5 mm |
| Inner jacket material | Linear Low Density Polyethylene (LLDPE) |
| Number of active tubes | 2 |
| Number of filling elements | 4 |
| Number of tube positions | 6 |
| Tape, layer 1 | Water-swellable |
| Tape, layer 2 | Water-swellable |
| Fibre colouring | Blue, orange, green, brown, grey, white, red, black, yellow, violet, pink, turquoise |
| Fibres per tube | 12 |
| Colour Code Standards | Telcordia |
Mechanical Specifications
| Crush resistance | 3000 N/10 cm |
| Max. tensile strength for installation | 2700 N |
| Min. bend radius installation | 308 mm |
| Min. bend radius operation | 245 mm |
| Nominal outer diameter | 14 mm |
Optical Characteristics
| Fibre code | E |
| Performance option code | 22 |
| Fibre category | OS2 |
| Fibre Type | Single-mode (OS2) / 250 µm |
| Fibre name | Single-mode (OS2) |
| Maximum Attenuation | 0.36 dB/km / 0.36 dB/km / 0.22 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fibre compliance | ITU-T G.652.D |
| Fibre core diameter | 8.2 µm |
| Cladding diameter | 125 µm |
| Coating diameter | 242 µm |
| Dispersion @ 1550 nm | ≤ 18 [ps/(nm*km)] |
| Dispersion @ 1625 nm | ≤ 22 [ps/(nm*km)] |
| Cable cutoff wavelength | 1260 nm |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Mode-Field Diameter at 1550 nm | 10.4 µm |
| PMD Link Design Value | ≤ 0.06 ps/√km |
| PMD (Polarization Mode Dispersion) maximum individual fibre | ≤ 0.1 ps/√km |
Dimensions
| Cable Weight | 172 kg/km |
| Max. cable length per reel/drum | 6000 m |
Waterblocking technology
OSP (outdoor) applications
Corrugated steel armouring
Rodent, mechanical protection and direct buried applications
UV- and microbe-resistant
Can be installed in ducts or conduits
Dry cable core by means of water swellable elements
Allows efficient and craft-friendly cable preparation in outdoor applications
Fibres/buffer tubes colour coded to Telcordia-Bellcore
Easy identification of the individual tubes and fibres
SZ-stranded, loose tube design
Isolates fibres from installation and environmental rigors and facilitates mid-span access
