024EEC-33622A20
Central Tube Steel Armor Outdoor Cable 24F E9 SMF-28e+® ITU G652.D CT 3.0
General Specifications
| Product Number | 024EEC-33622A20 |
| Installation Methods | Direct Buried, Duct |
| Cable type | Central Tube |
| Environment | Outdoor |
| Product type | Corrugated steel armour |
| Fibre category | Single-mode (OS2) |
| Cable geometry | Round |
Standards
| Fibre Standards | TIA/EIA-492CAAB, IEC 60793-2-50 Type B1.3, ITU-T G.652.D, ISO/IEC 11801 Ed.2.2 |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
| Temperature range, installation | -5 °C to 50 °C |
| Temperature range, operation | -30 °C to 70 °C |
| Temperature range, storage | -40 °C to 70 °C |

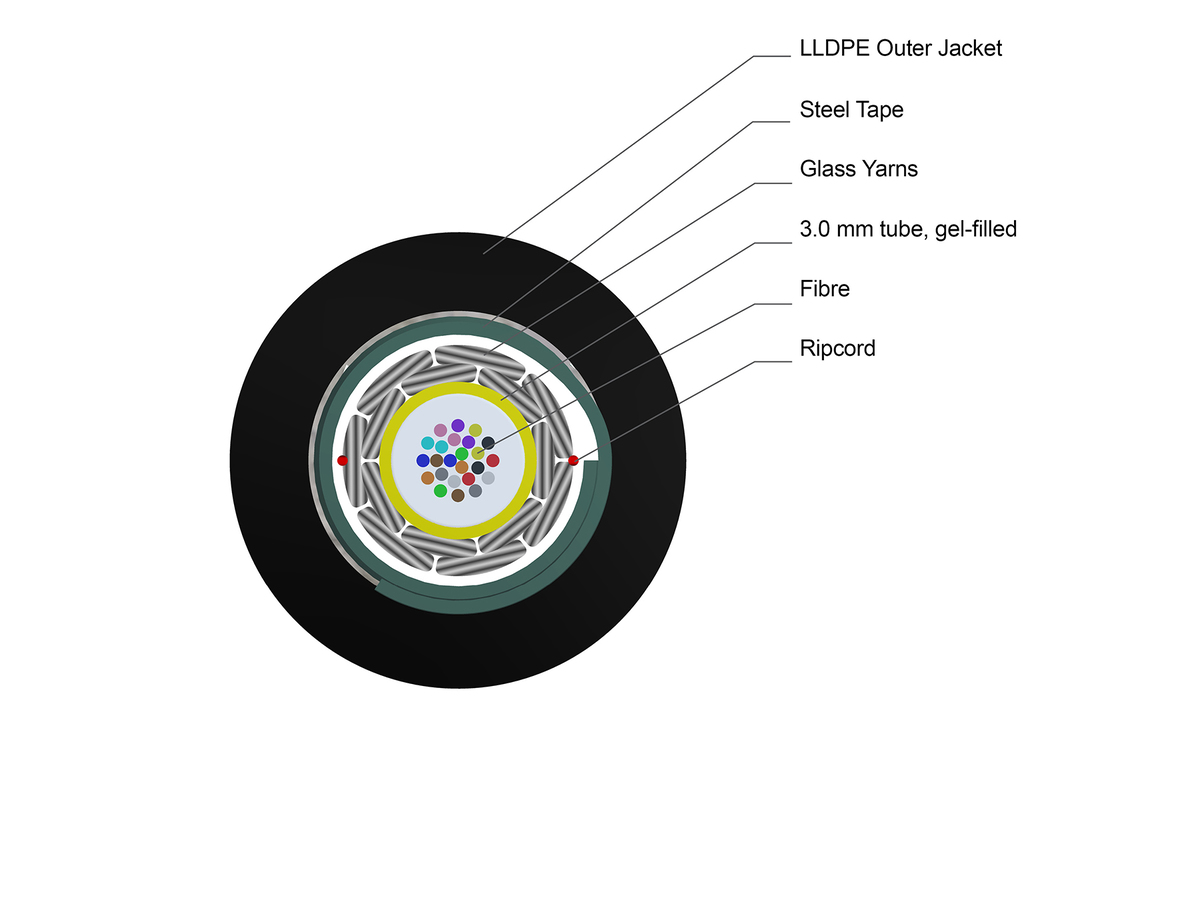

Cable Design
| Cable marking | Metre - Handset - Sine - CORNING - Year - A-DQ(ZN)B(SR)2Y 24F E9 CT3.0 |
| Fibre count | 24 |
| Buffer tube colour coding, layer 1 | Yellow |
| Outer jacket colour | Black |
| Outer jacket material | Linear Low Density Polyethylene (LLDPE) |
| Outer jacket nominal thickness | 1 mm |
| Tensile strength elements and/or armouring - Layer 1 | Corrugated steel tape armor with dielectric strength elements |
| Buffer tube diameter | 3 mm |
| Tape, layer 1 | Water-swellable |
| Cable marking method | Laser printing |
| Fibre colouring | 1-12: blue, orange, green, brown, slate, white, red, black, yellow, violet, pink, aqua - 13-24: (all with one black ring mark) blue, orange, green, brown, slate, white, red, natural, yellow, violet, pink, aqua |
| Fibres per tube | 24 |
| Colour Code Standards | Telcordia |
Mechanical Specifications
| Crush resistance | 2000 N/10 cm |
| Max. tensile strength for installation | 2700 N |
| Min. bend radius installation | 170 mm |
| Min. bend radius operation | 85 mm |
| Nominal outer diameter | 8.5 mm |
Optical Characteristics
| Fibre code | E |
| Performance option code | 22 |
| Fibre category | OS2 |
| Fibre Type | Single-mode (OS2) / 250 µm |
| Fibre name | Single-mode (OS2) |
| Maximum Attenuation | 0.36 dB/km / 0.36 dB/km / 0.22 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fibre compliance | ITU-T G.652.D |
| Fibre core diameter | 8.2 µm |
| Cladding diameter | 125 µm |
| Coating diameter | 242 µm |
| Dispersion @ 1550 nm | ≤ 18 [ps/(nm*km)] |
| Dispersion @ 1625 nm | ≤ 22 [ps/(nm*km)] |
| Cable cutoff wavelength | 1260 nm |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Mode-Field Diameter at 1550 nm | 10.4 µm |
| PMD Link Design Value | ≤ 0.06 ps/√km |
| PMD (Polarization Mode Dispersion) maximum individual fibre | ≤ 0.1 ps/√km |
Dimensions
| Cable Weight | 90 kg/km |
Ordering Information
| Maximum delivery length | 6000 m |
Waterblocking technology
Outside Plant (OSP) applications
Corrugated steel armouring
Rodent, mechanical protection and direct buried applications
Fibres colour coding to Telcordia-Bellcore
Easy identification of the individual fibres
UV and microbe resistant
Can be directly buried or installed in ducts
Small diameter and bend radius
Easy installation in space-constrained areas
