006ZK4-13120A20

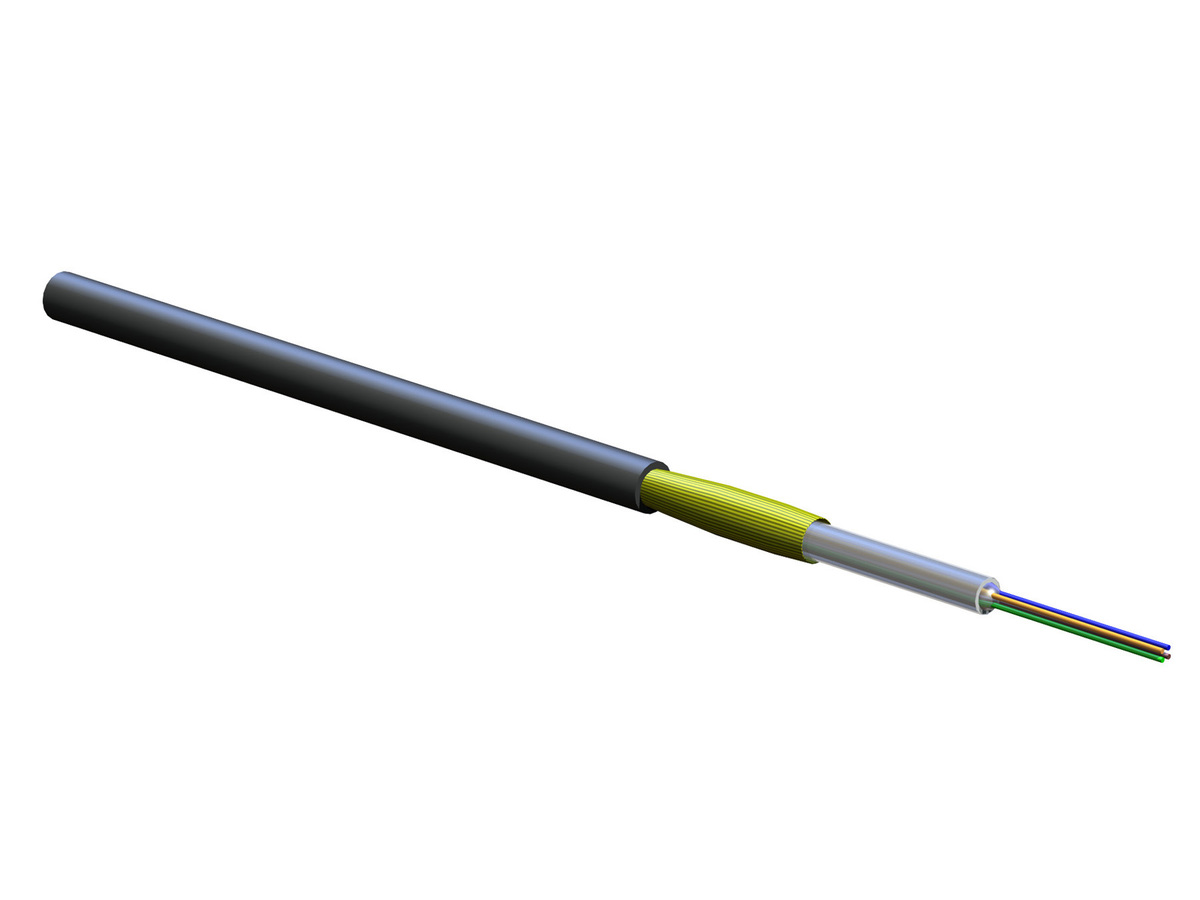

MiniXtend® Cable, CT A-D(ZN)2Y, 6 fibres, CT, single-mode (SMF 28e® ULTRA)
Especificações gerais
| Número do produto | 006ZK4-13120A20 |
| Cable type | Central Tube |
| Environment | Outdoor |
| Product type | Dielectric |
| Fibre category | Single-mode (OS2) |
| Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) | A-D(ZN)2Y |
| Application | Miniduct |
| Cable geometry | Round |
Standards
| Fibre Standards | TIA/EIA-492CAAB, IEC 60793-2-50 Type B1.3, ISO/IEC 11801 Ed.2.2 |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
| Temperature range, installation | -5 °C para 50 °C |
| Temperature range, operation | -20 °C para 60 °C |
| Temperature range, storage | -25 °C para 60 °C |
Cable Design
| Fibre count | 6 |
| Outer jacket colour | Black |
| Outer jacket material | Polyethylene (PE) |
| Buffer tube diameter | 1.75 mm |
| Cable marking method | Laser printing |
| Fibre colouring | Blue, orange, green, brown, grey, white |
| Fibres per tube | 6 |
Mechanical Specifications
| Crush resistance | 1000 N/10 cm |
| Crush resistance (reversible), outdoor cable | 500 N/10 cm |
| Max. tensile strength, short-term | 80 N |
| Min. bend radius installation | 90 mm |
| Min. bend radius operation | 50 mm |
| Nominal outer diameter | 2.5 mm |
| Min. Duct Size Diameter | 3.5 mm |
| Optimal Duct Size | 4 mm |
Optical Characteristics
| Fibre code | Z |
| Performance option code | 20 |
| Fibre category | OS2 |
| Fibre Type | Single-mode (OS2) / 250 µm |
| Fibre name | Bend-Improved Single-mode (OS2) |
| Maximum Attenuation | 0.34 dB/km / 0.34 dB/km / 0.20 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fibre compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Fibre core diameter | 8.2 µm |
| Cladding diameter | 125 µm |
| Coating diameter | 242 µm |
| Dispersion @ 1550 nm | ≤ 18 [ps/(nm*km)] |
| Dispersion @ 1625 nm | ≤ 22 [ps/(nm*km)] |
| Cable cutoff wavelength | 1260 nm |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Mode-Field Diameter at 1550 nm | 10.4 µm |
| PMD Link Design Value | ≤ 0.04 ps/√km |
| PMD (Polarization Mode Dispersion) maximum individual fibre | ≤ 0.1 ps/√km |
Dimensions
| Cable Weight | 4.5 kg/km |
| Max. cable length per reel/drum | 6000 m |
Improved cable and fibre density
Reduced cable diameter for installation in micro ducts with 4mm minimum inner diameter
Fully-dielectric
No grounding required
Optimised for air-assisted install in microducts
Capable of installation distances greater than 2000 m (6560 ft) at speeds up to 150 m/min (490 ft/min)
SMF-28e+®according to ITU-T G.652.D
Transmission security, low attenuation and polarization mode dispersion
