CCH-03U

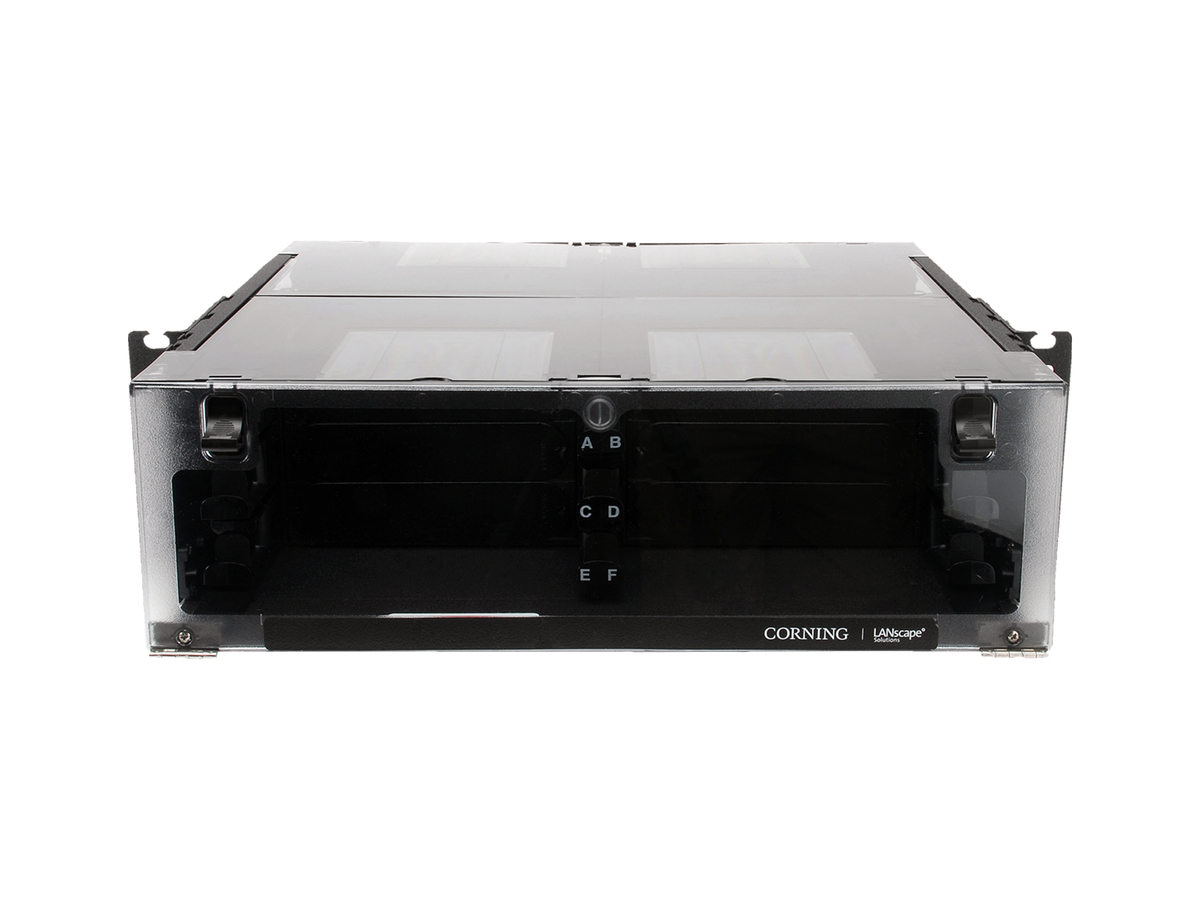

Closet Connector Housing (CCH) three rack units, holds six CCH connector panels
General Specifications
| Product Number | CCH-03U |
| EAN Code | 4056418169446 |
| Product type | Fibre Optic Hardware |
| Environment | Indoor |
| Access type | Front and rear access slidable |
| Lockable | Yes |
| Mounting Type | Rack 19", Rack 23", Cabinet-mount |
| Application | Carrier Networks, Data Centre, Enterprise Networks |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Meets ANSI/TIA/EIA-568A and 606, Tested in accordance with Telecordia GR-63-CORE, UL1863 - Communication Circuit Accessories |
| UL-Listed | United States and Canadian safety standards |
Environmental Conditions
| Temperature range, operation | -40 °C to 70 °C |
Design
| Number of modules | 6 |
| Housing type | CCH |
| Locking availability | Front or rear |
| Number of panels per housing | 6 |
| Panel or cassette type | CCH |
| Panel or module type | CCH |
| Splice Tray Options | CCH Splice Cassette (CCH-CS) |
| Fibre Capacity | 144 |
Dimensions
| Height | 135 mm |
| Width | 496.5 mm |
| Depth | 433 mm |
Ordering Information
| Package contents | Closet Connector Housing 3U, 6 blank panels, Installation kit with mouting screws, Internal and external strain relief brackets, Label Cards |
| Shipping weight | 7.7 kg |
| Height Unit | 3 U |
| Units per delivery | 1/1 |
| Shipping Height | 257 mm |
| Shipping Width | 532 mm |
| Shipping Depth | 513 mm |
Interconnect and cross-connect capability
Ideal for field connectorisation
Removable, translucent top covers (1U, 2U, 3U), removable rear cover (4U)
Visibility and ease of access for installation, testing, and troubleshooting
Internal and external strain-relief options
Flexibility for installation and moves, adds, and changes (MACs)
Accepts panels, modules, and cassettes
Variety of field-termination options
Adaptable to use as a modular splice housing
Splices are stored and protected in same footprint
