001JB4-13122A20

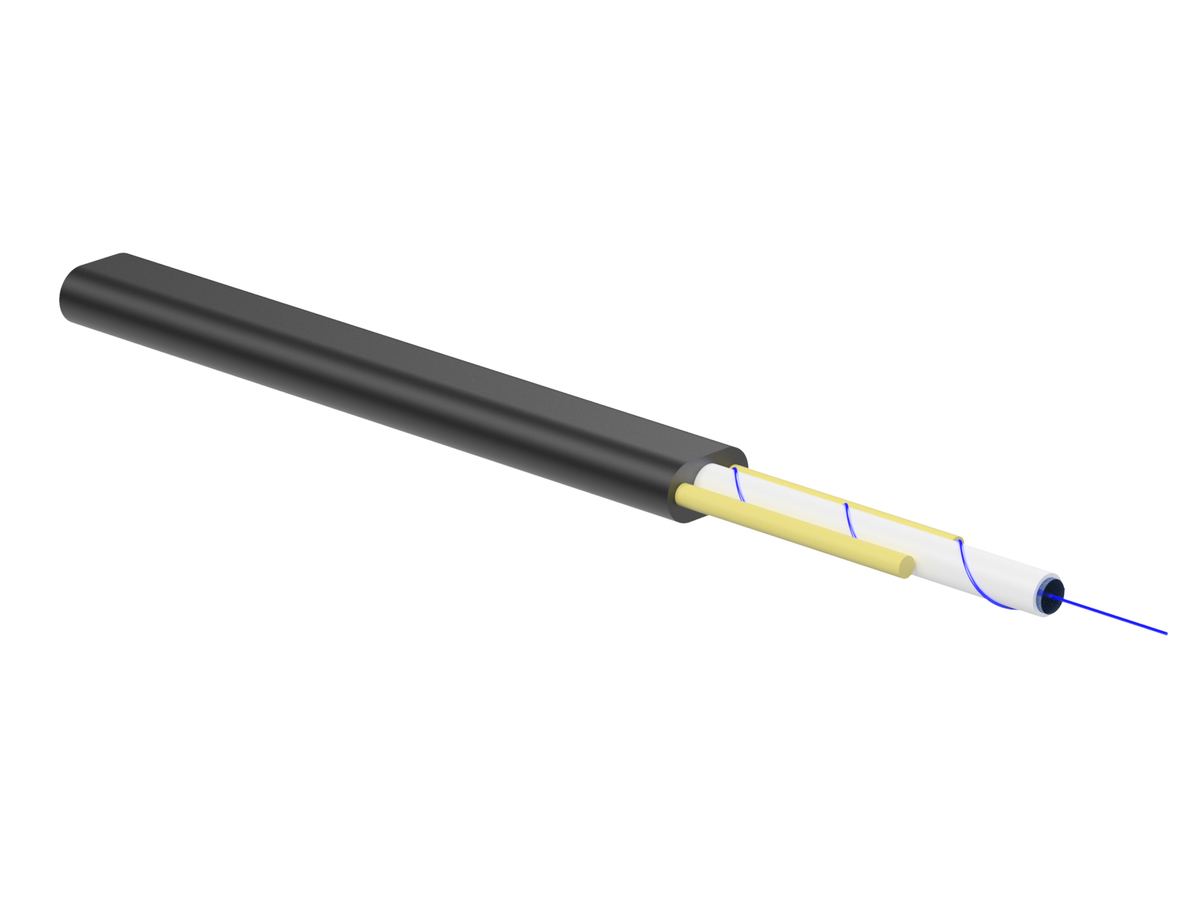

SST-Drop™ Single-Tube, Dielectric, Gel-Filled Cable 1 F, E9 Single-Mode ClearCurve™ R7.5 Bend Fibre (LBL)
General Specifications
| Product Number | 001JB4-13122A20 |
| Cable type | Central Tube |
| Environment | Outdoor |
| Product type | Self-Supporting, Figure-8 |
| Fibre category | ClearCurve® LBL |
| Application | Aerial, Duct, Drop |
| Cable geometry | Other |
Standards
| Reaction to fire | Fca |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Waterblocking | IEC 60794-1-22 Method F5B |
| Level of corrosion | Non-corrosive according to IEC 60754-2 |
Environmental Conditions
| Temperature range, installation | -30 °C to 70 °C |
| Temperature range, operation | -40 °C to 70 °C |
| Temperature range, storage | -40 °C to 70 °C |

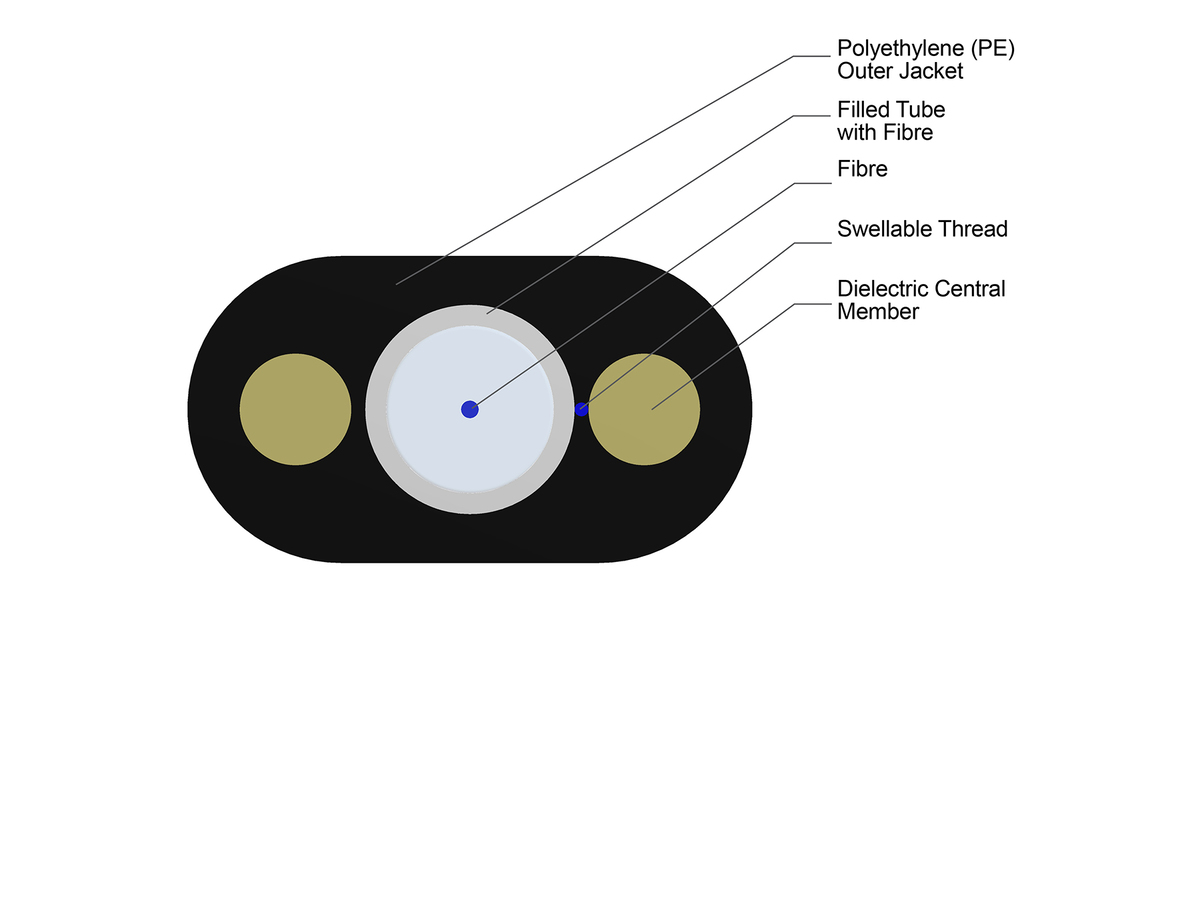

Cable Design
| Cable marking | Metre - CORNING - Year (20xx) - 1E9/125 CLEARCURVE LBL R7,5 |
| Central element | Dielectric |
| Fibre count | 1 |
| Outer jacket colour | Black |
| Outer jacket material | Polyethylene (PE) |
| Buffer tube diameter | 3 mm |
| Cable marking colour | White |
| Fibre colouring | White |
| Fibres per tube | 1 |
| Colour Code Standards | Telcordia |
Mechanical Specifications
| Crush resistance | 3000 N/10 cm |
| Max. tensile strength, long-term | 400 N |
| Max. tensile strength, short-term | 1350 N |
| Min. bend radius operation | 80 mm |
| Nominal outer diameter | 8.1 mm x 4.5 mm |
Optical Characteristics
| Fibre name | ClearCurve® LBL |
| Fibre Type | Single-mode |
| Cladding diameter | 125 µm ± 0.7µm |
| Maximum Attenuation | 0.36 dB/km / 0.22 dB/km |
| Fibre Bend Performance at 1550nm 7.5mm radius | ≤ 0.2 dB/turn |
| Mode-Field Diameter at 1310 nm | 8.6 µm ± 0.4µm |
| Mode-Field Diameter at 1550 nm | 9.65 µm ± 0.5µm |
| Wavelengths | 1310 nm / 1550 nm |
| PMD Link Design Value | ≤ 0.06 ps/(nm*km) |
| PMD (Polarization Mode Dispersion) maximum individual fibre | ≤ 0.2 ps/(nm*km) |
| Fibre category | SM Bend Resistant (G657.A2/B2) |
| Dispersion @ 1550 nm | ≤ 18 [ps/(nm ⋅ km)] |
Dimensions
| Cable Weight | 30 kg/km |
| Length | 0 mm |
Dielectric design
Eliminates bonding
Standard ALTOS Cable tube design in single tube design
Standard practices and hardware compatibility
Crush Resistance
Fibre protection and signal integrity
