004EB4-13122A20
SST-Drop™ Single-Tube, Dielectric, Gel-Filled Cable 4 F, single-mode (OS2)
General Specifications
| Product Number | 004EB4-13122A20 |
| Cable type | Central Tube |
| Environment | Outdoor |
| Product type | Self-Supporting, Figure-8 |
| Fibre category | Single-mode (OS2) |
| Application | Aerial, Duct, Drop |
| Cable geometry | Other |
Standards
| Reaction to fire | Fca |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Waterblocking | IEC 60794-1-22 Method F5B |
| Level of corrosion | Non-corrosive according to IEC 60754-2 |
Environmental Conditions
| Temperature range, installation | -30 °C to 70 °C |
| Temperature range, operation | -40 °C to 70 °C |
| Temperature range, storage | -40 °C to 70 °C |

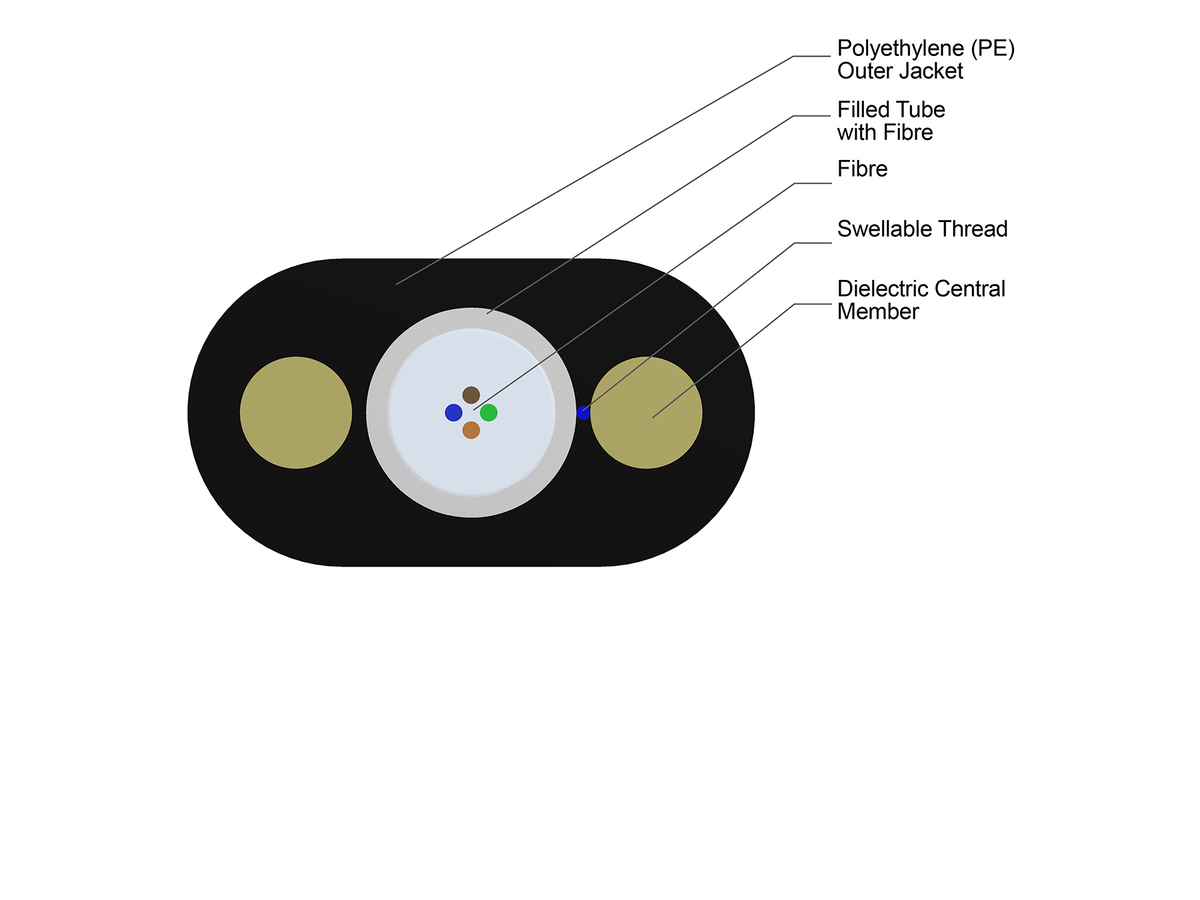

Cable Design
| Cable marking | Metre - CORNING -Month/Year - Handset - 4 SME - ID Number |
| Central element | Dielectric |
| Fibre count | 4 |
| Outer jacket colour | Black |
| Outer jacket material | Polyethylene (PE) |
| Buffer tube diameter | 3 mm |
| Cable marking colour | White |
| Fibre colouring | Blue, orange, green, brown |
| Fibres per tube | 4 |
| Colour Code Standards | Telcordia |
Mechanical Specifications
| Crush resistance | 3000 N/10 cm |
| Max. tensile strength, long-term | 400 N |
| Max. tensile strength, short-term | 1350 N |
| Min. bend radius operation | 80 mm |
| Nominal outer diameter | 8.1 mm x 4.5 mm |
Dimensions
| Cable Weight | 30 kg/km |
| Length | 0 mm |
Dielectric design
Eliminates bonding
Standard ALTOS Cable tube design in single tube design
Standard practices and hardware compatibility
Crush Resistance
Fibre protection and signal integrity
