012ZB4-13120A20

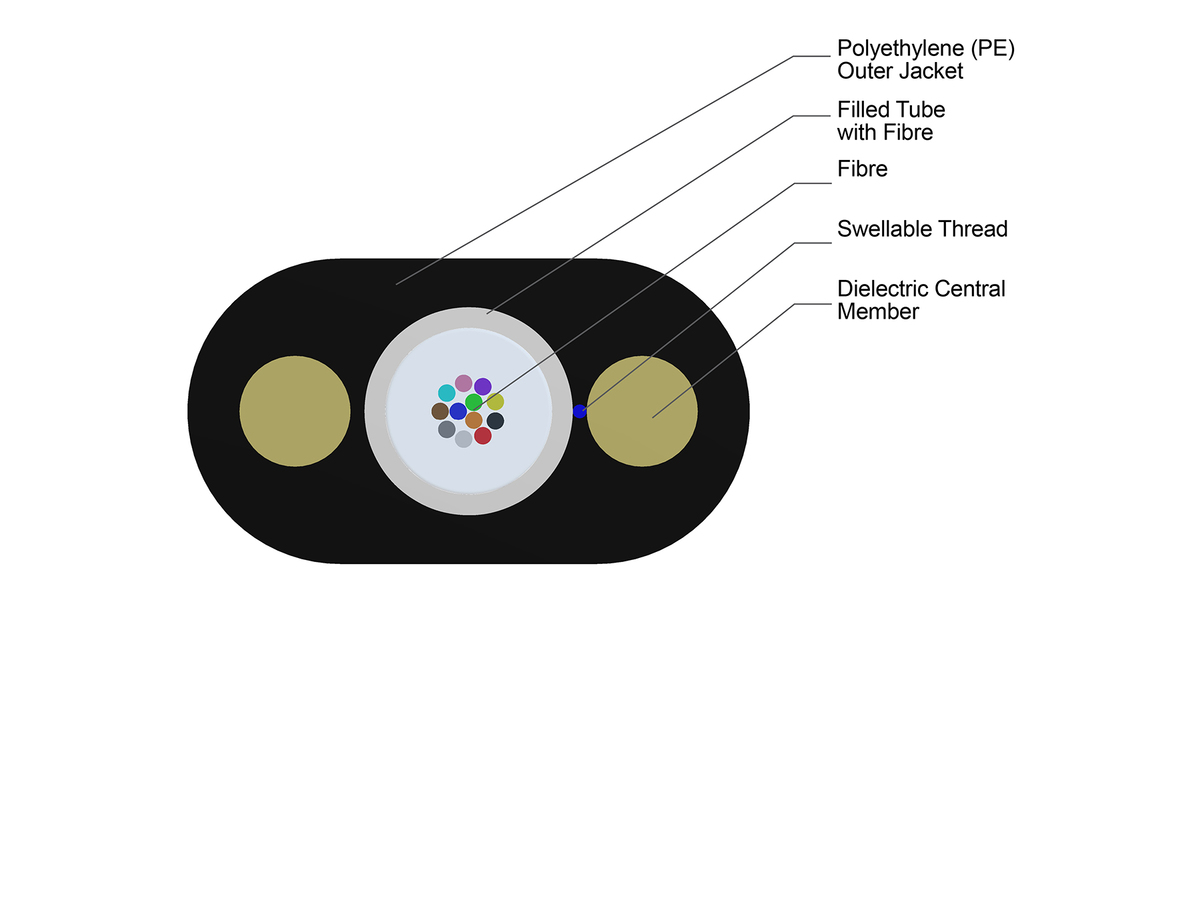

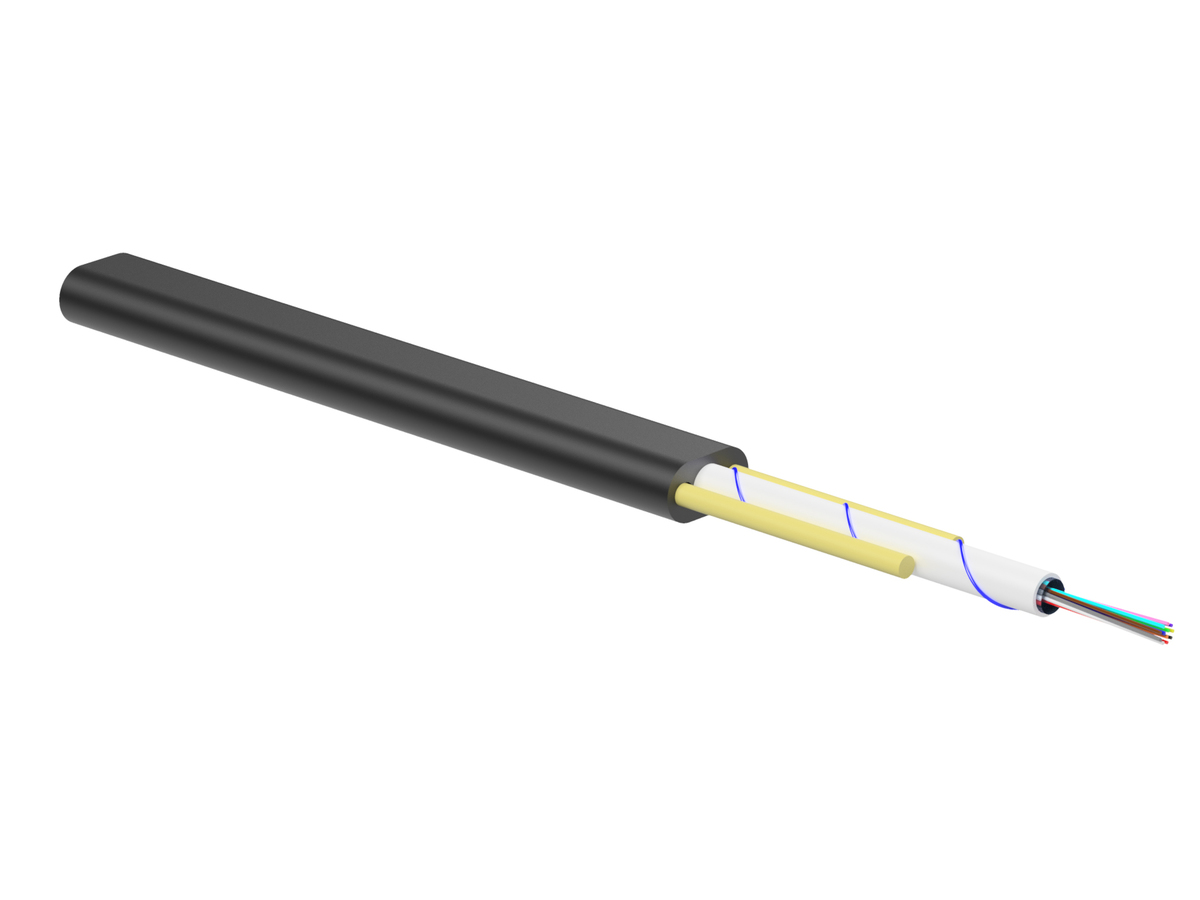

SST-Drop™ Single-Tube, Dielectric, Gel-Filled Cable 12 F, E9/125 SMF-28® ULTRA
General Specifications
| Product Number | 012ZB4-13120A20 |
| Cable type | Central Tube |
| Environment | Outdoor |
| Product type | Self-Supporting, Figure-8 |
| Fibre category | SMF-28® Ultra |
| Application | Aerial, Duct, Drop |
| Cable geometry | Other |
Standards
| Reaction to Fire | Fca |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Waterblocking | IEC 60794-1-22 Method F5B |
| Level of corrosion | Non-corrosive according to IEC 60754-2 |
Environmental Conditions
| Temperature range, installation | -30 °C to 70 °C |
| Temperature range, operation | -40 °C to 70 °C |
| Temperature range, storage | -40 °C to 70 °C |
Cable Design
| Cable marking | Metre - CORNING -Month/Year - Handset - 12E9ULTRA - ID Number |
| Central element | Dielectric |
| Fibre count | 12 |
| Outer jacket colour | Black |
| Outer jacket material | Polyethylene (PE) |
| Buffer tube diameter | 3 mm |
| Cable marking colour | White |
| Fibre colouring | Blue, orange, green, brown, grey, white, red, black, yellow, violet, pink, turquoise |
| Fibres per tube | 12 |
| Colour Code Standards | Telcordia |
Mechanical Specifications
| Crush resistance | 3000 N/10 cm |
| Max. tensile strength, long-term | 400 N |
| Max. tensile strength, short-term | 1350 N |
| Min. bend radius operation | 80 mm |
| Nominal outer diameter | 8.1 mm x 4.5 mm |
Optical Characteristics
| Fibre code | Z |
| Performance option code | 20 |
| Fibre category | OS2 |
| Fibre Type | Single-mode (OS2) / 250 µm |
| Fibre name | Bend-Improved Single-mode (OS2) |
| Maximum Attenuation | 0.34 dB/km / 0.34 dB/km / 0.20 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fibre compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Fibre core diameter | 8.2 µm |
| Cladding diameter | 125 µm |
| Coating diameter | 242 µm |
| Dispersion @ 1550 nm | ≤ 18 [ps/(nm*km)] |
| Dispersion @ 1625 nm | ≤ 22 [ps/(nm*km)] |
| Cable cutoff wavelength | 1260 nm |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Mode-Field Diameter at 1550 nm | 10.4 µm |
| PMD Link Design Value | ≤ 0.04 ps/√km |
| PMD (Polarization Mode Dispersion) maximum individual fibre | ≤ 0.1 ps/√km |
Dimensions
| Cable Weight | 30 kg/km |
Dielectric design
Eliminates bonding
Standard ALTOS Cable tube design in single tube design
Standard practices and hardware compatibility
Crush Resistance
Fibre protection and signal integrity
