192ZR4-Y3F20D20
ALTOS® Loose Tube, Gel-Free, All-Dielectric, Non-Armoured Cables with Binderless FastAccess™ Technology 8x24 F, SMF-28® ULTRA, LT 2.3 HDPE
General Specifications
| Product Number | 192ZR4-Y3F20D20 |
| Cable type | Loose tube |
| Environment | Outdoor |
| Product type | Dielectric |
| Fibre category | SMF-28® Ultra |
| Application | Duct |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | IEC 60794-3-10 |
| Waterblocking | IEC 60794-1-2 F5 |
Environmental Conditions
| Temperature range, installation | -5 °C to 50 °C |
| Temperature range, operation | -30 °C to 70 °C |
| Temperature range, storage | -40 °C to 70 °C |

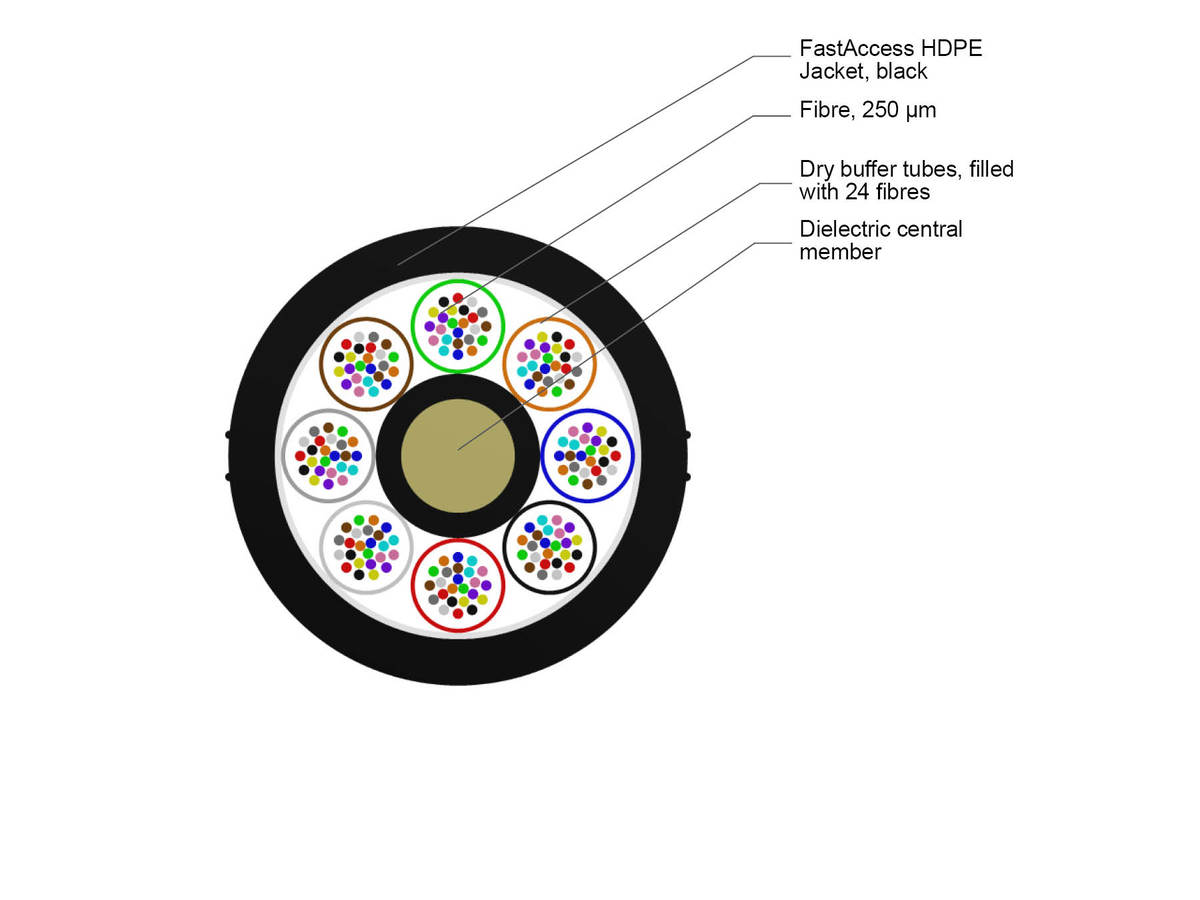

Cable Design
| Cable marking | Metre - Handset - Sine - CORNING - Year - ALTOS (R) Gel-Free FastAccess 8x24 E9U LT 2.3 |
| Central element | GRP |
| Fibre count | 192 |
| Outer jacket colour | Black |
| Outer jacket material | High Density Polyethylene (HDPE) |
| Outer jacket nominal thickness | 1.1 mm |
| Buffer tube diameter | 2.3 mm |
| Central element diameter | 3.9 mm |
| Fibre bundle colouring | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Turquoise, Blue*, Orange*, Green*, Brown*, Slate*, White*, Red*, Transparent*, Yellow*, Violet*, Pink*, Aqua* (*with Black Ring) |
| Number of active tubes | 8 |
| Number of filling elements | 0 |
| Number of tube positions | 8 |
| Waterblocking material | Water-swellable |
| Cable marking method | Laser printing |
| Fibre colouring | 1-12: blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua - 13-24 (all with one black ring mark) blue, orange, green, brown, slate, white, red, natural, yellow, violet, pink, turquoise |
| Fibres per tube | 24 |
| Colour Code Standards | Telcordia |
Mechanical Specifications
| Max. tensile strength for installation | 2200 N |
| Min. bend radius operation | 107 mm |
| Minimum tensile load, short-term | 660 N |
| Nominal outer diameter | 10.7 mm |
Optical Characteristics
| Cable cutoff wavelength | 1260 nm |
| Fibre code | Z |
| Fibre name | E9/125 SMF-28® Ultra |
| Fibre Type | Single-mode |
| Fibre compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Performance option code | 20 |
| Fibre core diameter | 8.2 µm |
| Maximum Attenuation | 0.34 dB/km / 0.20 dB/km |
| Serial 1 gigabit ethernet | 5000 MHz*km / - |
| Serial 10 gigabit ethernet | 10000 MHz*km / 40000 MHz*km |
| Typical attenuation | 0.32 dB/km / 0.18 dB/km |
| Wavelengths | 1310 nm / 1550 nm |
Dimensions
| Cable Weight | 85 kg/km |
| Max. cable length per reel/drum | 6000 m |
Binderless FastAccess™ Technology
Innovative cable design that reduces cable access time up to 70 percent and lowers the risk of inadvertent fibre damage
Fully waterblocked loose tube all-dielectric gel-free design
Simple access and no clean up
Fibres/buffer tubes colour coded to Telcordia-Bellcore
Easy identification of the individual tubes and fibres
Available with G.652.D and/or G.657.A1 fibre
Ready for any application
All-dielectric cable construction
Requires no grounding or bonding
