012ZM4-T3E49A20
MiniXtend® HD Cable with Binderless* FastAccess® Technology 12 F (1x12), G.657.A1 190
General Specifications
| Product Number | 012ZM4-T3E49A20 |
| Cable type | Stranded Loose Tube |
| Environment | Outdoor |
| Product type | Dielectric |
| Fibre category | G.657.A1 190 |
| Application | Miniduct |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
| Temperature range, installation | -5 °C to 50 °C |
| Temperature range, operation | -20 °C to 70 °C |
| Temperature range, storage | -30 °C to 70 °C |

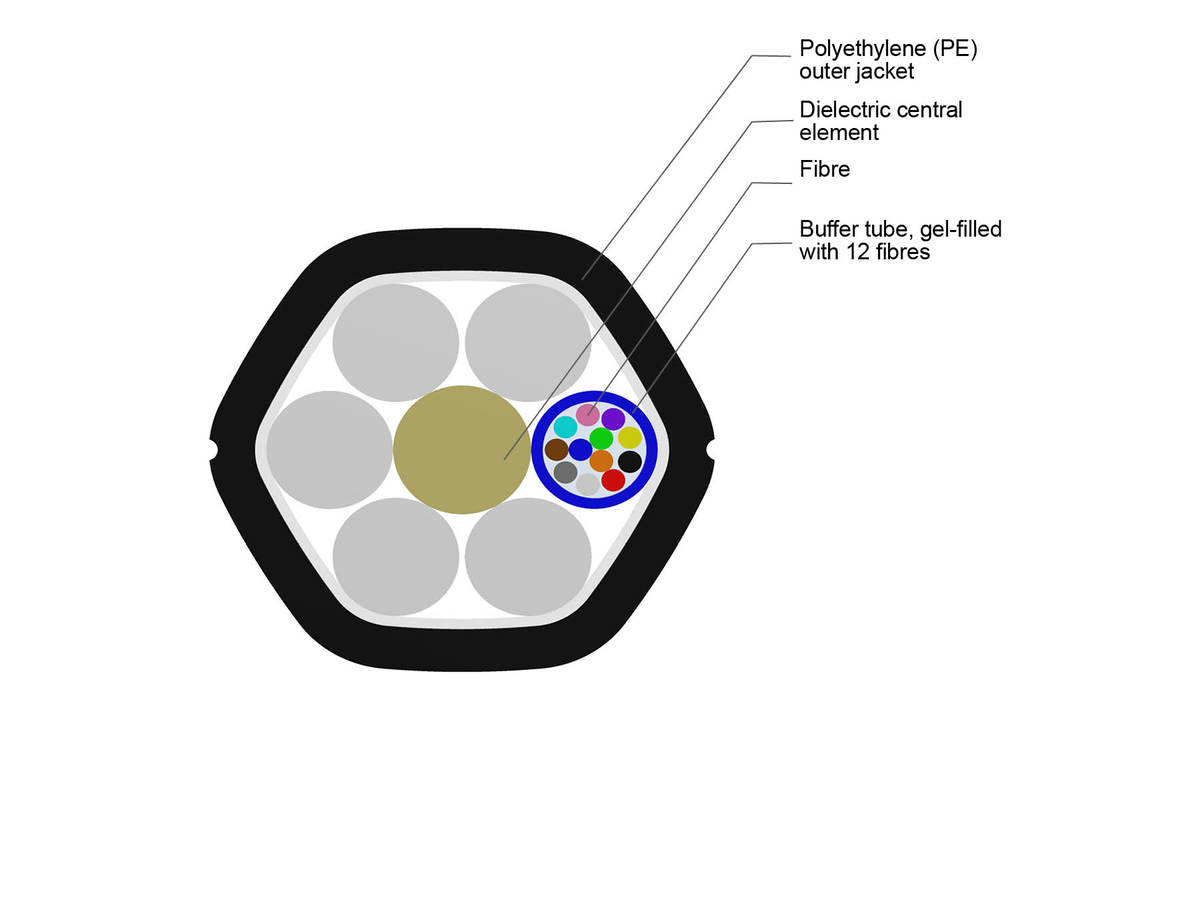

Cable Design
| Cable marking | M#H#S#CORNING#YEAR MINIXTEND®HD FAB CABLE 1x12 G.657.A1 190 LT1.1#ID Number |
| Fibre count | 12 |
| Outer jacket nominal thickness | 0.4 mm |
| Buffer tube diameter | 1.1 mm |
| Number of active tubes | 1 |
| Number of tube positions | 6 |
| Fibres per tube | 12 |
| Colour Code Standards | Telcordia |
Mechanical Specifications
| Crush resistance (reversible), outdoor cable | 500 N/10 cm |
| Max. tensile strength, short-term | 350 N |
| Min. bend radius installation | 90 mm |
| Min. bend radius operation | 68 mm |
| Nominal outer diameter | 4.5 mm |
| Min. Duct Size Diameter | 6 mm |
| Optimal Duct Size | 8 mm |
Optical Characteristics
| Cable cutoff wavelength | 1260 nm |
| Fibre code | Z |
| Fibre name | G.657.A1 Optical fiber with 190-micron outer diameter |
| Fibre Type | Single-mode |
| Fibre compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Performance option code | 49 |
| Cladding diameter | 125 µm |
| Maximum Attenuation | 0.36 dB/km / 0.22 dB/km |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Wavelengths | 1310 nm / 1550 nm |
| PMD (Polarization Mode Dispersion) maximum individual fibre | ≤ 0.1 ps/(nm*km) |
| Coating diameter | 188 µm |
| Fibre category | G.652.D/G.657.A1 |
| Dispersion @ 1550 nm | ≤ 18.6 [ps/(nm ⋅ km)] |
| Dispersion @ 1625 nm | ≤ 23.7 [ps/(nm ⋅ km)] |
Dimensions
| Cable Weight | 18 kg/km |
| Max. cable length per reel/drum | 6000 m |
| Length | 0 mm |
Binderless FastAccess™ Technology
Innovative cable design that reduces cable access time up to 70 percent and lowers the risk of inadvertent fibre damage
Reduced outer cable diameter
High fibre density in microduct systems
Compact and light
CapEx-optimised installations & upgrades
Fully-dielectric
No grounding required
Colour-coded tubes & fibres
Easy identification of tubes & fibres
