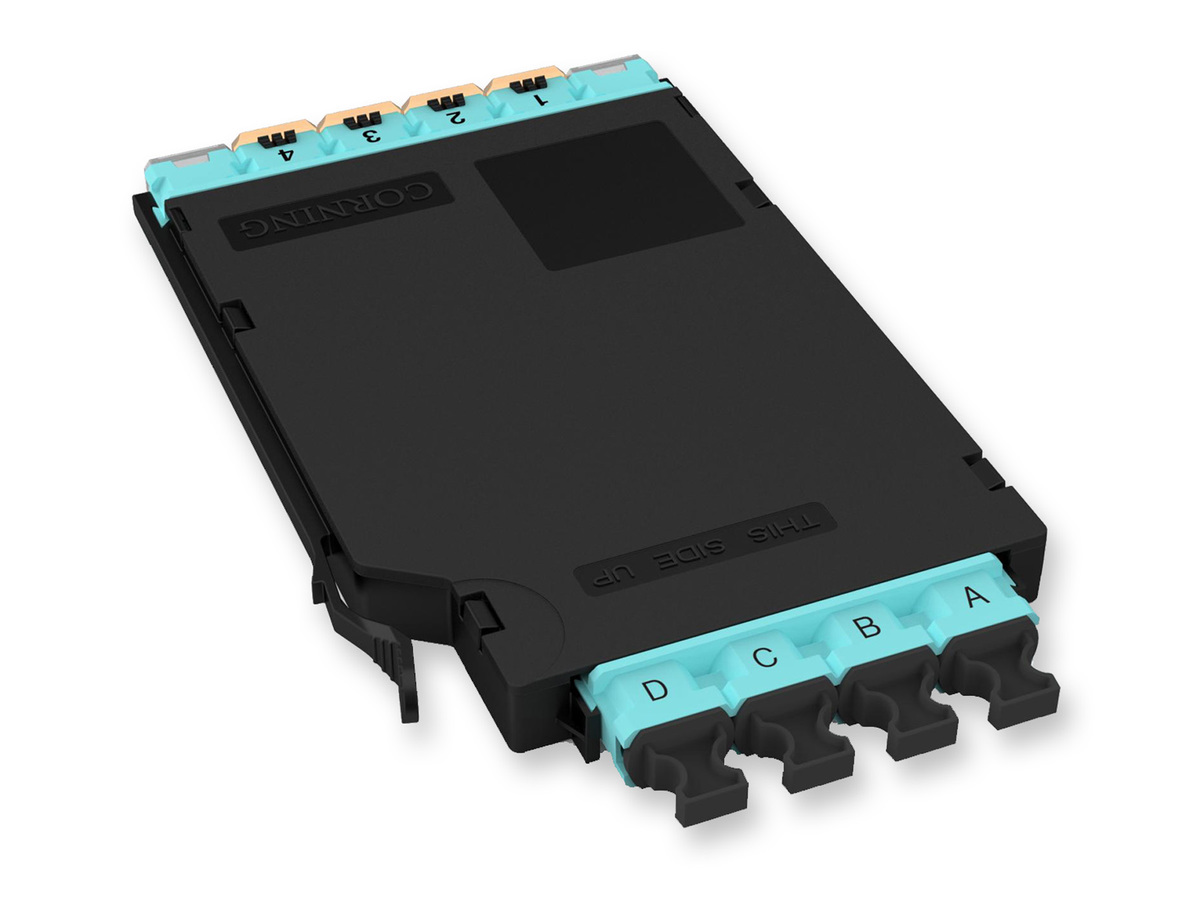

EMM-MM32-9393Q
EDGE™ 4x4 Mesh Module 32 F, MTP® to MTP, 50 µm multimode (OM4)
You might also be interested in
General Specifications
| Product Number | EMM-MM32-9393Q |
| Product type | Panels and Modules |
| Fibre category | Bend-improved 50 µm MM (OM4) |
| Application | Data Centre |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design
| Fibre count | 32 |
| Adapter type back | MTP® |
| Adapter colour back | Turquoise |
| Adapter colour front | Turquoise |
| Adapter type front | MTP® |
| Housing type | Modules |
| Panel or module type | EDGE™ |
| Number of adapters per panel | 4 |
Cable Design
| Fibre count | 32 |
| Polarity | Universal, TIA-568 type-B |
Optical Specification - Hardware
| Module Insertion Loss, Max | 0.5 dB |
| Wavelengths | 850 nm / 1300 nm |
| Fibre category | 50 µm MM (OM4) |
Specifications - Connector A
| Connector type | MTP® (pinned) |
| Ferrule material | Composite |
Specifications - Connector B
| Connector type | MTP® (pinned) |
| Ferrule material | Composite |
Dimensions
| Width | 116 mm |
| Depth | 124 mm |
Ordering Information
| Shipping weight | 0.91 kg |
| Units per delivery | 1/1 |
Four 8-fibre MTP inputs shuffled to four 8-fibre MTP outputs
75% less rack space required
SR4 and PSM4 mesh without breaking connections out into LC connectivity
75% less congestion at MDA
Integrates into all EDGE housings
10% less insertion loss in link and 5% less cost to deploy than traditional breakout to LC connectivity
