012ZK4-13122A20
MiniXtend® Cable, CT A-D(ZN)2Y, 1x12 fibres, CT, Single-mode (SMF 28e® ULTRA)
General Specifications
| Product Number | 012ZK4-13122A20 |
| Cable type | Central Tube |
| Environment | Outdoor |
| Product type | Dielectric |
| Fibre category | Single-mode (OS2) |
| Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) | A-D(ZN)2Y |
| Application | Miniduct |
| Cable geometry | Round |
Standards
| Fibre Standards | TIA/EIA-492CAAB, IEC 60793-2-50 Type B1.3, ISO/IEC 11801 Ed.2.2 |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
| Temperature range, installation | -5 °C to 50 °C |
| Temperature range, operation | -20 °C to 60 °C |
| Temperature range, storage | -25 °C to 60 °C |

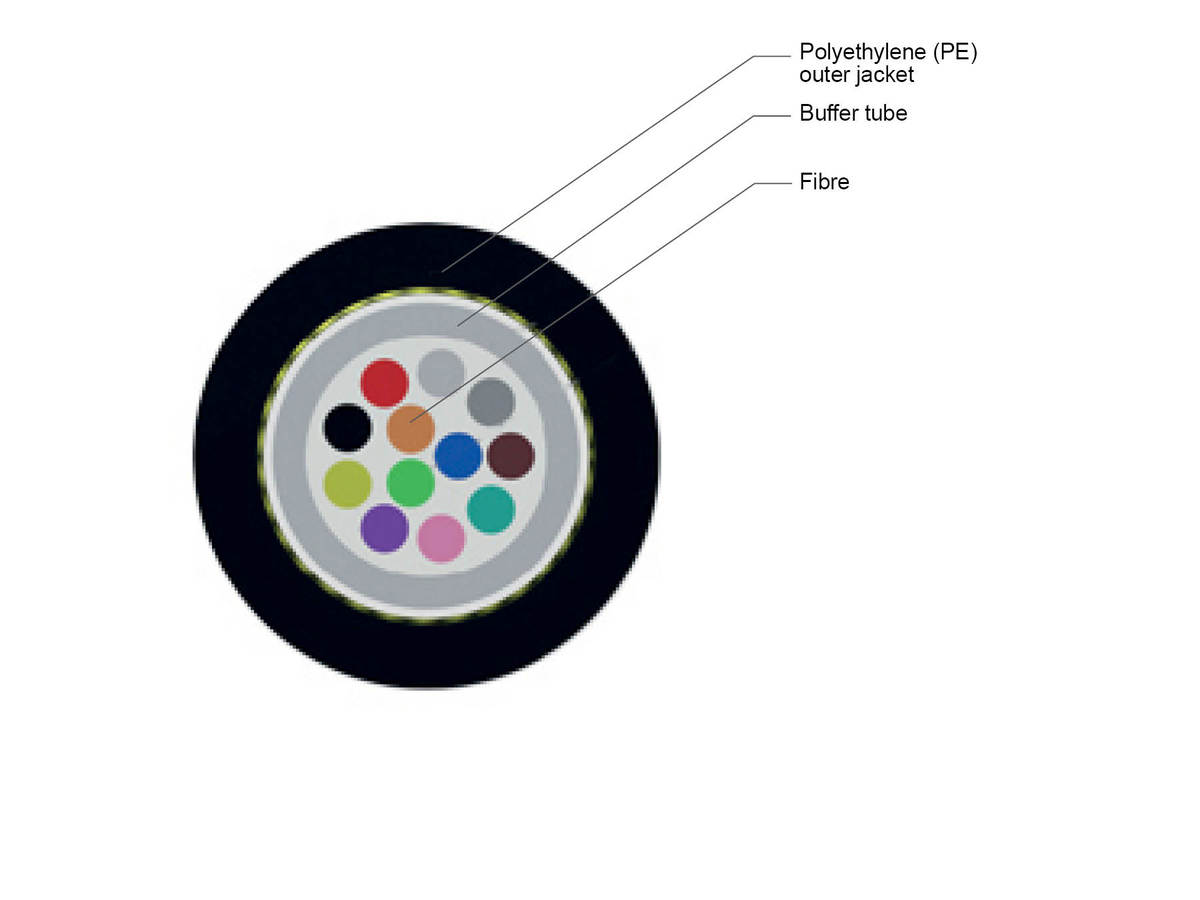

Cable Design
| Fibre count | 12 |
| Outer jacket colour | Black |
| Outer jacket material | Polyethylene (PE) |
| Buffer tube colour | Natural |
| Buffer tube diameter | 1.75 mm |
| Cable marking method | Laser printing |
| Fibre colouring | Blue, orange, green, brown, grey, white, red, black, yellow, violet, pink, turquoise |
| Fibres per tube | 12 |
Mechanical Specifications
| Crush resistance | 1000 N/10 cm |
| Crush resistance (reversible), outdoor cable | 500 N/10 cm |
| Max. tensile strength, short-term | 80 N |
| Min. bend radius installation | 90 mm |
| Min. bend radius operation | 50 mm |
| Nominal outer diameter | 2.5 mm |
| Min. Duct Size Diameter | 3.5 mm |
| Optimal Duct Size | 4 mm |
Dimensions
| Cable Weight | 4.5 kg/km |
| Max. cable length per reel/drum | 6000 m |
Improved cable and fibre density
Reduced cable diameter for installation in micro ducts with 4mm minimum inner diameter
Fully-dielectric
No grounding required
Optimised for air-assisted install in microducts
Capable of installation distances greater than 2000 m (6560 ft) at speeds up to 150 m/min (490 ft/min)
SMF-28e+®according to ITU-T G.652.D
Transmission security, low attenuation and polarization mode dispersion
