001UB4-13722DF9
ROC™ Drop Dielectric Cable with FastAccess™ Technology A-V (2ZN) 2Y 1x1E9 ZBL
General Specifications
| Product Number | 001UB4-13722DF9 |
| Cable type | Central Tube |
| Environment | Outdoor |
| Product type | Self-Supporting |
| Fibre category | ClearCurve® ZBL |
| Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) | A-V (2ZN) 2Y |
| Application | Aerial, Duct, Drop |
| Cable geometry | Other |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Waterblocking | IEC 60794-1-22 Method F5B |
| Level of corrosion | Non-corrosive according to IEC 60754-2 |
Environmental Conditions
| Temperature range, installation | -5 °C to 50 °C |
| Temperature range, operation | -40 °C to 70 °C |
| Temperature range, storage | -40 °C to 70 °C |

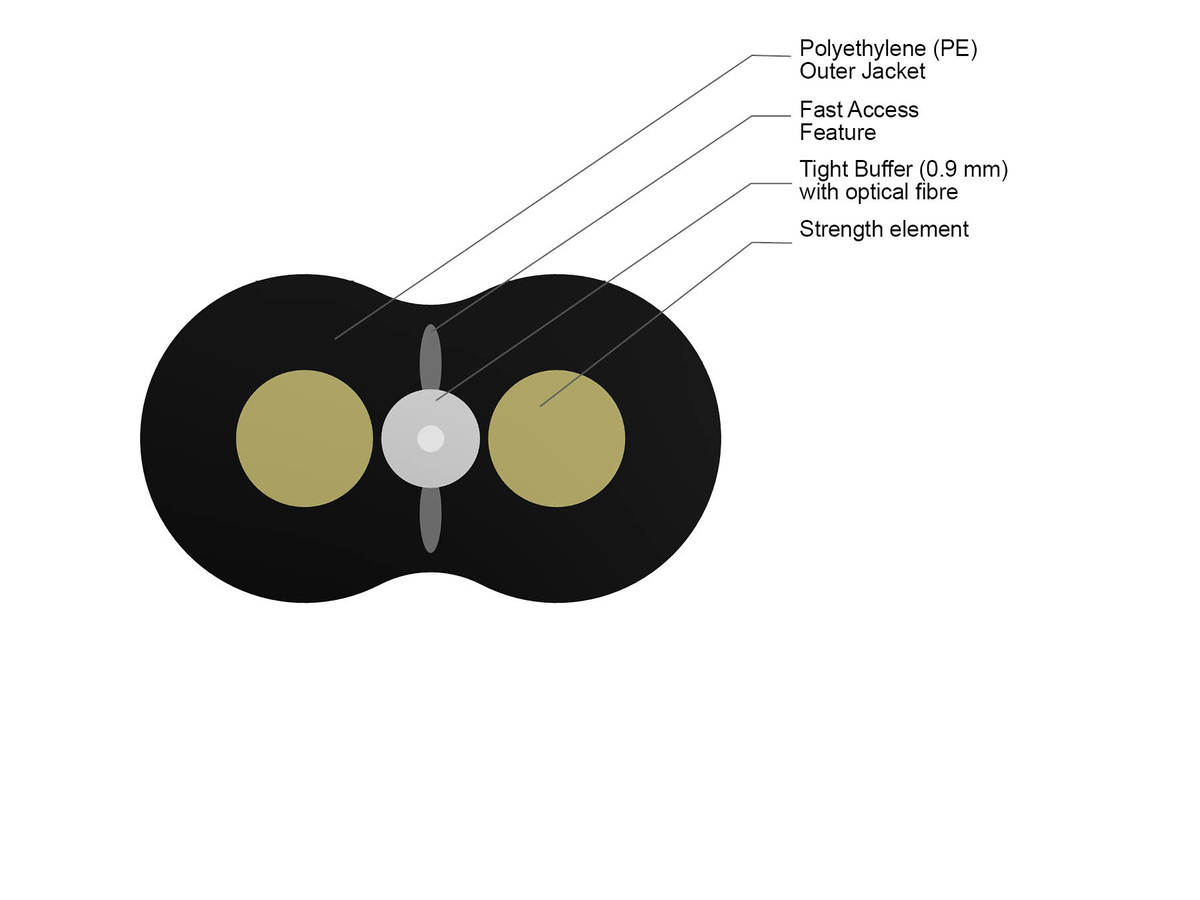

Cable Design
| Cable marking | Metre - CORNING - Year (20xx) - 1E9/125 CLEARCURVE ZBL R5 |
| Central element | Dielectric |
| Fibre count | 1 |
| Outer jacket colour | Black |
| Outer jacket material | Polyethylene (PE) |
| Outer jacket nominal thickness | 0.8 mm |
| Buffer tube diameter | 0.9 mm |
| Cable marking method | Laser printing |
| Cable marking colour | White |
| Fibres per tube | 1 |
Mechanical Specifications
| Crush resistance | 1500 N/10 cm |
| Max. tensile strength, long-term | 400 N |
| Max. tensile strength, short-term | 1350 N |
| Min. bend radius operation | 60 mm |
| Nominal outer diameter | 5.4 mm x 3 mm |
Dimensions
| Length | 0 mm |
| Cable Weight | 15.2 kg/km |
FastAccess technology
Saves time and reduces complexity
No special tools
Ease of use
Backwards compatible
Enables fast connectorization and splicing
Innovative cable design
Retains industry standard hardware compatibility such as wedge clamps
Dielectric
Eliminates bonding and grounding requirements
Compact, robust design
Improves ease of handling and installation; reduces transportation and storage costs
