001JBQ-13725-20
DualDrop™ Round Drop Cable with FastAccess™ Technology, A-VQH(ZN)2Y 1F, Single-mode E9/125 LBL
General Specifications
| Product Number | 001JBQ-13725-20 |
| Installation Methods | Aerial, Duct, Horizontal, Drop |
| Cable type | Central Tube |
| Environment | Indoor/Outdoor |
| Product type | Dielectric |
| Fibre category | ClearCurve® LBL |
| Flame rating | LSZH/FRNC |
| Cable geometry | Round |
Standards
| Reaction to Fire | Inner Subunit: Dca-s1a, d0, a1 |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code® (NEC®) OFCP, CSA FT-6 |
| 设计和测试标准 | IEC 60794 |
| 阻水材料 | IEC 60794-1-22 方法 F5B |
| 对火反应要求 | 根据 EN 50575 和 EN 13501-6 对火灾的反应 |
| 烟浓度 | 低烟到 IEC 61034 |
| 卤素含量测试 | 无卤根据IEC 60754-1 |
| 腐蚀水平 | 对 IEC 的无腐蚀性60754-2 |
Environmental Conditions
| Temperature range, installation | -5 °C to 50 °C |
| Temperature range, operation | -40 °C to 70 °C |
| Temperature range, storage | -40 °C to 70 °C |

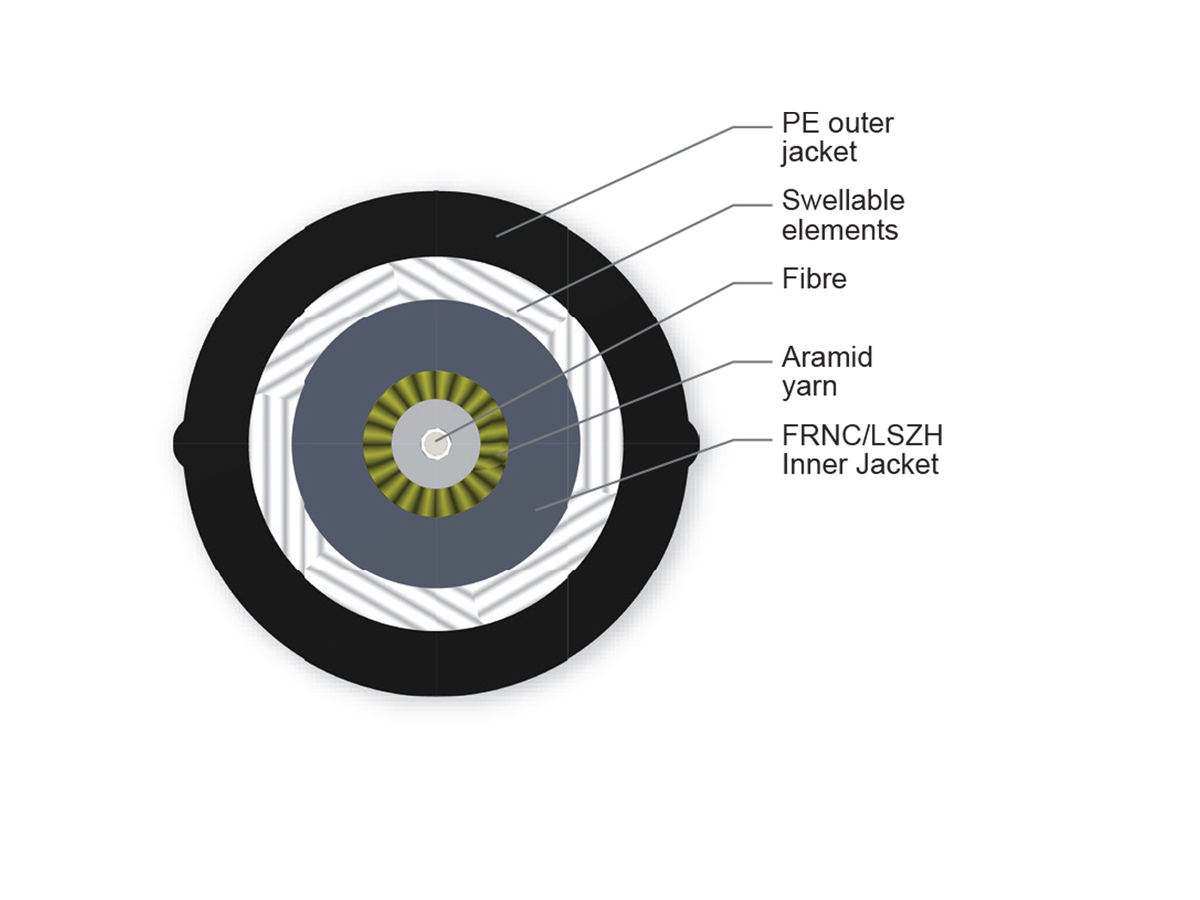

Cable Design
| Cable marking | Metre - Handset - Sine - CORNING - Year - A-VQH(ZN)2Y 1E9/fibre type - FastAccess Technology |
| Fibre count | 1 |
| Buffer tube colour | White |
| Outer jacket colour | Black |
| Buffering diameter | 900 µm |
| Outer jacket material | Polyethylene (PE) |
| Tensile strength elements and/or armouring - Layer 1 | Water-swellable dielectric strength members |
| Fibre colouring | Natural |
| Subunit colour | Ivory |
| Subunit jacket material | Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material |
| Subunit tensile strengths elements armouring | Aramid yarn strength members |
| Tensile strength elements and/or armouring | Water-swellable dielectric strength members |
| Tight buffer colour | White |
| Tight buffer diameter | 0.9 mm |
| Flame rating | Outer Jacket: N/A Inner Subunit: LSZH/FRNC, DCA S2 D1 A1 |
Mechanical Specifications
| Crush resistance (reversible), indoor subunit | 500 N/10 cm |
| Crush resistance (reversible), outdoor cable | 2000 N/10 cm |
| Max. tensile strength for installation | 1000 N |
| Max. tensile strength, long-term | 300 N |
| Mininum Bend-Radius Installation Subunit | 30 mm |
| Nominal indoor subunit diameter | 2.9 mm |
| Water penetration (0.1bar/24 h) | 3 m |
光学特性
| 光纤代码 | J |
| 性能选项代码 | 25 |
| 光纤类别 | OS2 |
| 光纤类型 | Single-mode (OS2) / 250 µm |
| 光纤名称 | ClearCurve® LBL |
| 最大衰减 | 0.38 dB/km / 0.38 dB/km / 0.25 dB/km |
| 波长 | 1310 nm / 1383 nm / 1550 nm |
| 光纤符合性 | ITU-T G.652.D and ITU-T G.657.A2/B2 |
| 光纤纤芯直径 | 8.2 µm |
| 包层直径 | 125 µm |
| 涂层直径 | 242 µm |
| Dispersion @ 1550 nm | ≤ 18 [ps/(nm*km)] |
| Dispersion @ 1625 nm | ≤ 23 [ps/(nm*km)] |
| 在1550nm 7.5mm 半径下的光纤弯曲性能 | ≤ 0.4 dB/turn |
| 光缆截止波长 | 1260 nm |
| 在1310nm的模场直径 | 8.6 µm |
| 1550nm的模场直径 | 9.6 µm |
| PMD链路设计值 | ≤ 0.06 ps/√km |
| PMD最大单独光纤 | ≤ 0.2 ps/√km |
| 并行光40G以太网 | 150 m / - |
Dimensions
| Cable Weight | 27 kg/km |
| Max. cable length per reel/drum | 2000 m |
Flexible, robust cable
Solves unique challenges associated with MDU deployments
Compact, robust design
Meets industry standards and eliminates installation complexity
2.9 mm FRNC/LSZH subunit in a rugged outdoor cable
Eliminates need for termination transition in indoor ONT
Small subunit diameter and bend-radius
Easy installation in space-constrained areas
Available in preconnectorized assemblies
Easy field installation and reduced labor costs
