072FPC-T3101P20
ALTOS® Loose Tube Steel Armour Outdoor Cable LT 2.0 HDPE 6x12 E10 LEAF® ITU G655
Allgemeine Spezifikation
| Produktnummer | 072FPC-T3101P20 |
| Cable type | Loose tube |
| Environment | Outdoor |
| Product type | Corrugated steel armour |
| Fibre category | SM NZ-DSF (G.655) |
| Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) | A-DQ(ZN)(SR)2Y |
| Application | Direct Buried, Duct |
| Cable geometry | Round |
Standards
| Fibre Standards | ITU-T G.655 (all tables), IEC 60793-2-50 Type B4, TIA/EIA-492-EA00, Telcordia GR-20 |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | IEC 60794-3-10 |
| Waterblocking | IEC 60794-1-2 F5 |
Environmental Conditions
| Temperature range, installation | -5 °C bis 70 °C |
| Temperature range, operation | -30 °C bis 70 °C |
| Temperature range, storage | -40 °C bis 70 °C |

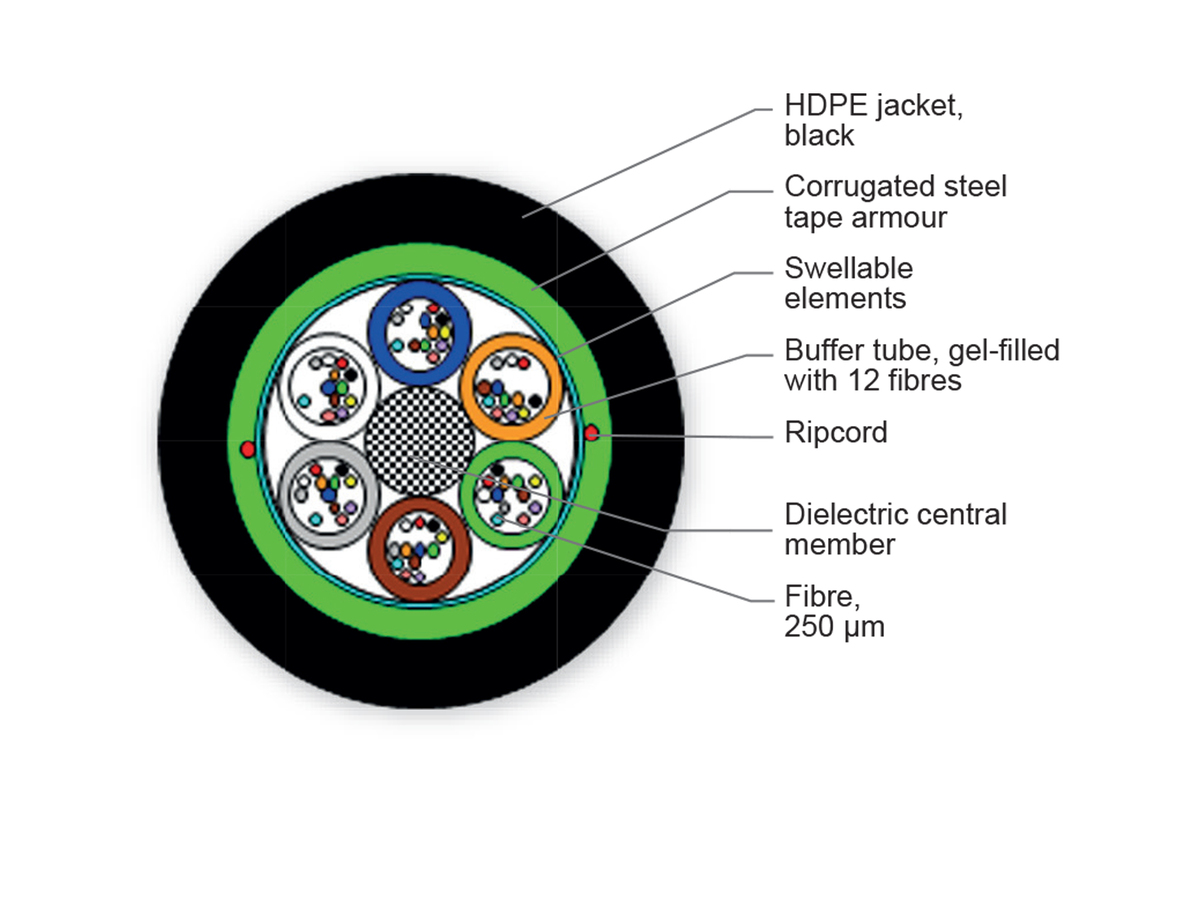

Cable Design
| Cable marking | Metre - Handset - Sine - CORNING - Year - ALTOS (R) A-DQ(ZN)(SR)2Y 6X12 E10 LT 2.0 |
| Central element | GRP |
| Fibre count | 72 |
| Number of ripcords | 2 |
| Buffer tube colour coding, layer 1 | Blue, orange, green, brown, grey, white |
| Outer jacket colour | Black |
| Outer jacket material | High Density Polyethylene (HDPE) |
| Outer jacket minimum thickness | 1.3 mm |
| Outer jacket nominal thickness | 1.3 mm |
| Buffer tube colour | Blue, orange, green, brown, grey, white |
| Buffer tube diameter | 2 mm |
| Central element diameter | 2.1 mm |
| Number of active tubes | 6 |
| Number of tube positions | 6 |
| Tape | Water-swellable |
| Tape, layer 1 | Water-swellable |
| Tensile strength elements and/or armouring | Corrugated steel tape armour |
| Fibre colouring | Blue, orange, green, brown, grey, white, red, black, yellow, violet, pink, turquoise |
| Fibres per tube | 12 |
Mechanical Specifications
| Crush resistance | 2500 N/10 cm |
| Max. tensile strength for installation | 1500 N |
| Min. bend radius installation | 200 mm |
| Min. bend radius operation | 100 mm |
| Nominal outer diameter | 10 mm |
Optical Characteristics
| Fibre code | F |
| Performance option code | 01 |
| Fibre category | OS2 |
| Fibre Type | Single-mode (OS2) / 250 µm |
| Fibre name | LEAF® |
| Maximum Attenuation | - / - / 0.25 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fibre compliance | ITU-T G.655.D |
Dimensions
| Cable Weight | 104 kg/km |
| Max. cable length per reel/drum | 6000 m |
1.3 mm HDPE jacket thickness
Smaller cable diameter with rugged design for easy installation in smaller ducts
Corrugated steel armouring
Rodent, mechanical protection and direct buried applications
UV- and microbe-resistant
Can be installed in ducts or conduits
Waterblocking technology
OSP (outdoor) applications
Fibres/buffer tubes colour coded to Telcordia-Bellcore
Easy identification of the individual tubes and fibres
Dry cable core by means of water swellable elements
Allows efficient and craft-friendly cable preparation in outdoor applications
