Reduced length, 0.2-in, 12 F Reduced length, 0.2-in, 12 F Reduced length, 0.2-in, 12 F

M67-060

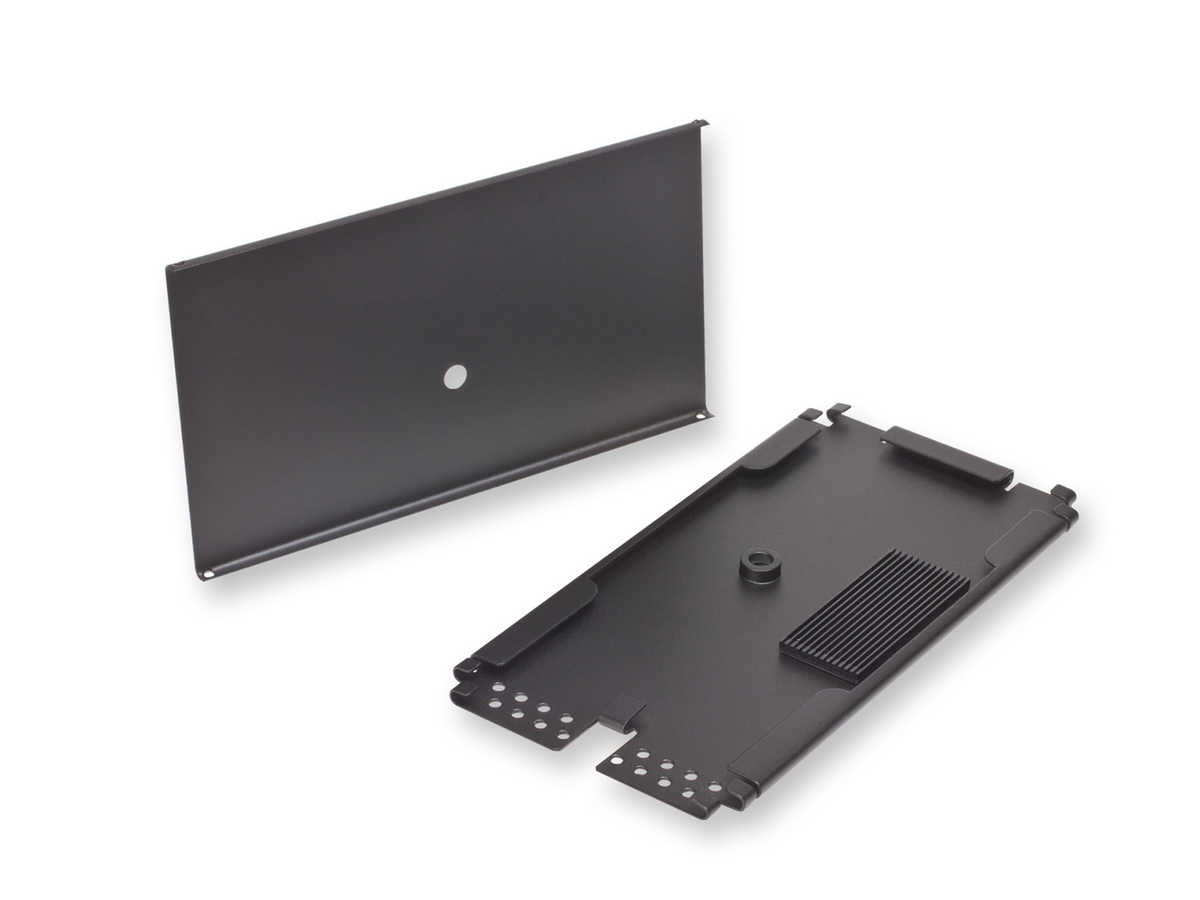

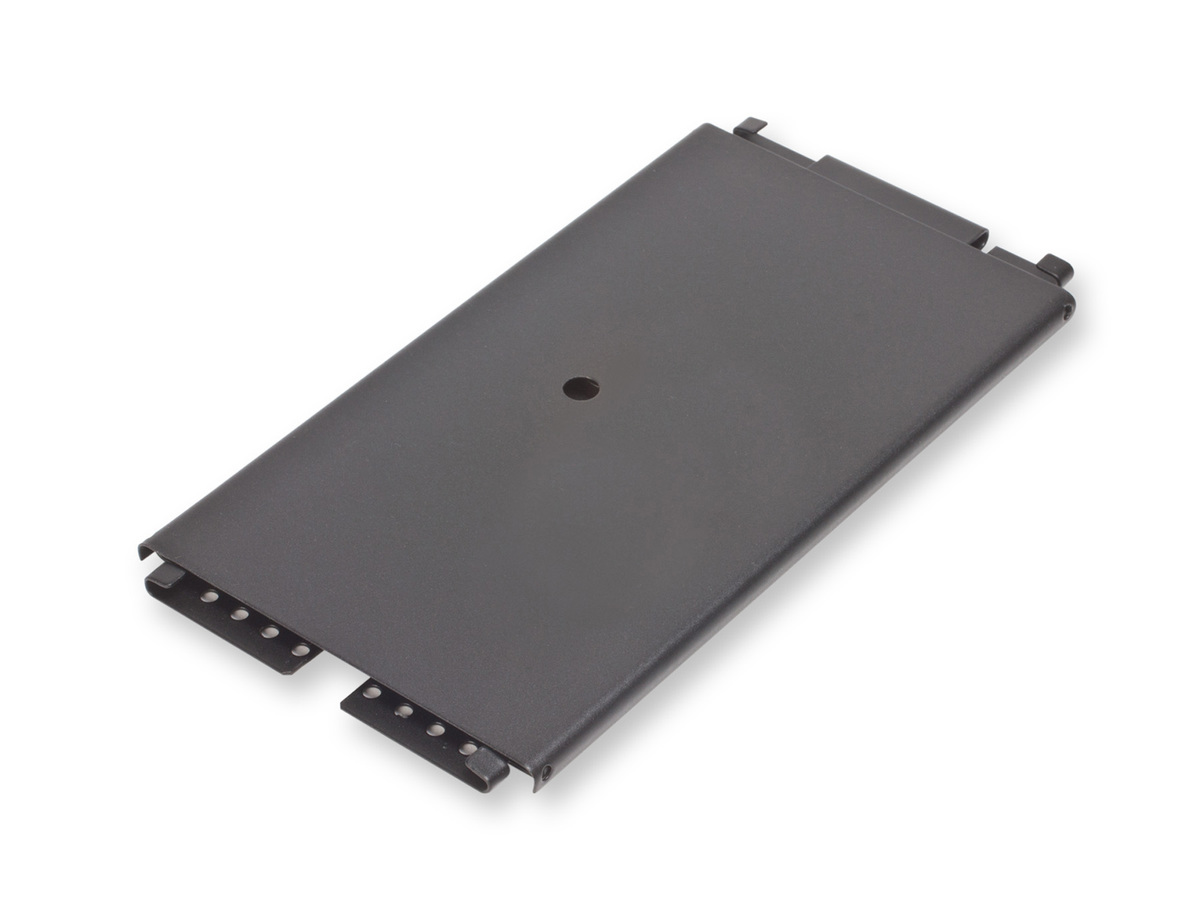

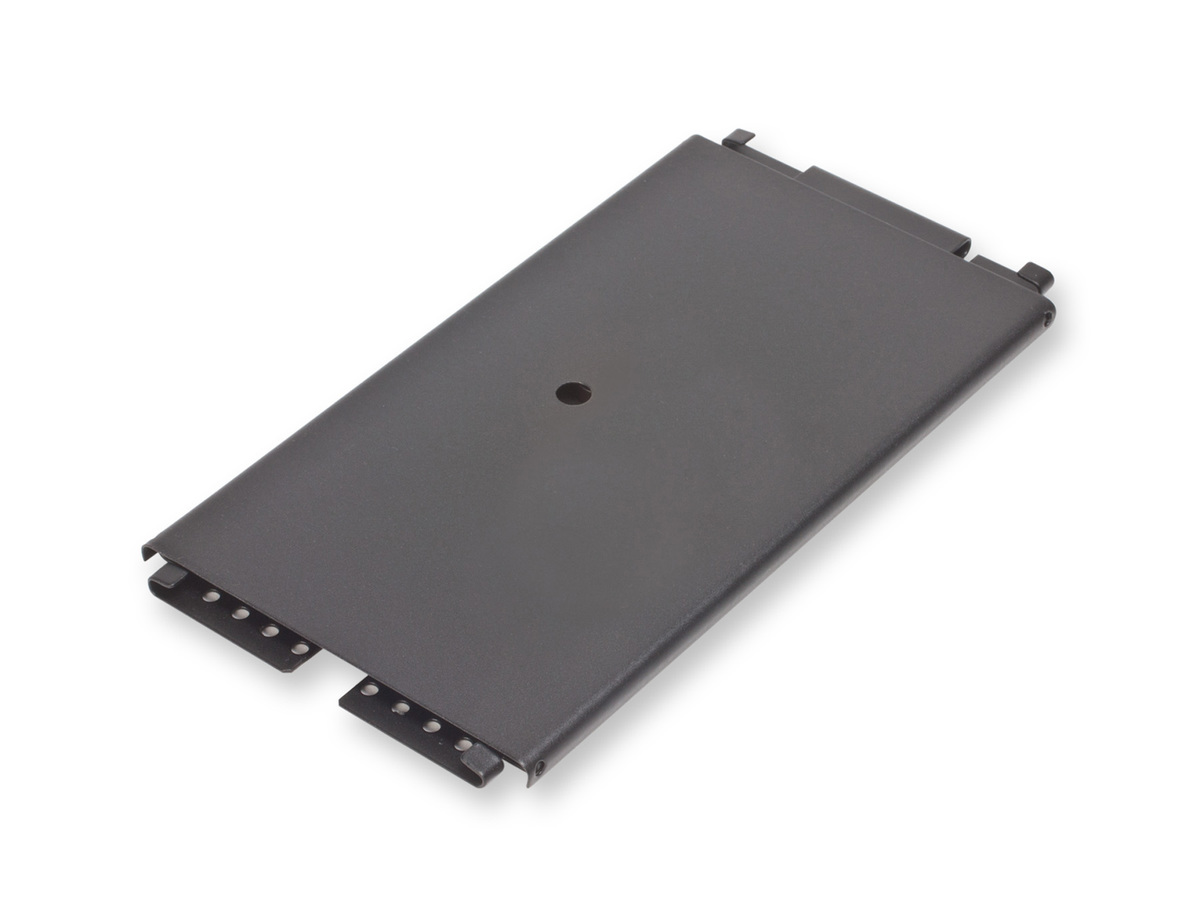

Splice Tray, RTV Splices  Reduced length, 0.2-in, 12 F

Typically ships in 14 day(s) Actual lead time confirmed upon receipt of order.
E-mail
Product Specifications Product Family Specification

Specifications
General Specifications
Product Number M67-060
Product Type Splice Trays
Technology Fusion Splice
Application Carrier Networks,  CATV Environments,  Central Office,  Enterprise Networks
Standards
RoHS Free of hazardous substances according to RoHS 2011/65/EU
Design
Splice Tray Type Standard with organizers for RTV splice protectors
Splice Tray Category 2R
Splice Protectors Type RTV (Room Temperature Vulcanizing) fusion sealant
Splice Tray Capacity Single Fiber 12
Dimensions
Height 5 mm (0.2 in)
Width 172 mm (6.77 in)
Depth 89 mm (3.5 in)
Ordering Information
Package Contents Installation Guide; splice tray base with splice holder; splice tray cover
Units per Delivery 1/1
Technical Documents
Feature/Benefits
Metal trays powder coated
Ruggedness and durability
Used as a component of Corning's fiber distribution frame
Flipcard for easier record keeping
Fiber loop retention
Controls the bend radius
Positive holding action
Maximum splice protection
