001UB4-13722DF9

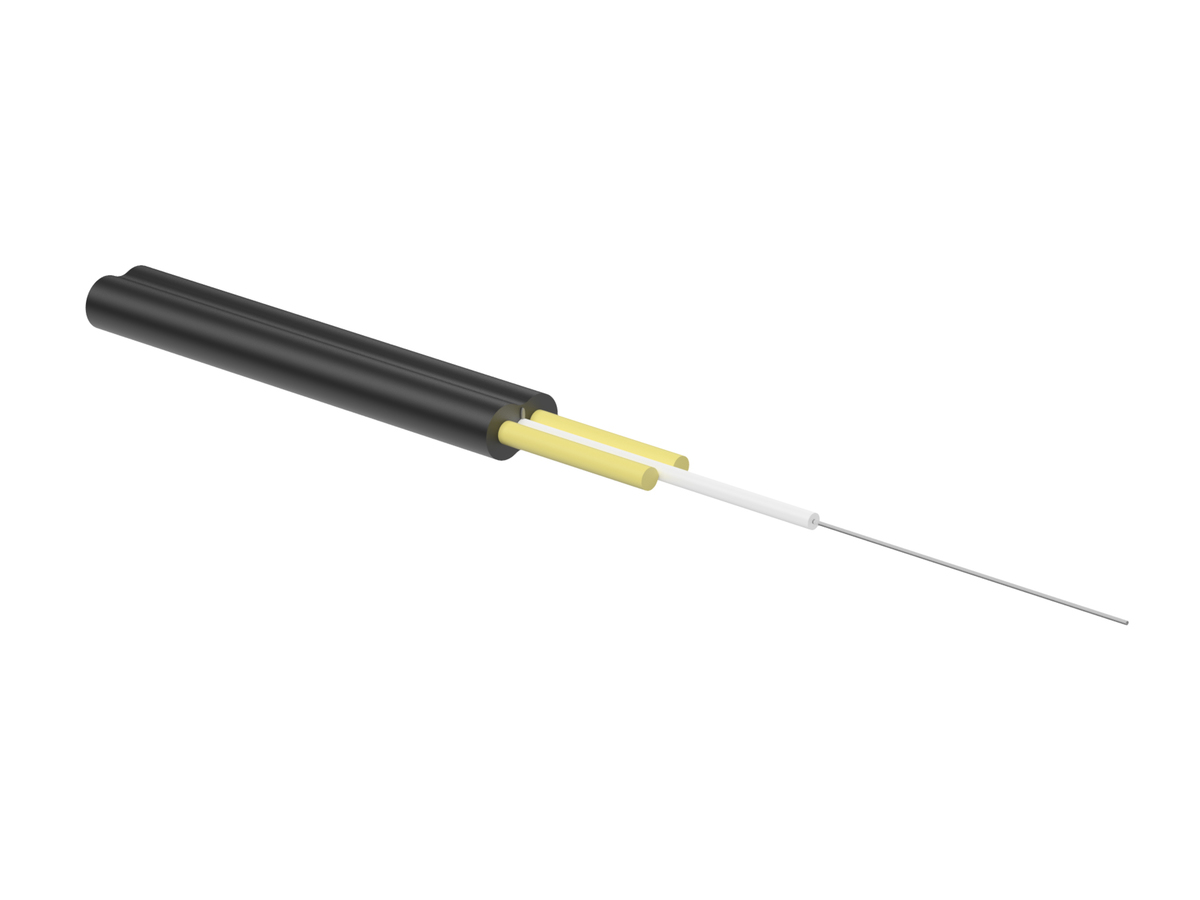

ROC™ Drop Dielectric Cable with FastAccess® Technology A-V (2ZN) 2Y 1x1E9 ZBL
General Specifications
| Product Number | 001UB4-13722DF9 |
| Cable Type | Single Tube |
| Environment | Outdoor |
| Product Type | Self-Supporting |
| Fiber Category | ClearCurve® ZBL |
| Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) | A-V (2ZN) 2Y |
| Application | Aerial, Duct, Drop |
| Cable geometry | Other |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Waterblocking | IEC 60794-1-22 Method F5B |
| Level of corrosion | Non-corrosive according to IEC 60754-2 |
Environmental Conditions
| Temperature Range, Installation | -5 °C to 50 °C (23 °F to 122 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
Cable Design
| Cable Marking | Meter - CORNING - Year (20xx) - 1E9/125 CLEARCURVE ZBL R5 |
| Central Element | Dielectric |
| Fiber Count | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Outer Jacket Nominal Thickness | 0.8 mm |
| Buffer Tube Diameter | 0.9 mm |
| Cable Marking Method | Laser printing |
| Cable Marking Color | White |
| Fibers per Tube | 1 |
Mechanical Specifications
| Crush Resistance | 1500 N/10 cm |
| Max. Tensile Strength, Long-Term | 400 N |
| Max. Tensile Strength, Short-Term | 1350 N |
| Min. Bend Radius Operation | 60 mm |
| Nominal Outer Diameter | 5.4 mm x 3 mm |
Dimensions
| Length | 0 mm |
| Cable Weight | 15.2 kg/km |
FastAccess technology
Saves time and reduces complexity
No special tools
Ease of use
Backwards compatible
Enables fast connectorization and splicing
Innovative cable design
Retains industry standard hardware compatibility such as wedge clamps
Dielectric
Eliminates bonding and grounding requirements
Compact, robust design
Meets industry standards and eliminates installation complexity
