HE87808GLZ-PB003M

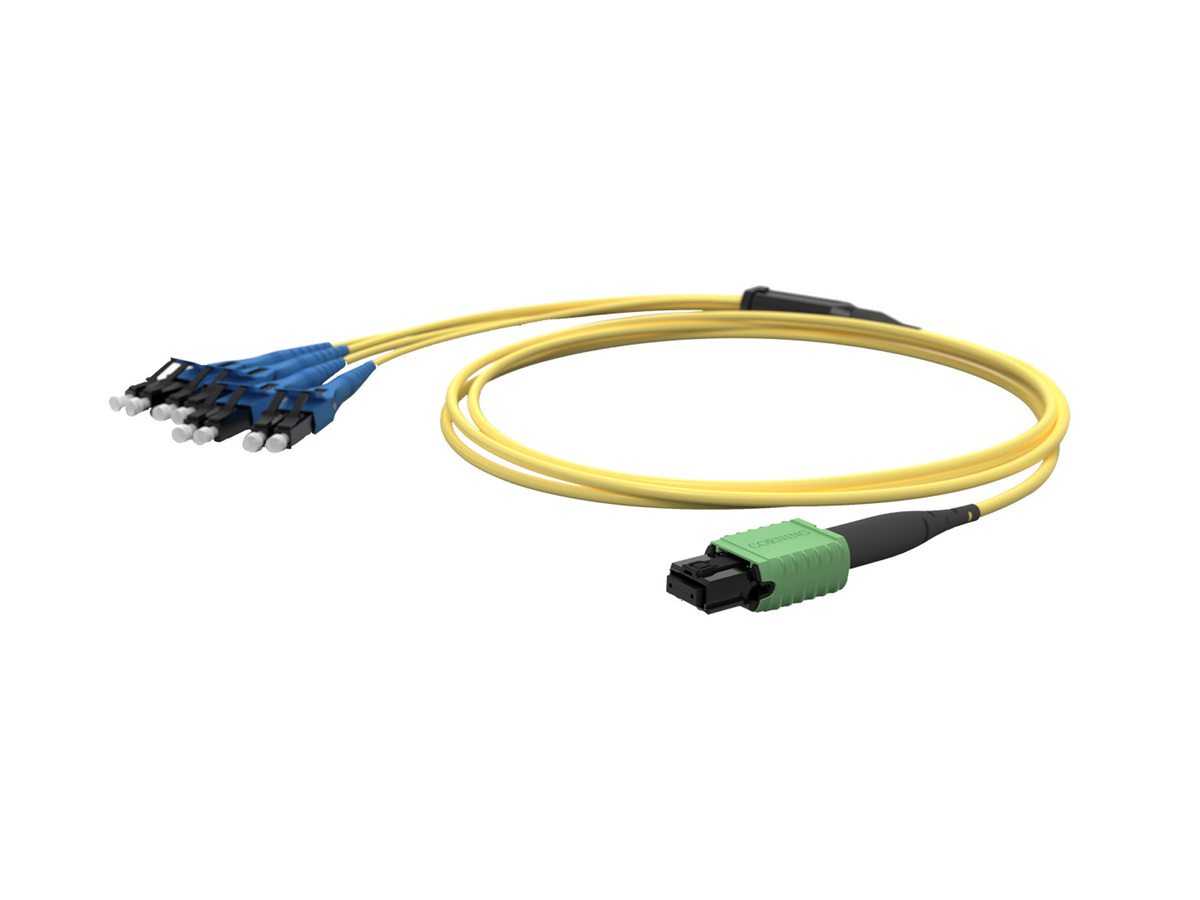

EDGE8® Non-Staggered Harness 8F, Bend-improved single-mode (OS2), MTP® PRO (non-pinned), LSZH, TIA-568 Type-B polarity, with 1800 mm legs, 3 m
General Specifications
| Product Number | HE87808GLZ-PB003M |
| Flame rating | LSZH/FRNC |
| Fibre category | Bend-improved Single-Mode (OS2) |
| Cable assembly type | EDGE8® Harness |
| Cable Type | Interconnect |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Intermateability | TIA/EIA-604-5 / TIA/EIA-604-5 |
Environmental Conditions
| Temperature range, installation | 0 °C to 50 °C (32 °F to 122 °F ) |
| Temperature range, operation | -10 °C to -60 °C (14 °F to -76 °F ) |
Design
| Fibre count | 8 |
| Polarity | TIA-568 type-B |
Mechanical Characteristics
| Nominal outer diameter | 2 mm |
| Max. tensile strength for installation | 220 N |
| Min. bend radius installation | 30 mm |
| Min. bend radius operation | 10 mm |
Optical Characteristics
| Fibre code | Z |
| Performance option code | 20 |
| Fibre category | OS2 |
| Fibre Type | Single-mode (OS2) / 250 µm |
| Fibre name | Bend-Improved Single-mode (OS2) |
| Maximum Attenuation | 0.34 dB/km / 0.34 dB/km / 0.20 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fibre compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Fibre core diameter | 8.2 µm |
| Cladding diameter | 125 µm |
| Coating diameter | 242 µm |
| Dispersion @ 1550 nm | ≤ 18 [ps/(nm*km)] |
| Dispersion @ 1625 nm | ≤ 22 [ps/(nm*km)] |
| Cable cutoff wavelength | 1260 nm |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Mode-Field Diameter at 1550 nm | 10.4 µm |
| PMD Link Design Value | ≤ 0.04 ps/√km |
| PMD (Polarization Mode Dispersion) maximum individual fibre | ≤ 0.1 ps/√km |
Specifications - Connector A
| Polish | APC |
| Insertion loss, max. | 0.35 dB |
| Boot colour | Black |
| Connector type | MTP® PRO (non-pinned) |
| Ferrule material | Composite |
| Boot type | Individual |
| Reflectance | < -55 dB |
Specifications - Connector B
| Insertion loss, max. | 0.25 dB |
| Connector type | LC Uniboot |
| Ferrule material | Ceramic |
| Reflectance | < -55 dB |
Furcation - Connector A
| Leg length non-unit | Non-staggered (1800 mm/72 in) |
| Leg Length | 609.6 mm |
| Furcation type | EDGE™ Harness Plug |
| Leg colour | Yellow |
| Leg diameter | 2 mm |
Dimensions
| Length | 3 m |
| Cable Weight | 4.6 kg/km |
Ordering Information
| Units per delivery | 1/1 |
Slim round 2-fiber interconnect cable
Improves airflow and reduces congestion
MTP® PRO connectors
Allows for pinning and poliarity changes in the field
Low-loss connectivity
Enables system design flexibility
Bend-improved fibre
Allows tighter cable bends for slack storage and routing, less risk of downtime due to pinched or bent cables
Corning® CleanAdvantage™ technology and optimised dust cap
Eliminates the need for scoping and cleaning prior to initial field connection
