216TUF-T4180D20
FREEDM® Loose Tube, Gel-Free Cable, Riser 216 F, 50 µm multimode (OM3)
Especificações gerais
| Número do produto | 216TUF-T4180D20 |
| Installation Methods | Aerial, Direct Buried, Duct, Horizontal |
| Cable Type | Loose Tube |
| Environment | Indoor/Outdoor |
| Product Type | Dielectric |
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | Riser (OFNR) |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code® (NEC®) OFNR, CSA OFN FT-4 |
| Common Installations | Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code® (NEC®) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696 |
Environmental Conditions
| Temperature Range, Installation | -10 °C para 60 °C (14 °F para 140 °F ) |
| Temperature Range, Operation | -40 °C para 70 °C (-40 °F para 158 °F ) |
| Temperature Range, Storage | -40 °C para 70 °C (-40 °F para 158 °F ) |

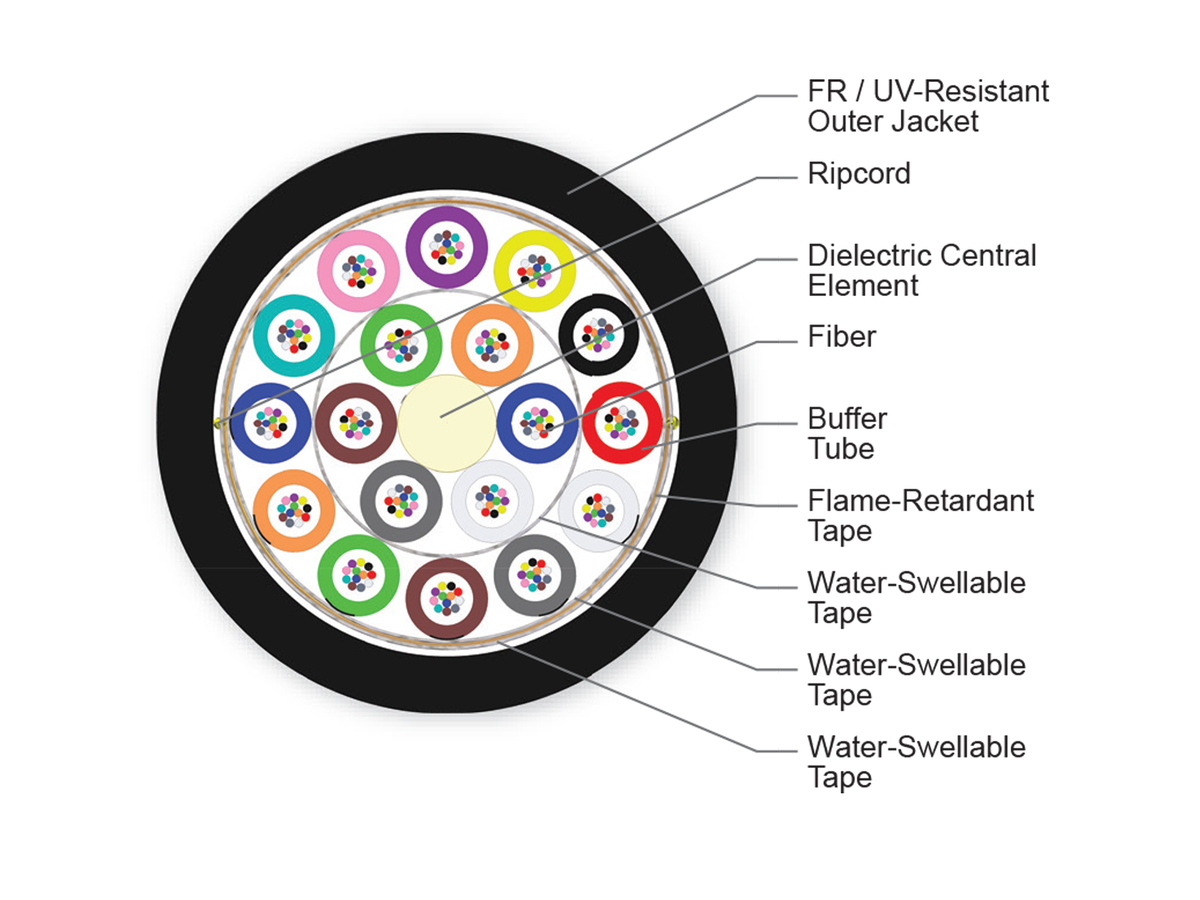

Cable Design
| Central Element | Dielectric |
| Fiber Count | 216 |
| Number of Ripcords | 2 |
| Buffer Tube Color Coding, Layer 1 | Blue, Orange, Green, Brown, Slate, White |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Number of Active Tubes | 18 |
| Number of Tube Positions | 18 |
| Tape | Water-swellable |
| Tape, Layer 2 | Water-swellable |
| Tape, Layer 3 | Flame-retardant tape |
| Tape, Layer 4 | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Color Code Standards | Telcordia |
Mechanical Specifications
| Max. Tensile Strength, Long-Term | 810 N (182.1 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 266 mm (10.47 in) |
| Min. Bend Radius Operation | 177 mm (6.97 in) |
| Nominal Outer Diameter | 17.7 mm (0.7 in ) |
Características ópticas
| Código da fibra | T |
| Código de opção de desempenho | 80 |
| Categoria da fibra | OM3 |
| Tipo de fibra | Multimodo |
| Nome da fibra | 50 µm MM (OM3) |
| Atenuação máxima | 3.0 dB/km / 1.0 dB/km |
| Comprimentos de onda | 850 nm / 1300 nm |
| Conformidade de fibra | IEC 60793-2-10 |
| Diâmetro do núcleo da fibra | 50 µm |
| Ethernet 1 Gigabit serial | 1000 m / 600 m |
| Ethernet 10 Gigabit serial | 300 m / - |
| Largura de banda modal efetiva mínima (EMB) | 950 MHz*km / - |
| Largura de banda mín. de lançamento sobrecarregado (OFL) | 1500 MHz*km / - 500 MHz*km |
Dimensions
| Cable Weight | 225 kg/km (151.19 lb/1000 ft) |
Livre-Gel tecnologia waterblocking
Preparação cabo-friendly Artesanato
Design do tubo loose
Desempenho estável e compatibilidade com todos os tipos de fibras comuns
Tubos e fibras codificadas por cor
Identificação fácil e rápida
Estrutura totalmente dielétrica
Não exige aterramento ou conexão
Instalações comuns
Aéreo espinado e duto externos; riser vertical interno e horizontal de uso geral de acordo com o Artigo 770 do National Electrical Code® (NEC®)
