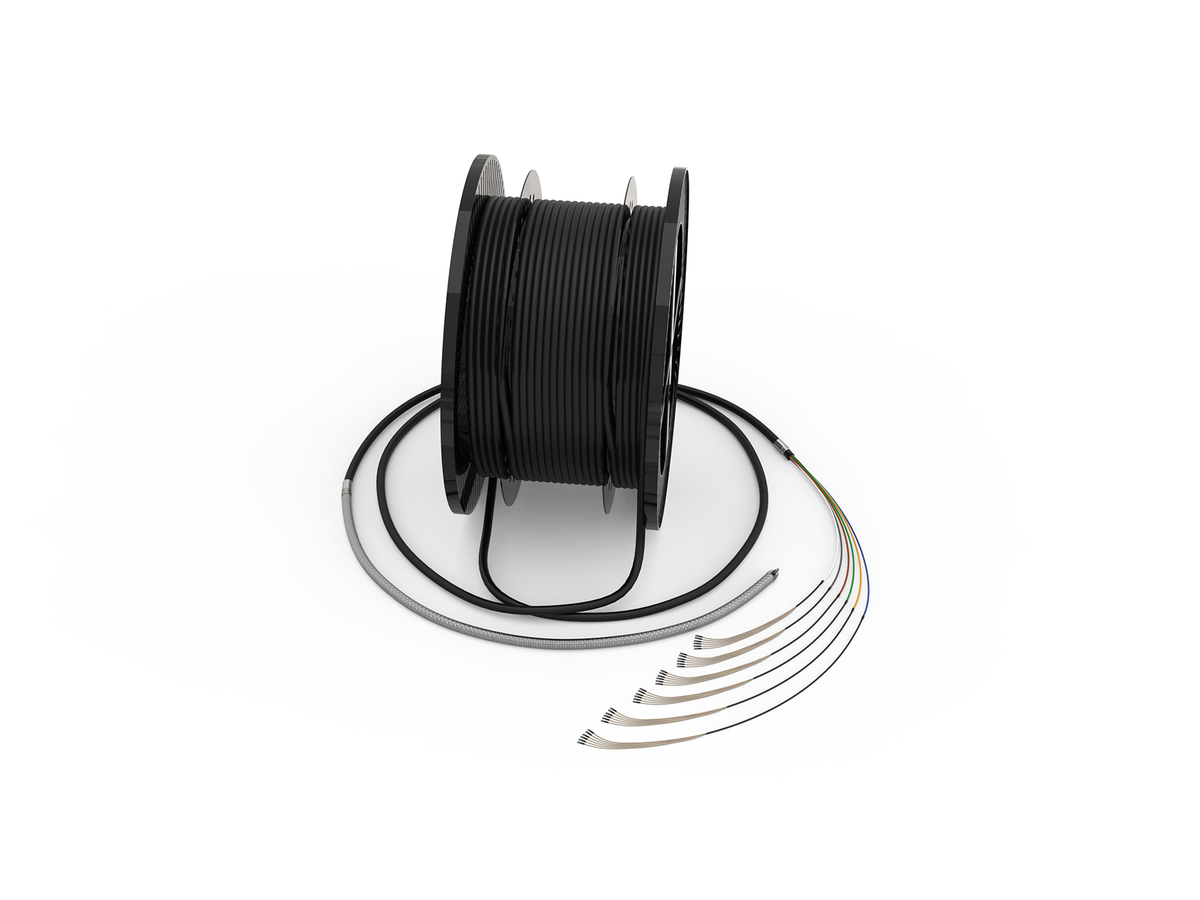

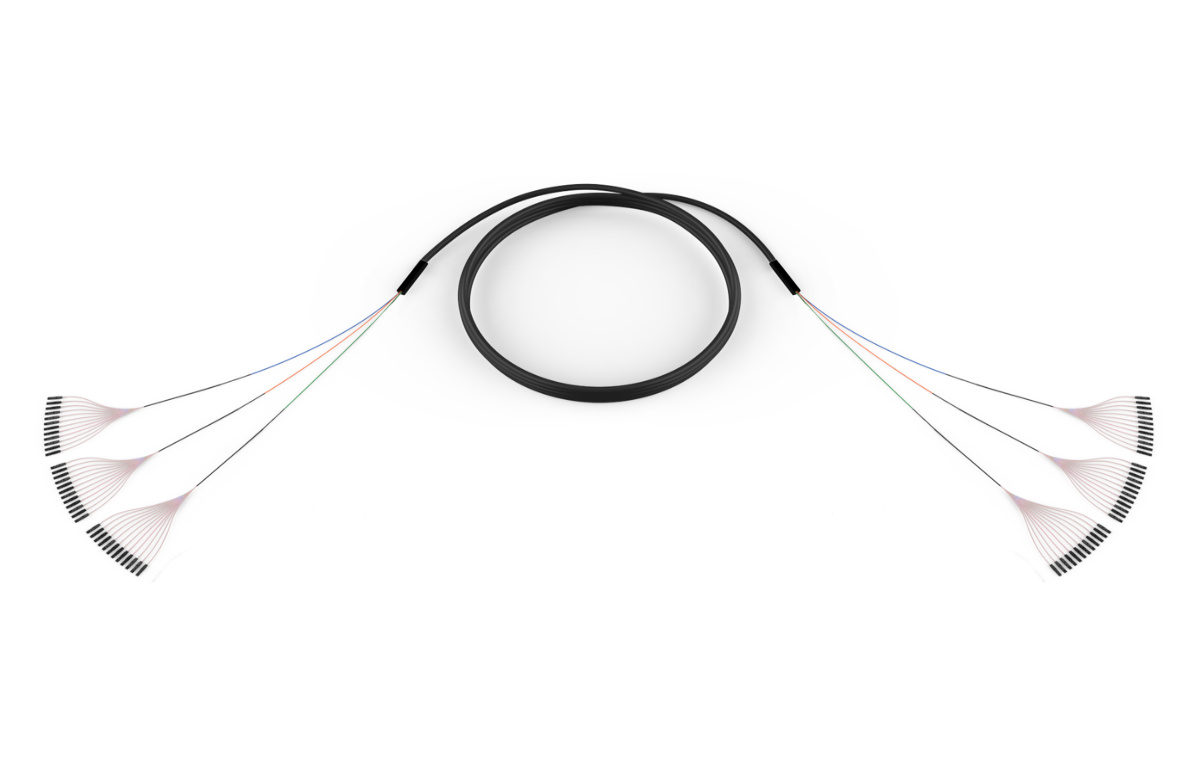

EDGE™ RC Outdoor Transport Trunk 864F, 24F Fast-Track MTP to 24F Fast-Track MTP, Outdoor RocketRibbon Cable (Gel-Free), Single-mode, SMF-28 ULTRA, Water resistant grip on both ends, 100 feet
General Specifications
| Product Number | YF7F7CEGQ4A2A2Z100F |
| Fiber Category | Single-Mode (OS2) Ultra |
| Cable Assembly Type | EDGE™ Rapid Connect Trunk |
| Application | Data Center Interconnect |
| Brand | EDGE™ |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
| Temperature Range, Installation | -20 °C to 60 °C (-4 °F to 140 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
Design
| Fiber Count | 864 |
| Polarity | Type Z |
Mechanical Specifications
| Nominal Outer Diameter | 22.8 mm |
| Min. Bend Radius Installation | 300 mm |
| Min. Bend Radius Operation | 300 mm |
| Weight | 454.4 kg/km |
Specifications - Connector A
| Insertion Loss, Max. | 0.35 dB |
| Connector Type | 24 F Fast-Track-MTP (Pinned) |
| Ferrule Material | Composite |
| Reflectance | < -60 dB |
Specifications - Connector B
| Insertion Loss, Max. | 0.35 dB |
| Connector Type | 24 F Fast-Track-MTP (Pinned) |
| Ferrule Material | Composite |
| Reflectance | < -60 dB |
Pulling Grip - Connector A
| Pulling grip | Yes |
| Grip Outer Diameter | 33.02 mm |
Pulling Grip - Connector B
| Grip Outer Diameter | 33.02 mm |
Dimensions
| Length | 100 ft |
| Cable Weight | 454.4 kg/km |
Furcation - Connector A
| Furcation Type | Single Furcation |
| Leg Color | Bare Ribbon |
| Shortest Staggering Leg Length (mm) | 1778 mm |
Furcation - Connector B
| Furcation Type | Single Furcation |
| Leg Color | Bare Ribbon |
| Shortest Staggering Leg Length (mm) | 1778 mm |
Reduced Installation Time
EDGE RC allows the installer to remove splicing in the field. Reducing time and cost by up to 70 percent when compared to deploying multiple cables in lower fiber counts.
Fast-Track MTP Connector
A new connector technology with a smaller profile enables reduced diameter pulling grips for installations through restricted pathways.
Factory Termination
Results in quicker deployment and better performance while reducing risks associated with field installation, rework, or high insertion loss.
Reduced Pathway Costs
EDGE RC reduces the amount of conduit that needs to be placed in the ground, increasing the ROI on pathway investment.
Water-Resistant Pulling Grips
Provides additional protection to preterminated MTP connectors when deploying 12- to 144- fiber trunks below grade or within conduit where standing water or moisture may be present
