144T88-Y3190-29
MIC® Unitized Tight-Buffered Cable, Plenum 144 F, 50 µm multimode (OM4)
Especificaciones generales
| Número del producto | 144T88-Y3190-29 |
| Cable Type | Tight-Buffered |
| Environment | Indoor |
| Product Type | Distribution |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Plenum (OFNP) |
| Application | General purpose, Horizontal, Plenum, Vertical Riser |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code® (NEC®) OFNR, UL-1666, CSA FT-4 |
| Design and Test Criteria | ICEA S-83-596 |
Environmental Conditions
| Temperature Range, Installation | 0 °C a 60 °C (32 °F a 140 °F ) |
| Temperature Range, Operation | 0 °C a 70 °C (32 °F a 158 °F ) |
| Temperature Range, Storage | -40 °C a 70 °C (-40 °F a 158 °F ) |
Cable Design
| Central Element | Jacketed GRP |
| Fiber Count | 144 |
| Number of Ripcords | 13 |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Fibers per Subunit | 24 |
| Number of Active Tubes | 6 |
| Subunit Color | Aqua |
| Subunit Diameter | 6.8 mm (0.27 in) |
| Tight Buffer Color Subunit | Blue, Orange, Green |
| Tight-Buffer Color Subunit, Layer 1 | Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Tight Buffer Color Subunit, Layer 2 | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Flame Rating | Plenum (OFNP) |
Mechanical Specifications
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1320 N (296.75 lbf) |
| Min. Bend Radius Installation | 352.5 mm (13.88 in) |
| Min. Bend Radius Operation | 235 mm (9.25 in) |
| Nominal Outer Diameter | 23.5 mm (0.93 in ) |
Características ópticas
| Código de la fibra | T |
| Código de opción de desempeño | 90 |
| Categoría de la fibra | OM4 |
| Tipo de fibra | Multimodo |
| Nombre de la fibra | 50 µm MM (OM4) |
| Atenuación máxima | 2.8 dB/km / 1.0 dB/km |
| Longitud de onda | 850 nm / 1300 nm |
| Conformidad de la fibra | IEC 60793-2-10 |
| Diámetro del núcleo de la fibra | 50 µm |
| Ethernet 1 Gigabit serial | 1000 m / 600 m |
| Ethernet 10 Gigabit serial | 550 m / - |
| Ancho de banda modal efectiva mínima (EMB) | 4700 MHz*km / - |
| Anchura mínima de la banda de lanzamiento sobrecargado (OLF) | 3500 MHz*km / 500 MHz*km |
Dimensions
| Cable Weight | 482.3 kg/km (324.09 lb/1000 ft) |

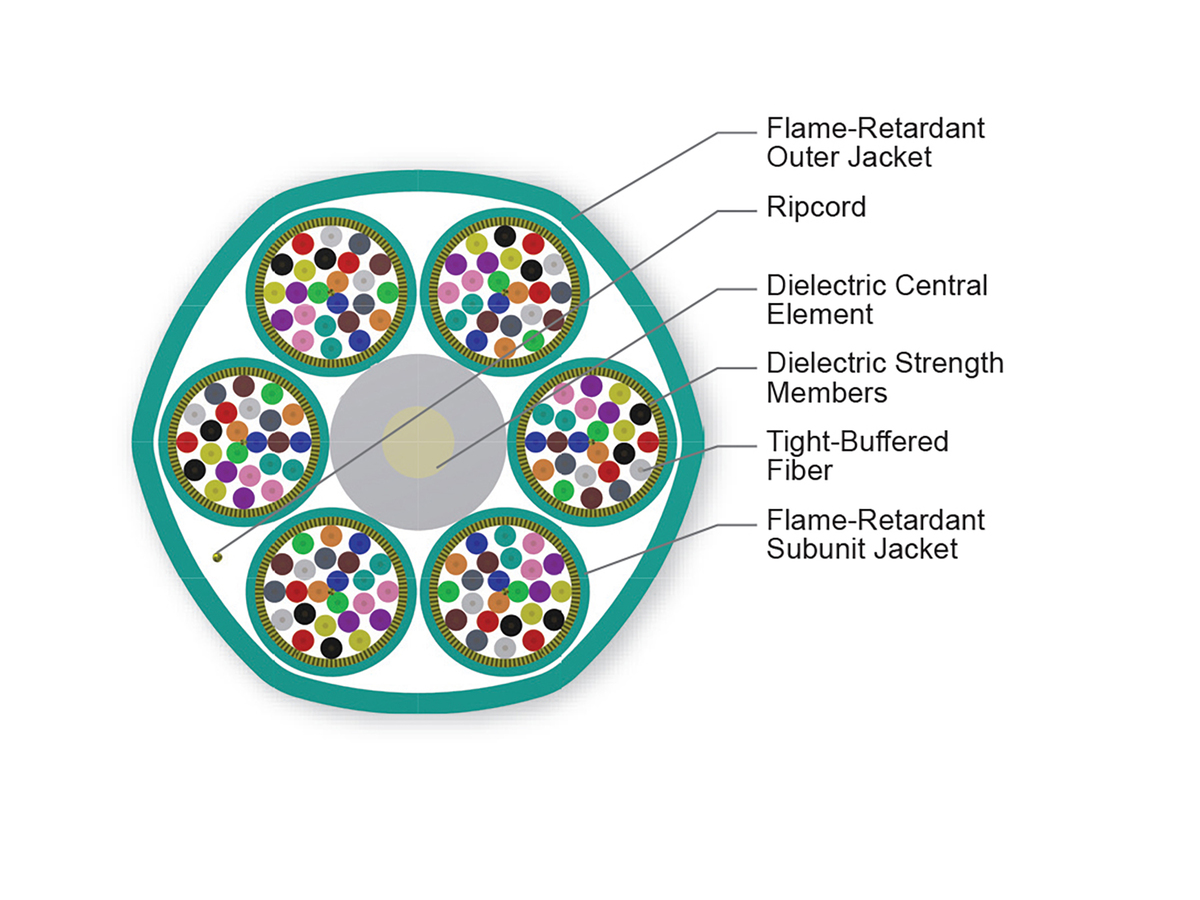

Subunidades con cubierta de 24 fibras
Identificación rápida y fácil
Fibras con buffer de 900 µm
Pelado fácil y uniforme
Estructura totalmente dieléctrica
No requiere conexión a tierra ni conexión
Revestimiento ignífugo
Resistente y duradero
