048TN4-T4S90A20

SOLO® ADSS Short-Span, Loose Tube, Gel-Filled Cable 48 F, 50 µm multimode (OM4)

Especificaciones generales

Standards

RoHS	Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings	RDUP 7 CFR 1755.900 (formerly RUS)
Common Installations	Outdoor self-supporting aerial
Design and Test Criteria	ANSI/ICEA S-87-640

Environmental Conditions

Temperature Range, Installation	-30 °C a 70 °C (-22 °F a 158 °F )
Temperature Range, Operation	-40 °C a 70 °C (-40 °F a 158 °F )
Temperature Range, Storage	-40 °C a 70 °C (-40 °F a 158 °F )

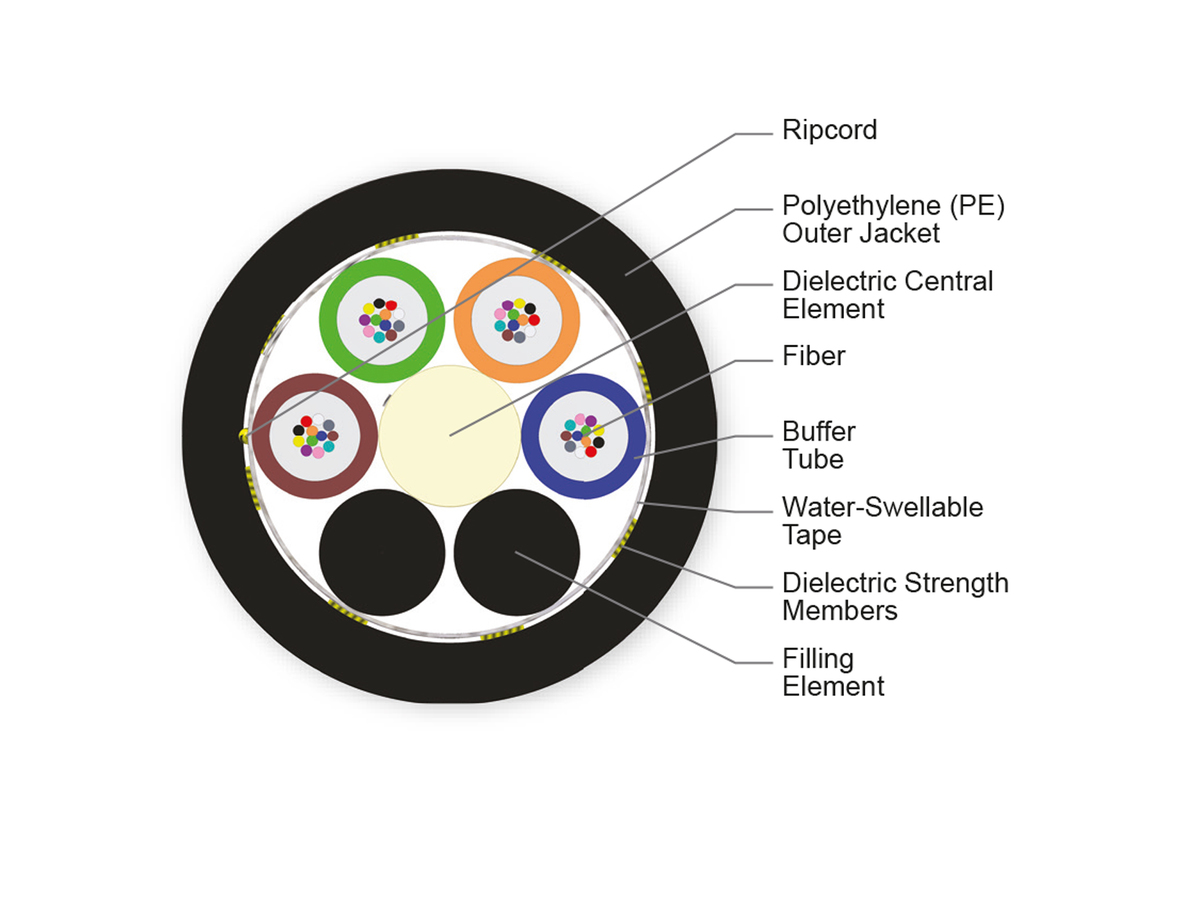

Cable Design

Central Element	Dielectric
Fiber Count	48
Number of Ripcords	1
Buffer Tube Color Coding, Layer 1	Blue, Orange, Green, Brown
Outer Jacket Color	Black
Outer Jacket Material	Polyethylene (PE)
Tensile Strength Elements and/or Armoring - Layer 1	Dielectric strength members
Buffer Tube Diameter	2.5 mm (0.1 in)
Number of Active Tubes	4
Number of Filling Elements	2
Number of Tube Positions	6
Tape	Water-swellable
Fiber Coloring	Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube	12

Mechanical Specifications

Nominal Outer Diameter	10.9 mm (0.43 in )
Min. Bend Diameter Installation	328 mm (12.91 in)
Min. Bend Diameter Operation	218 mm (8.58 in)

Optical Characteristics

Fiber Code	T
Performance Option Code	90
Fiber Category	OM4
Fiber Type	Multimode
Fiber Name	50 µm MM (OM4)
Maximum Attenuation	3.0 dB/km / 1.0 dB/km
Wavelengths	850 nm / 1300 nm
Fiber Compliance	IEC 60793-2-10
Fiber Core Diameter	50 µm
Serial 1 Gigabit Ethernet	1000 m / 600 m
Serial 10 Gigabit Ethernet	550 m / -
Minimum Effective Modal Bandwidth (EMB)	4700 MHz*km / -
Min. Overfilled Launch (OFL) Bandwidth	3500 MHzkm / 500 MHzkm

Dimensions

Cable Weight

92 kg/km (61.82 lb/1000 ft)

Installation Conditions

Span	Initial Installation		NESC Light		NESC Medium		NESC Heavy
Span	SAG	Tension	SAG	Tension	SAG	Tension	SAG	Tension
15 m	1 %	171 N	0,4 %	485 N	1,7 %	690 N	2,4 %	1.024 N
30 m	1 %	343 N	0,5 %	846 N	2 %	1.173 N	2,9 %	1.705 N
46 m	1 %	514 N	0,5 %	1.167 N	2,2 %	1.594 N	3,2 %	2.292 N
61 m	1 %	685 N	0,5 %	1.463 N	2,3 %	1.980 N	3,5 %	2.827 N
76 m	1 %	857 N	0,6 %	1.744 N	2,5 %	2.342 N	3,7 %	3.326 N
91 m	1 %	1.028 N	0,6 %	2.014 N	2,6 %	2.687 N	3,9 %	3.799 N
107 m	1 %	1.199 N	0,6 %	2.274 N	2,7 %	3.019 N	4,1 %	4.252 N
122 m	1 %	1.371 N	0,6 %	2.527 N	2,8 %	3.339 N	4,2 %	4.688 N
137 m	1 %	1.542 N	0,6 %	2.774 N	2,9 %	3.650 N	4,4 %	5.111 N
152 m	1 %	1.713 N	0,7 %	3.016 N	3 %	3.954 N	4,5 %	5.523 N
168 m	1 %	1.885 N	0,7 %	3.254 N	3 %	4.251 N
183 m	1 %	2.056 N	0,7 %	3.488 N	3,1 %	4.543 N
198 m	1 %	2.227 N	0,7 %	3.719 N	3,2 %	4.829 N
213 m	1 %	2.399 N	0,7 %	3.947 N	3,2 %	5.111 N
229 m	1 %	2.570 N	0,7 %	4.172 N	3,3 %	5.388 N
244 m	1 %	2.742 N	0,7 %	4.394 N
259 m	1 %	2.913 N	0,7 %	4.615 N
274 m	1 %	3.084 N	0,7 %	4.834 N
290 m	1 %	3.256 N	0,8 %	5.051 N
305 m	1 %	3.427 N	0,8 %	5.266 N
320 m	1 %	3.598 N	0,8 %	5.479 N

Diseño de tubo holgado

Resistencia mecánica y durabilidad en el ambiente

Autosoportado

Fácil instalación en un solo paso

Cubierta de polietileno (TRPE) resistente al Tracking disponible

Adecuado para instalaciones en potenciales de campo eléctrico hasta 25 kV

Innovador diseño con bloqueado contra agua

Proporciona una preparación de cable eficiente y fácil de ensamblar
