360ZV4-14100D53
SST-UltraRibbon Single-Tube, Gel-Free Cable 360 F, Bend-improved Single-mode (OS2)
General Specifications
| Product Number | 360ZV4-14100D53 |
| Fiber Category | Single-mode (OS2) |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |

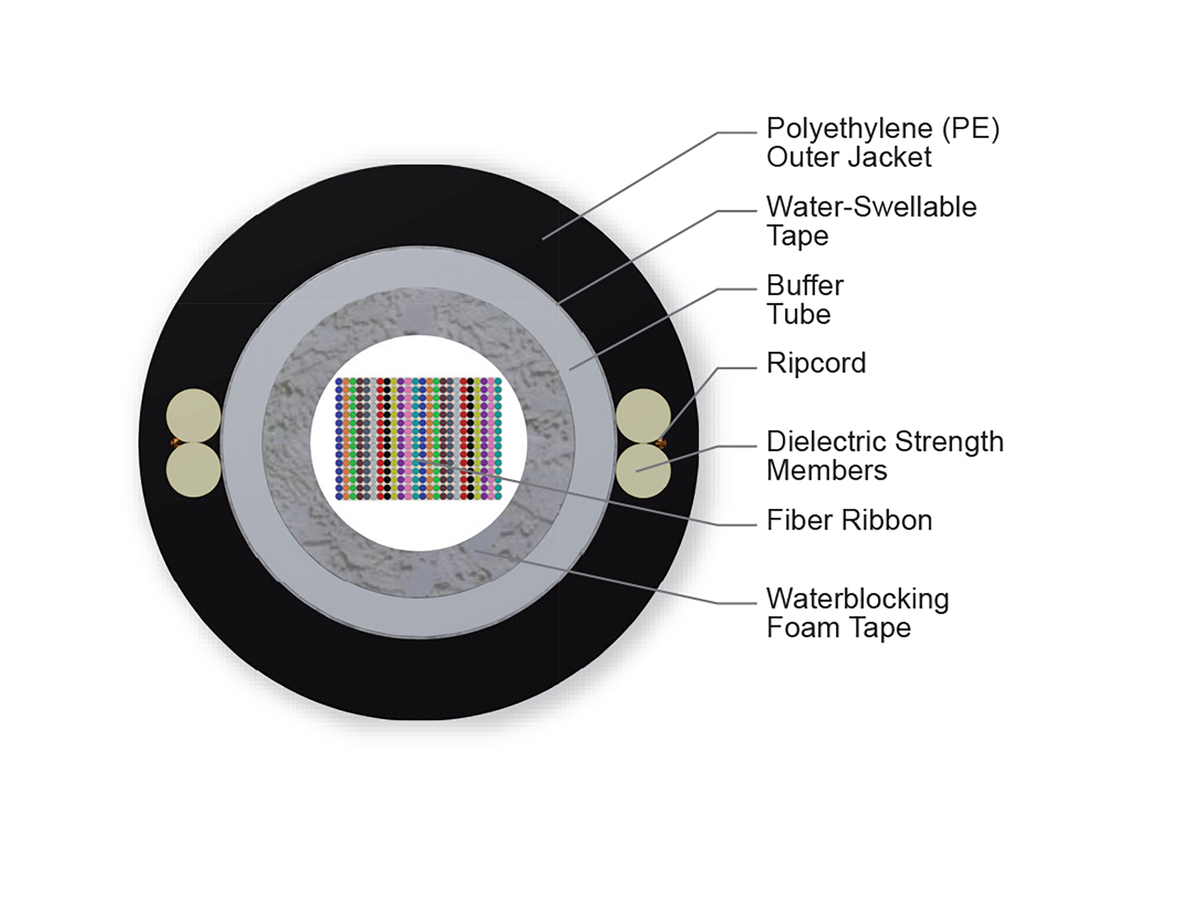

Cable Design
| Fiber Count | 360 |
| Ribbons per Tube | 15 |
| Fibers per Ribbon | 24 |
Mechanical Specifications
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Nominal Outer Diameter | 20.9 mm (0.82 in ) |
| Min. Bend Diameter Operation | 418 mm (16.46 in) |
| Min. Bend Diameter Installation | 628 mm (24.72 in) |
Optical Characteristics
| Fiber Code | Z |
| Performance Option Code | 00 |
| Fiber Category | OS2 |
| Fiber Type | Single-mode (OS2) / 250 µm |
| Fiber Name | Bend-Improved Single-mode (OS2) |
| Maximum Attenuation | 0.35 dB/km / 0.35 dB/km / 0.25 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
Gel-free with no filling compound
Eliminates time and labor of cleaning
Innovative waterblocking technology
Prevents water penetration
Up to 864 fibers in a compact design
Maximizes use of critical duct space
12-fiber ribbons individually numbered
Easy identification
