  2. Fiber Optic Hardware
  3. Enhanced Management Frame (EMF) Housing with MTP Modules

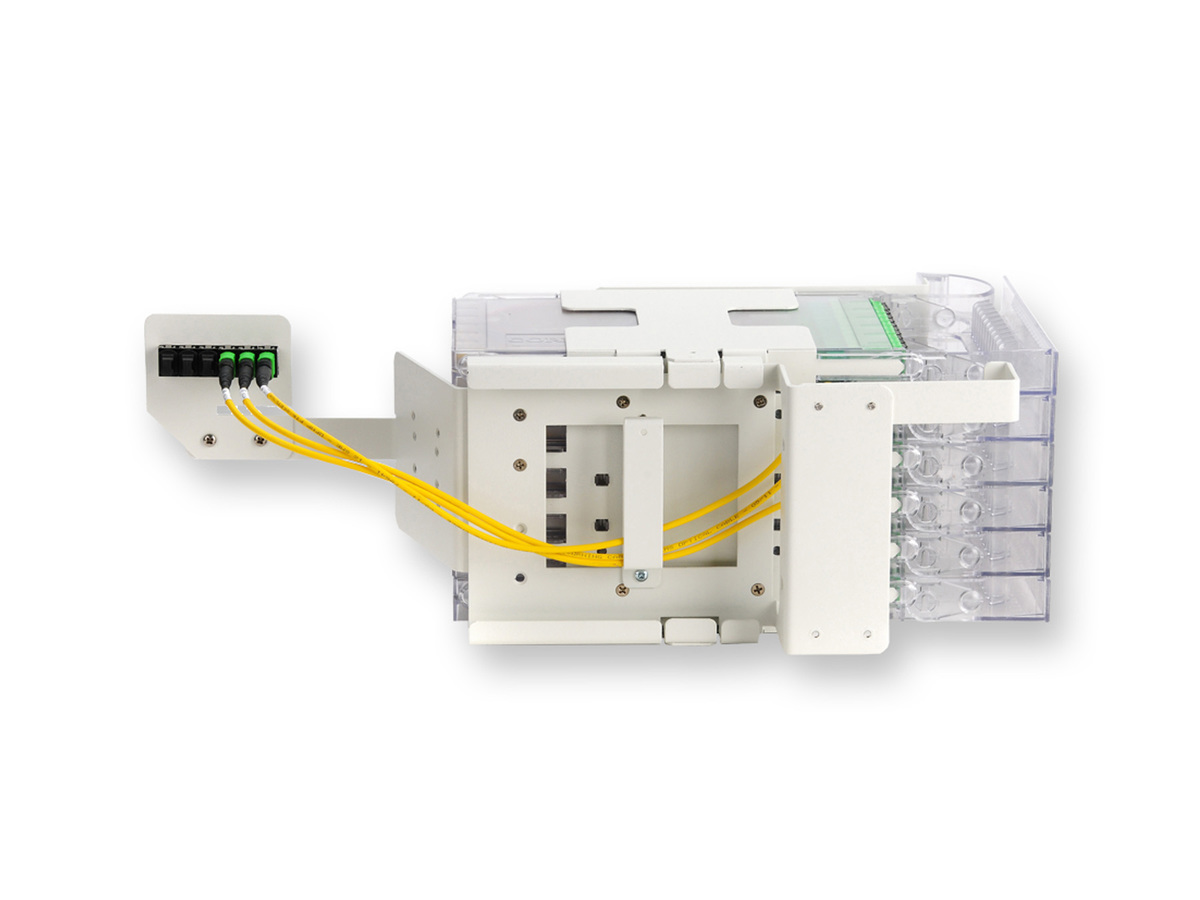

Left-Hand Housing with MTP Modules & Cable Assembly, 12 port, SC APC connector

CCFL7203-6C-MT89C

Enhanced Management Frame (EMF) Housing with MTP Modules  Left-Hand Housing with MTP Modules & Cable Assembly, 12 port, SC APC connector

Typically ships in 21 day(s) Actual lead time confirmed upon receipt of order.
E-mail
Product Specifications Product Family Specification

Specifications
General Specifications
Product Number CCFL7203-6C-MT89C
Product Type Frames and Cable Managers
Mounting Type Rack-mount
Application Carrier Networks,  Central Office
Standards
RoHS Free of hazardous substances according to RoHS 2011/65/EU
Design
Cable Entry Direction Rear
Connector Configuration SC-MTP®
Housing Type EMF
Panel or Module Type EMF
Cable Design
Fiber Count 12
Design - Adapter
Housing Color White
Adapter Type SC
Dimensions
Height 55 in
Ordering Information
Units per Delivery 1/1
Technical Documents
Feature/Benefits
Individual 12-fiber modules
Maximize scalability and modularity
Integrated splicing capability
Enables on-frame splicing without sacrificing density
Modules extend/retract independently
Minimizes connector disturbance
Top and rear strain-relief
Ensures bend-radius control
