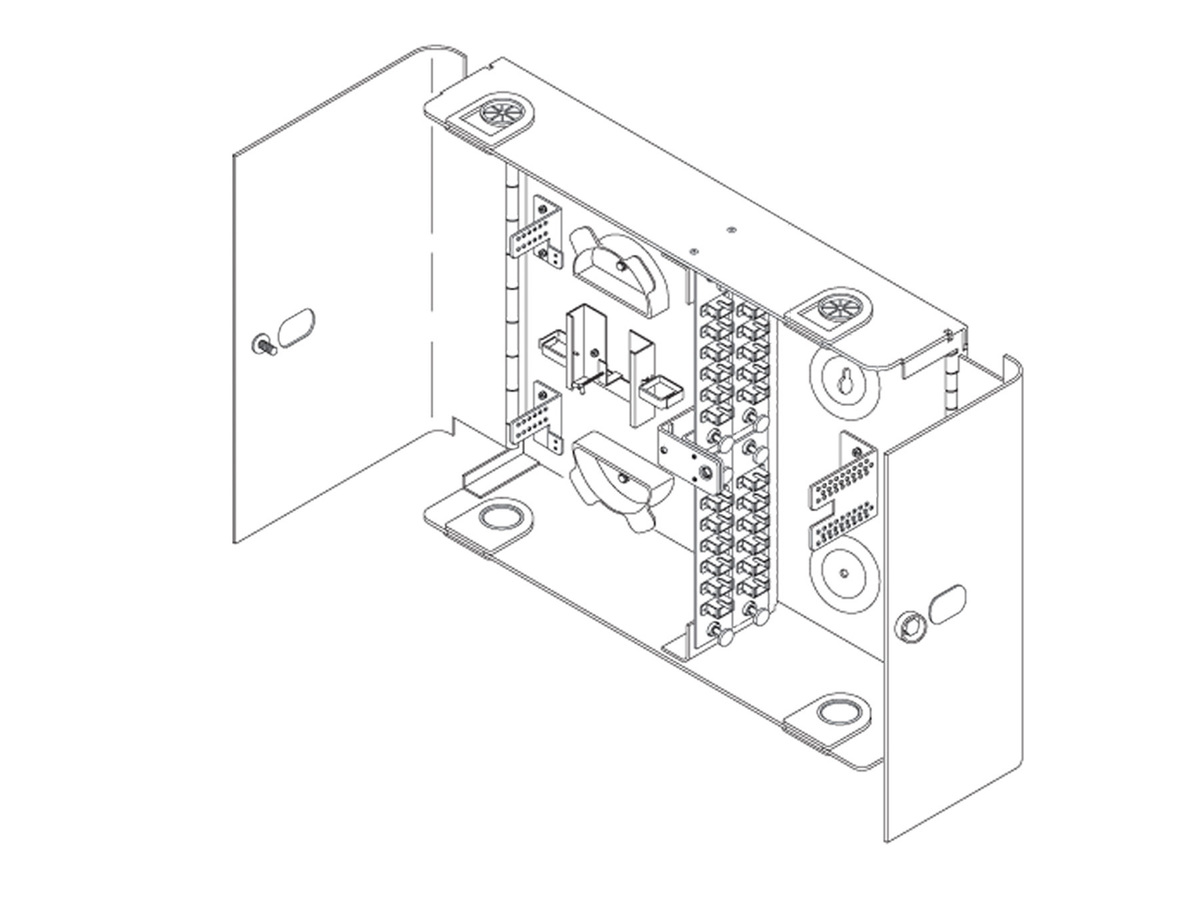

PCC-024
Premises Connector Cabinet Capacity for up to 24 F
General Specifications
| Product Number | PCC-024 |
| EAN Code | 4056418183930 |
| Product Type | Wall-Mountable Hardware |
| Mounting Type | Wall-Mountable |
| Application | Customer premises environments, Telco Environments |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design
| Fiber Count | 24 |
| Adapter Type Front | ST® compatible, SC, and LC |
| Cable Entry Direction | Top / Bottom |
| Connectorization Configuration | Panel Mounting Only Adapters |
| Housing Type | Premises Connector Cabinet (PCC) |
| Housing Type (Wall-mountable Specific) | Premises Connector Cabinet (PCC) |
| Panel or Module Type | LDC |
Cable Design
| Fiber Count | 24 |
Design - Adapter
| Housing Color | Platinum |
| Adapter Type | ST® compatible, SC, and LC |
Mechanical Specifications
| Number of Cables | 1 |
Connector Specs
| Housing Color | Platinum |
Dimensions
| Height | 355 cm |
| Width | 8.92 cm |
| Depth | 286 cm |
Ordering Information
| Units per Delivery | 1/1 |
Wall-mountable unit
Excellent for interconnect or cross-connect applications
Protection for both the network and user connectors
3.5-in projection from the wall
Fiber routing guides
Allows management and rearrangement of cable slack without violating minimum bend-radius requirements
Labels
Provided for system documentation
Capacity for up to 24 fibers
Accommodates most standard connector types
Strain-relief provisions
Provides for multiple cables within unit
