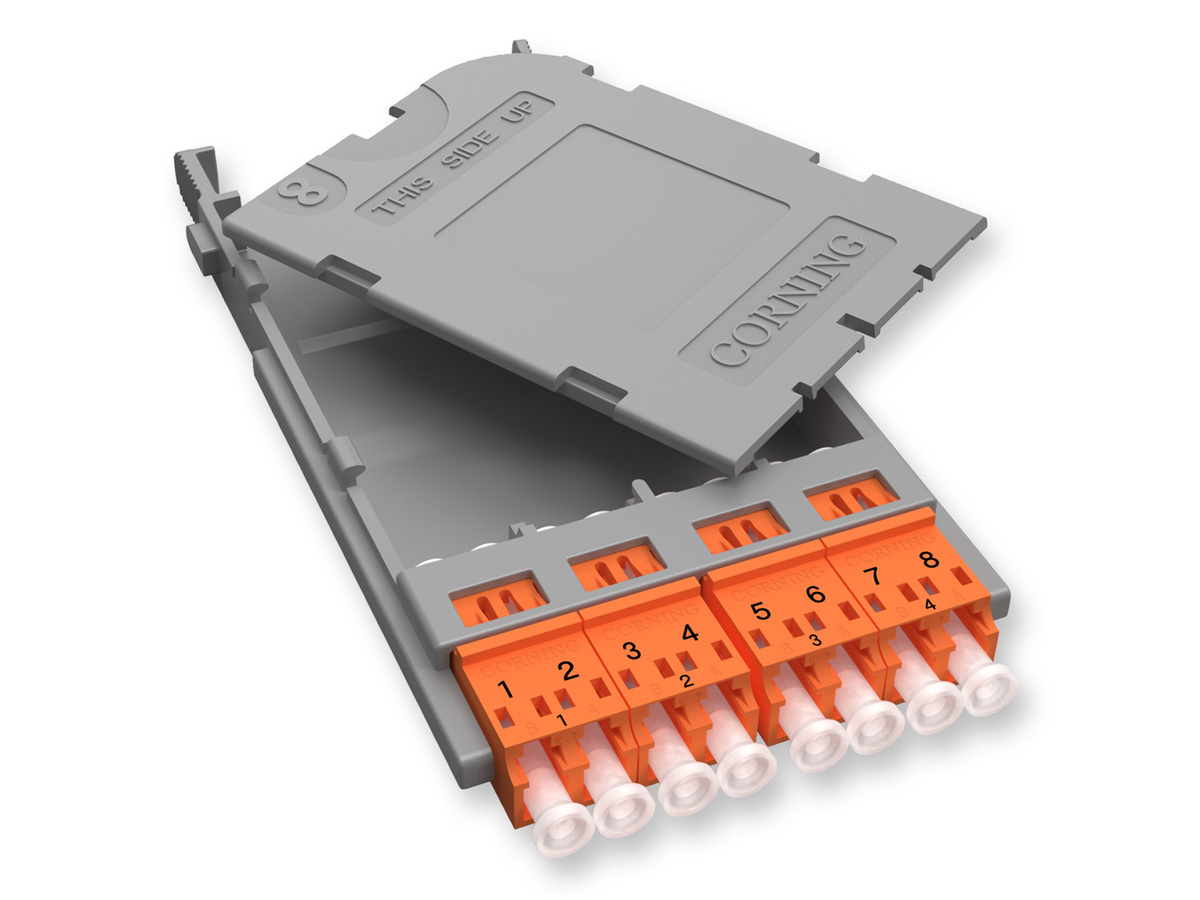

EMOD8-CP08-AM
EDGE8® LC Panel Secure with 4 keyed, non-shuttered, orange, LC adapters
General Specifications
| Product Number | EMOD8-CP08-AM |
| EAN Code | 4059496110164 |
| Product Type | Panels and Modules |
| Fiber Category | 62.5 µm MM (OM1) / 50 µm MM (OM2/OM3/OM4) / 9 µm SM (OS2) |
| Mounting Type | Tray mount |
| Application | Data Center |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design
| Adapter Type Back | LC duplex |
| Adapter Color Back | Orange |
| Adapter Type Master Level | LC duplex |
| Adapter Color Front | Orange |
| Housing Type | Panels and Modules |
| Number of Adapters | 4 |
Design - Adapter
| Adapter Style | Shuttered |
| Adapter Type | SC Duplex |
Dimensions
| Height | 63.5 mm (2.5 in) |
| Width | 127 mm (5 in) |
| Depth | 127 mm (5 in) |
| Weight | 23 kg |
Ordering Information
| Package Contents | 1 panel |
| Shipping Weight | 11 kg |
| Units per Delivery | 1/1 |
| Shipping Height | 25 mm (0.98 in) |
| Shipping Width | 254 mm (10 in) |
| Shipping Depth | 127 mm (5 in) |
