General Specifications
| Product Number | UMB1CC6CZ6C22116 |
| Product Type | Splitters |
| Splitter Type | Modules |
| Fiber Category | Single-mode (OS2) |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | GR-1209 and GR-1221 qualified |
Design

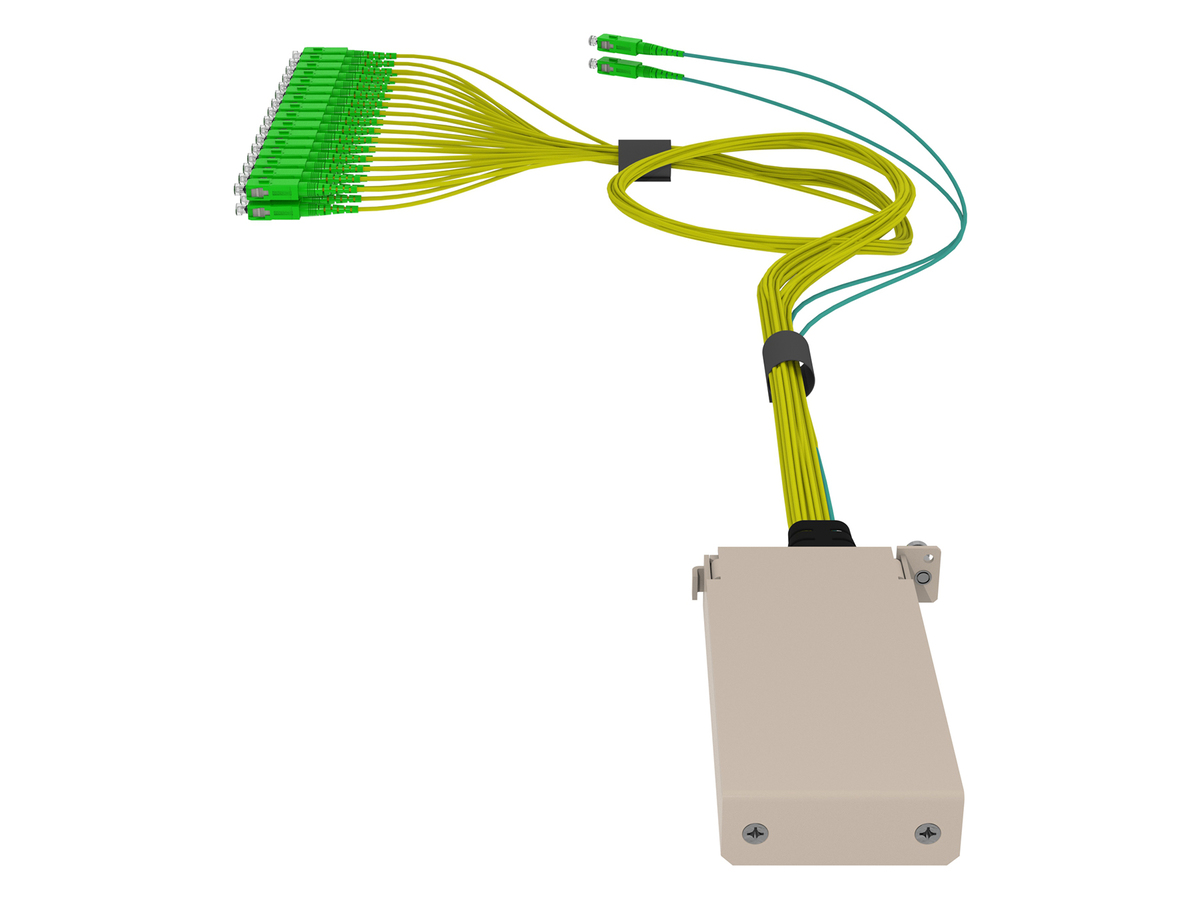

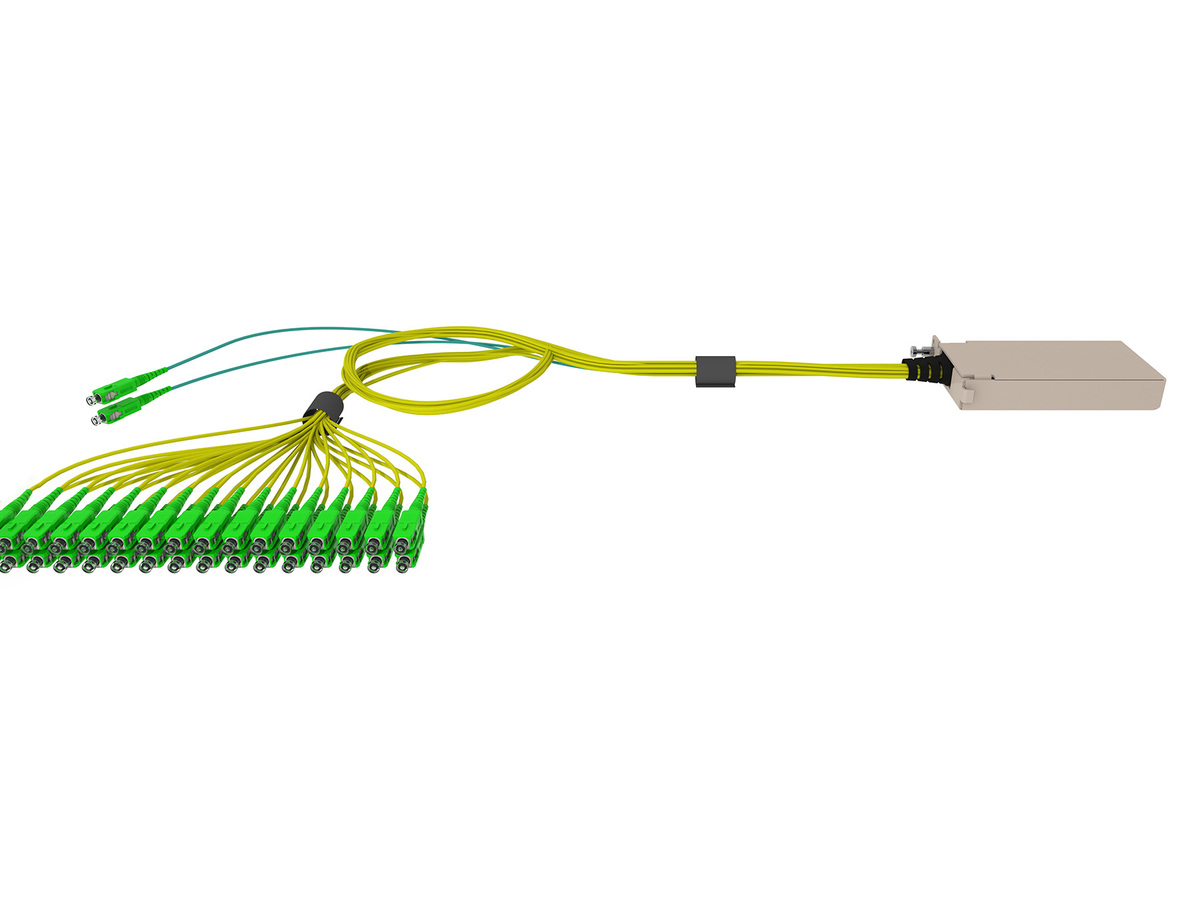

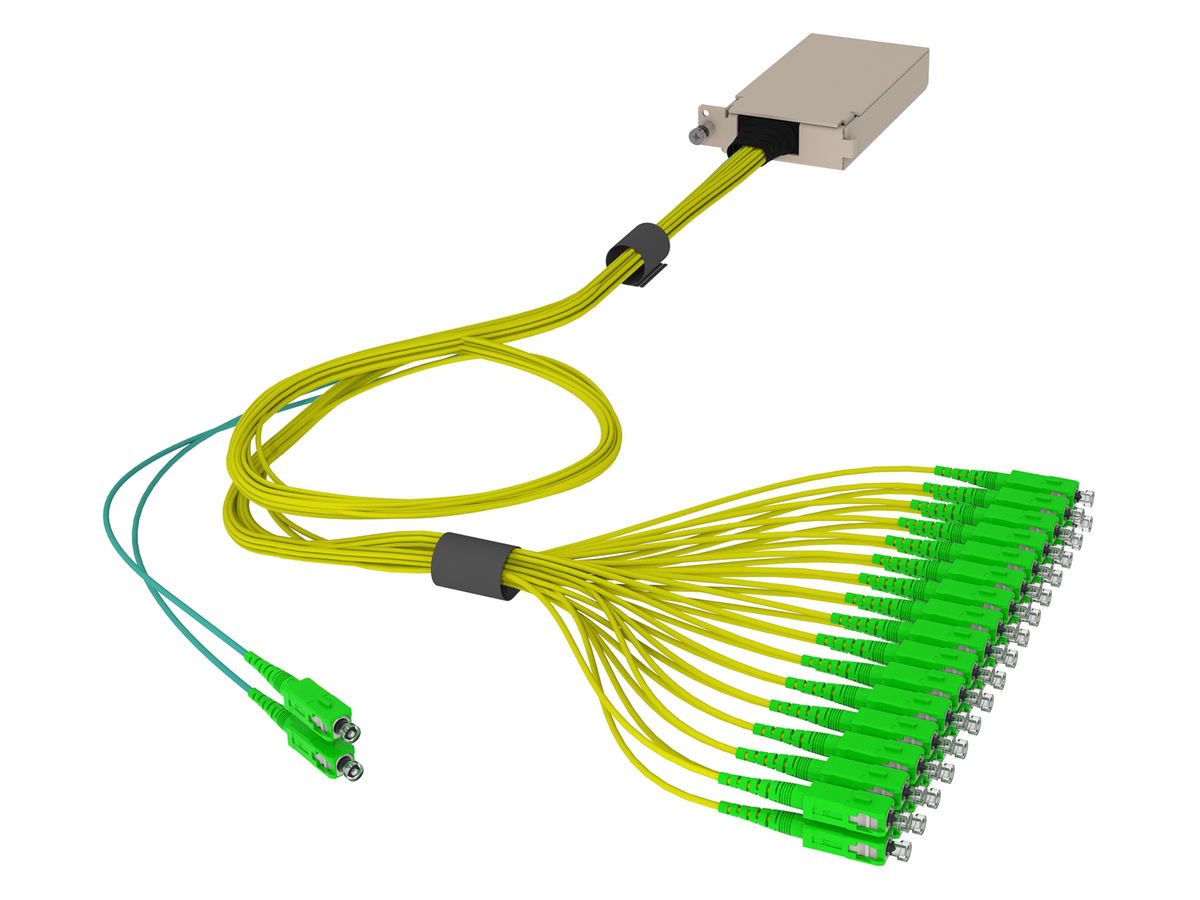

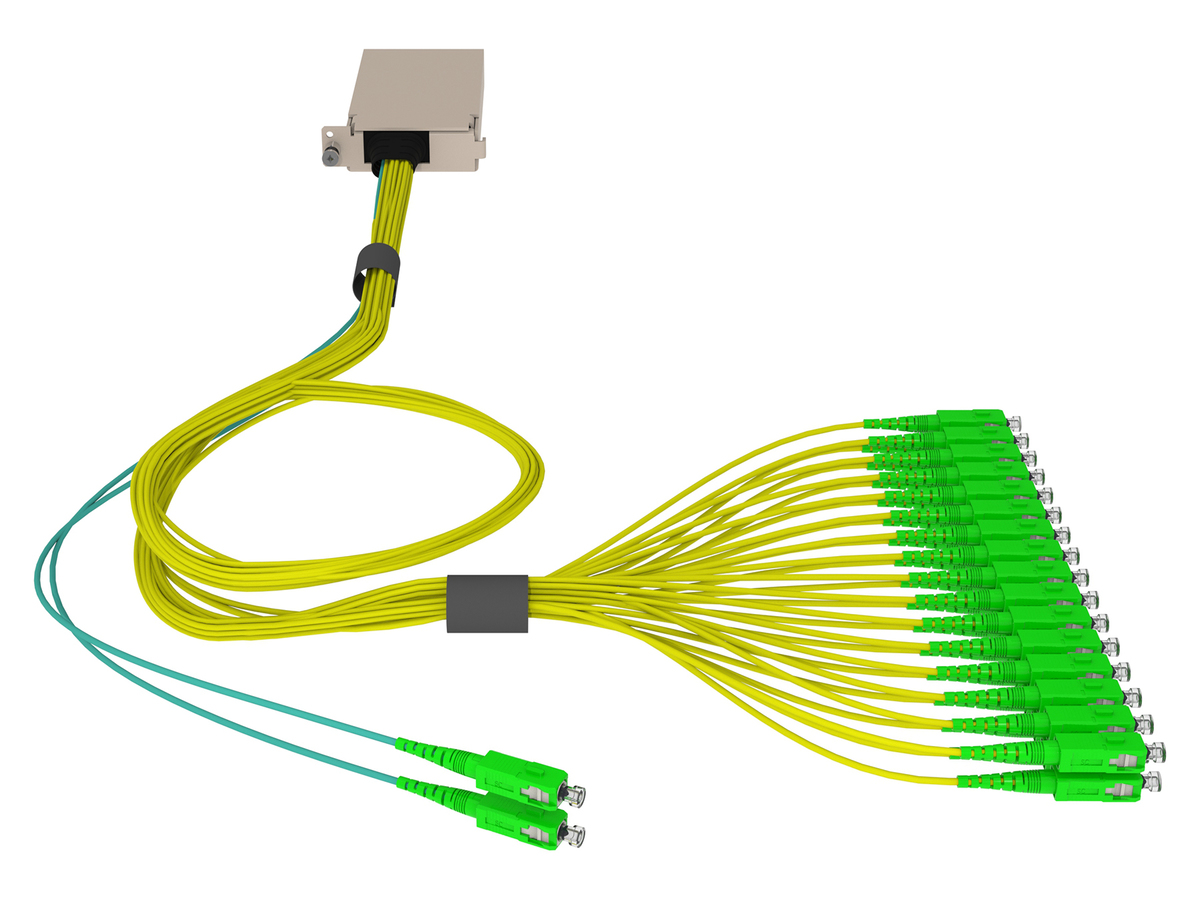

| Splitter Module | Dual 1x16 |
| Splitter input connector | SC APC, Standard |
| Splitter output connector | SC APC, Standard |
Optical Specification - Hardware
| Splitter Insertion Loss Max | 13.5 dB |
| Splitter PDL (Polarization Dependent Loss) | 0.3 dB |
| Splitter Insertion Loss, Typical | 12.9 dB |
| Splitter Uniformity | 1 dB |
| Splitter Directivity | 55 dB |
| Splitter Return Loss | > 55 dB |
Dimensions
| Height | 6.3 cm |
| Width | 2.3 cm |
| Depth | 12.5 cm |
Ordering Information
| Package Contents | Gen III Dual 1x16 Splitter Module; Installation Guide; 32 position parking clip |
| Units per Delivery | 1/1 |
