MOB-0844FD100FW-P

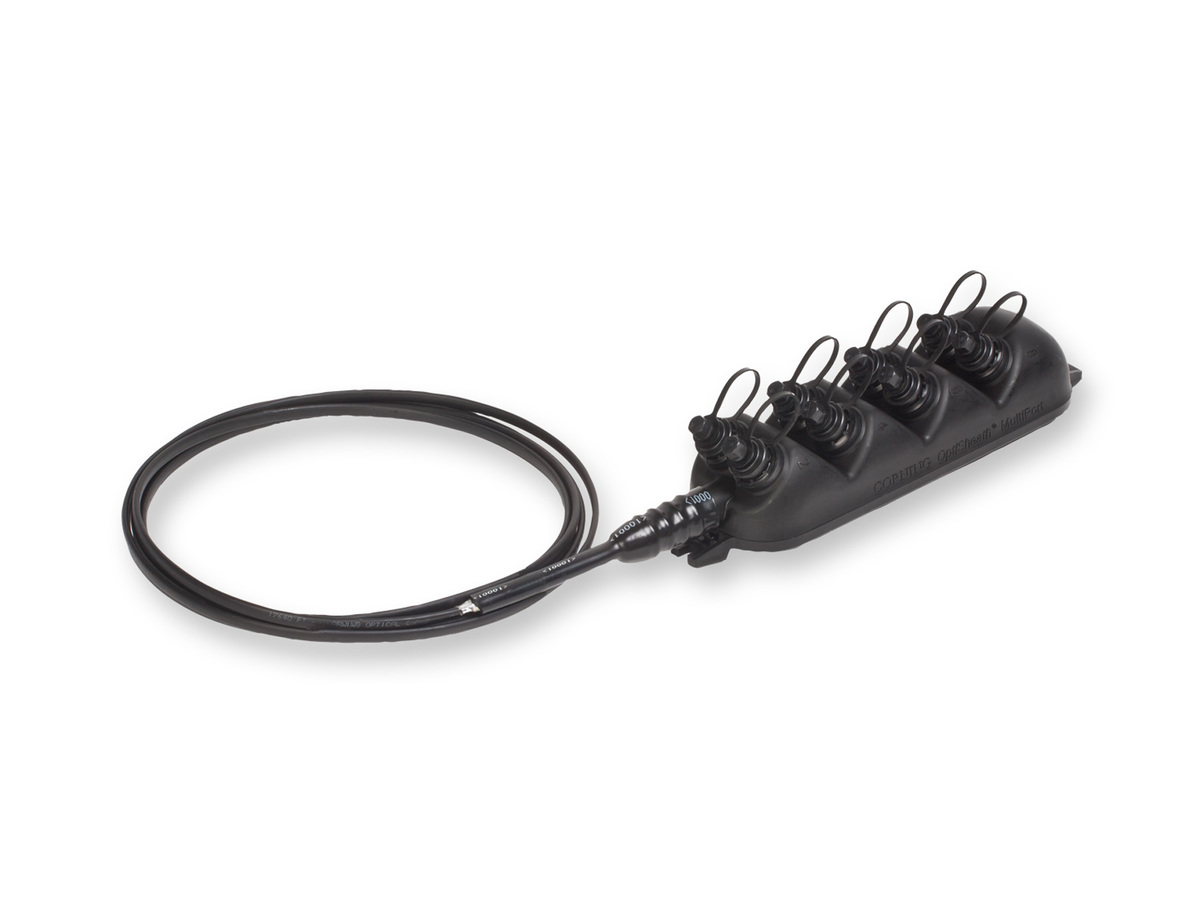

OptiSheath® MultiPort Terminal, Single-Tube, Gel-Filled Cable, Stubbed, 8 port Single-mode (OS2), 100 ft
General Specifications
| Product Number | MOB-0844FD100FW-P |
| EAN Code | 4056418183268 |
| Cable Type | SST Flat Dielectric Drop |
| Fiber Category | Single-mode (OS2) |
| Packaging | Individual Pack |
| Product Type | MultiPorts |
| Preconnectorized "Stubbed" Hardware | No |
| Technology | Pushlok® |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | USDA Rural Development Programs |
| Design and Test Criteria | IP68 |
Environmental Conditions
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
Design
| Fiber Count | 8 |
| Number of ports - cut | 8 |
| Housing Material | Plastic |
| Locking Availability | No |
| Number of Fibers in Input Cable | 8 |
| Number of Ports | 8 |
Mechanical Specifications
| Cable Length | 30 m (98.4 ft) |
Specifications - Connector A
| Connector Type | SC |
| Polish | APC |
| Insertion Loss, Typical | ≤ 0.15 dB |
Specifications - Connector B
| Connector Type | SC |
| Polish | APC |
Dimensions
| Height | 76 mm (2.99 in) |
| Width | 86 mm (3.39 in) |
| Depth | 312 mm (12.28 in) |
| Weight | 1.86 kg |
Ordering Information
| Packaging Method | Box |
| Units per Delivery | 1/1 |
| Shipping Height | 762 mm (30 in) |
| Shipping Width | 762 mm (30 in) |
| Shipping Depth | 152 mm (5.98 in) |
OptiTap® cable assembly connector ports for customer drop terminations
Lower installation cost and increased speed of customer inter‐connection
Available stubbed or preterminated with OptiTip® Multifiber Connector
Design flexibility and inventory simplicity
Ultrasonically welded housing
Eliminates water ingress potential and prevents unwanted entry in the field
Factory-terminated polished connectors
Eliminates loss associated with excess fusion splices
