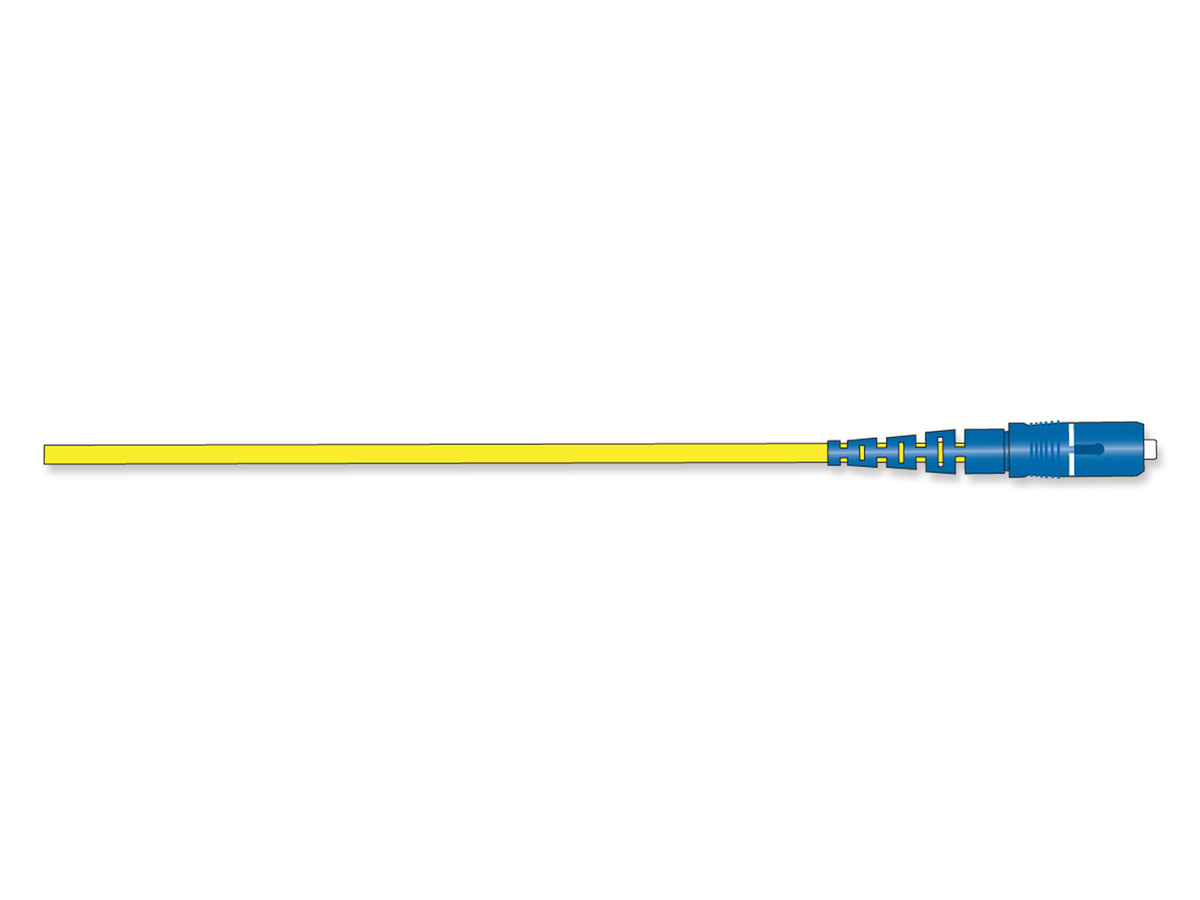

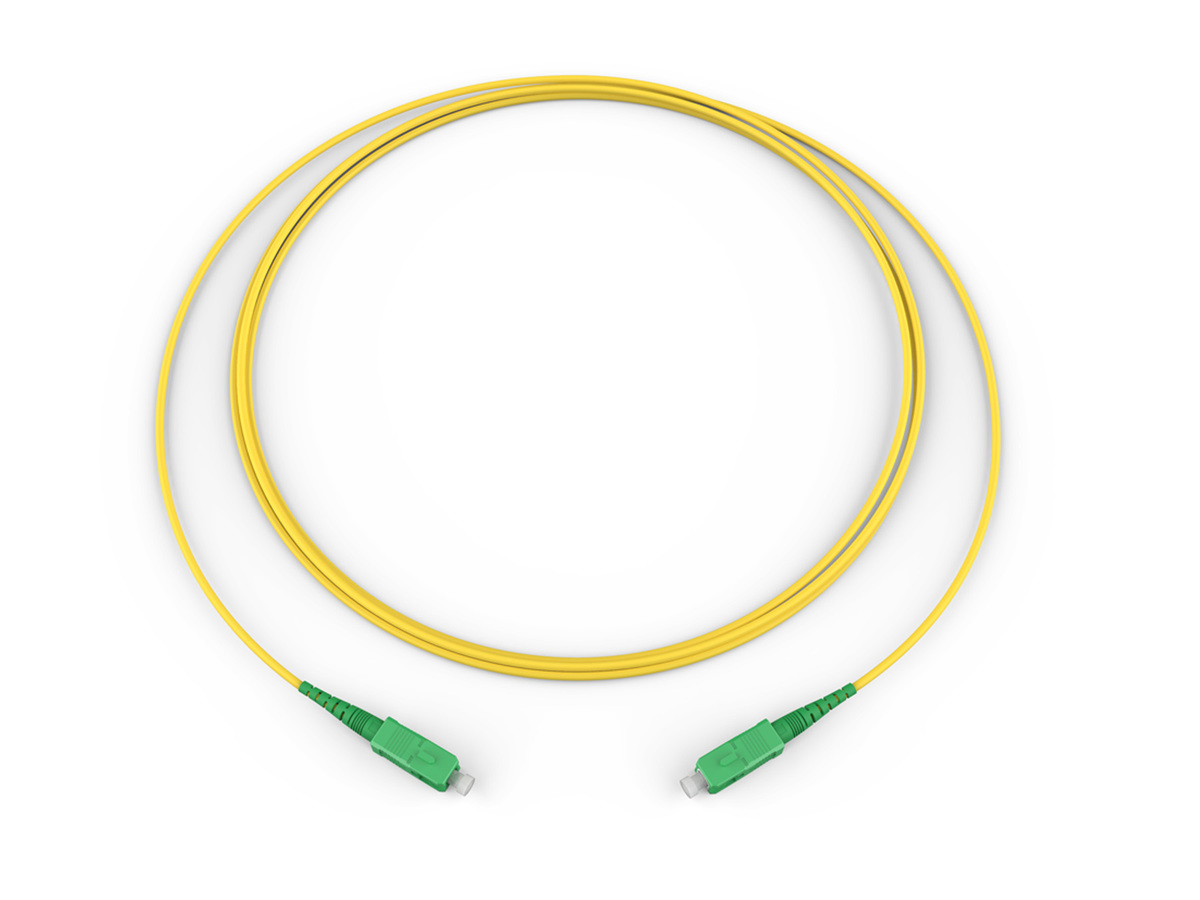

  5. Fiber Optic Jumper, 1 F, SC APC to SC APC, Tight-Buffered Cable, Riser, 2.0 mm
Standard SCAPC Simplex SM / Standard SCAPC Simplex SM, SMF Ultra, 1F, Single Fiber Riser, Standard Yellow Jacket 10 Meters Standard SCAPC Simplex SM / Standard SCAPC Simplex SM, SMF Ultra, 1F, Single Fiber Riser, Standard Yellow Jacket 10 Meters

444401G2131010M

Fiber Optic Jumper, 1 F, SC APC to SC APC, Tight-Buffered Cable, Riser, 2.0 mm  Standard SCAPC Simplex SM / Standard SCAPC Simplex SM, SMF Ultra, 1F, Single Fiber Riser, Standard Yellow Jacket 10 Meters

Typically ships in 14 day(s) Actual lead time confirmed upon receipt of order.
E-mail
Product Specifications Product Family Specification

Specifications
General Specifications
Product Number 444401G2131010M
EAN Code 4056418608242
Flame Rating Riser (OFNR)
Fiber Category Bend-improved Single-Mode (OS2)
Cable Assembly Type Single fiber
Application General Building Applications,  Vertical Riser
Cable Type Tight-Buffered
Standards
RoHS Free of hazardous substances according to RoHS 2011/65/EU
Design
Fiber Count 1
Outer Jacket Color Yellow
Mechanical Specifications
Nominal Outer Diameter 2 mm  (0.08 in )
Optical Characteristics
Fiber Code Z
Performance Option Code 31
Fiber Category OS2
Fiber Type Single-mode (OS2) / 250 µm
Fiber Name Bend-Improved Single-mode (OS2)
Maximum Attenuation 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
Wavelengths 1310 nm / 1383 nm / 1550 nm
Fiber Compliance ITU-T G.652.D and ITU-T G.657.A1
Specifications - Connector A
Reflectance, Typical ≤ -65 dB
Polish APC
Insertion Loss, Typical 0.15 dB
Boot Color Green
Connector Type SC APC
Ferrule Material Ceramic
Housing Color Green
Housing Material Composite
Specifications - Connector B
Reflectance, Typical ≤ -65 dB
Polish APC
Insertion Loss, Typical 0.15 dB
Boot Color Green
Connector Type SC APC
Ferrule Material Ceramic
Housing Color Green
Housing Material Composite
Dimensions
Length 10 m (32.8 ft)
Ordering Information
Units per Delivery 1/1
Technical Documents
Feature/Benefits
Flame-retardant jacket
Rugged and durable
Superior Performance Testing
Every termination is tested to ensure the highest in network performance
State-Of-The-Art Manufacturing Processes
Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
Corning advantage
Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
