576ZQ4-14700S53

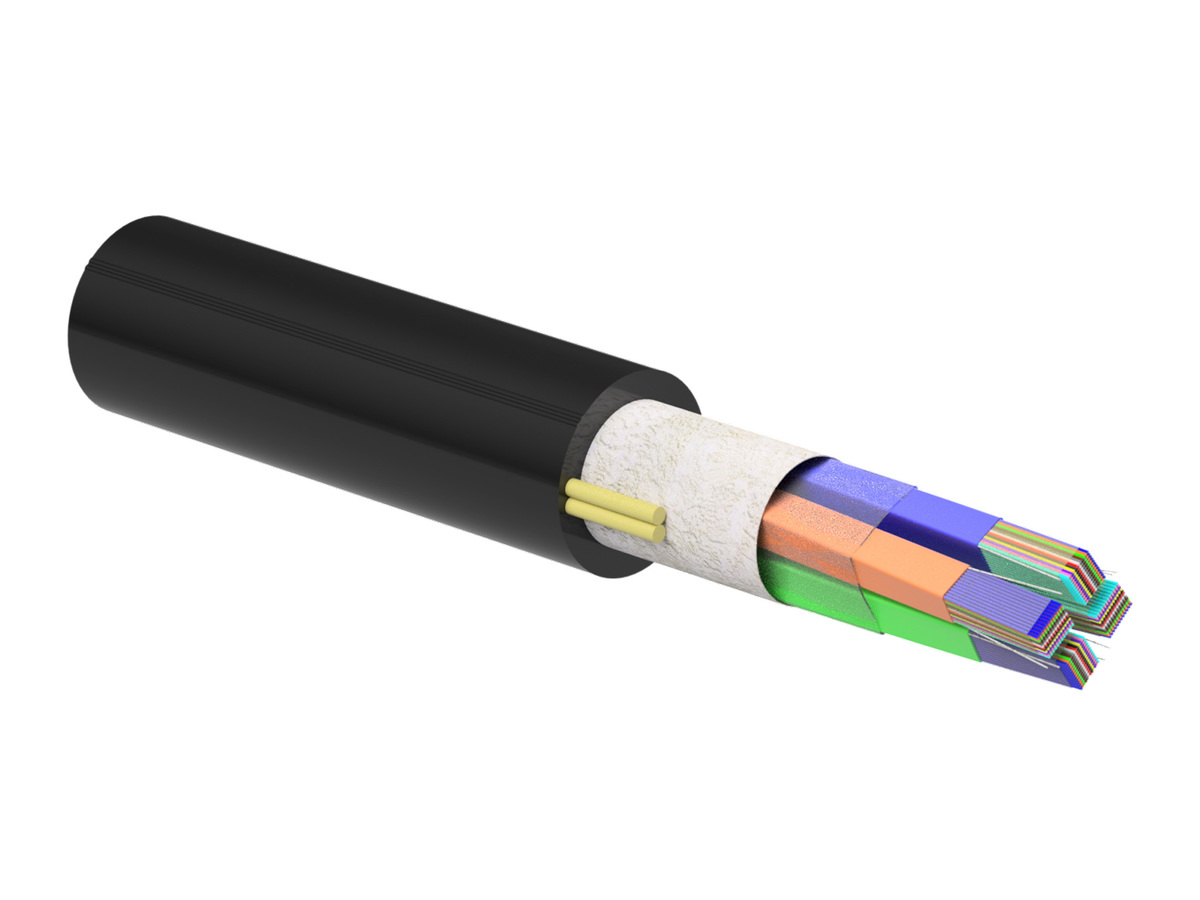

RocketRibbon® HD Cable-250 576 F, Dielectric, Bend-Improved Single-Mode (OS2)
General Specifications
| Product Number | 576ZQ4-14700S53 |
| Cable Type | Ribbon |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

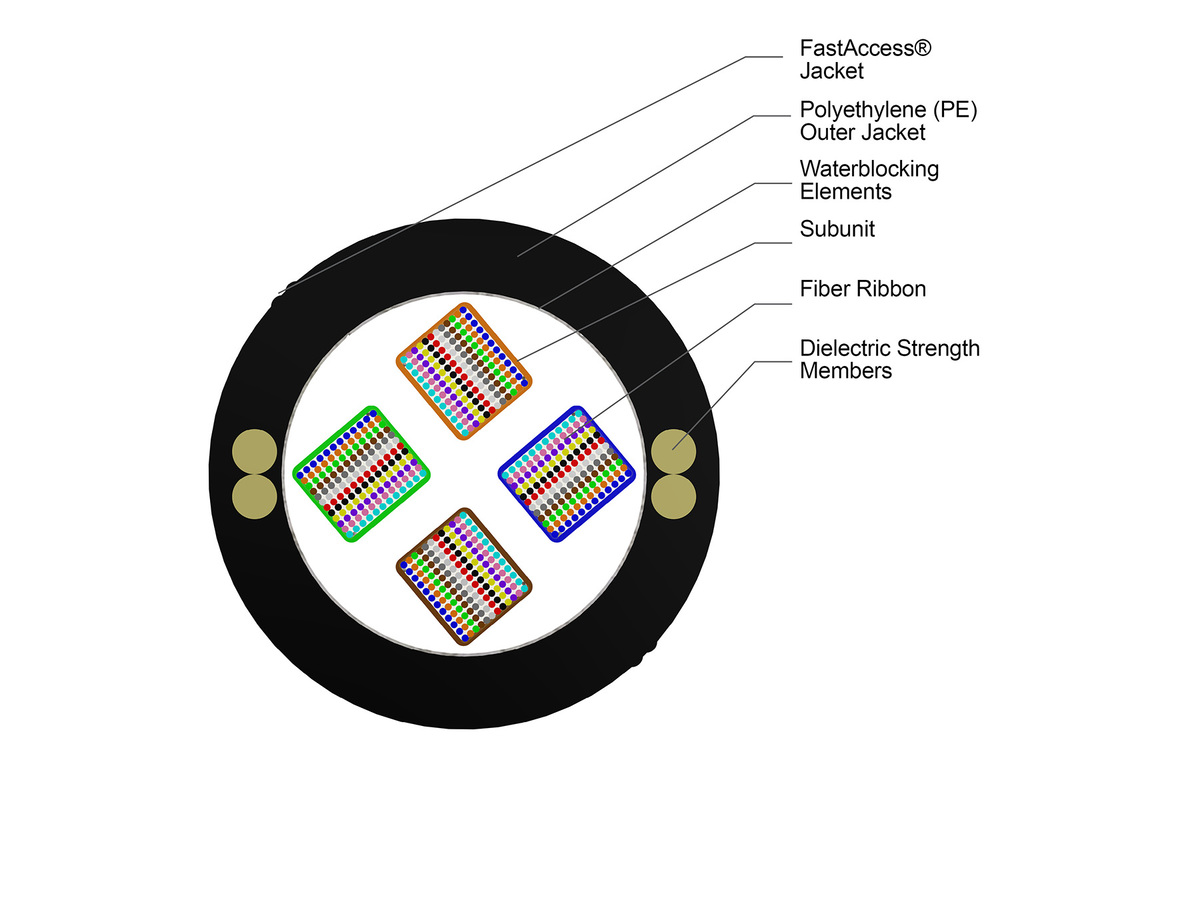

Cable Design
| Cable Marking | Print in ft with SOCC |
| Fiber Count | 576 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Number of Ribbons | 48 |
| Tape | Waterblocking tape and yarns |
| Tape, Layer 1 | Waterblocking Tape |
| Subunit Color | Blue, Orange, Green, Brown |
| Number of Subunits | 4 |
| Ribbons per Subunit | 12 |
| Fibers per Subunit | 144 |
Mechanical Specifications
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Nominal Outer Diameter | 18.4 mm (0.72 in ) |
| Min. Bend Diameter Operation | 552 mm (21.73 in) |
| Min. Bend Diameter Installation | 552 mm (21.73 in) |
Optical Characteristics
| Fiber Code | Z |
| Performance Option Code | 00 |
| Fiber Category | OS2 |
| Fiber Type | Single-mode (OS2) / 250 µm |
| Fiber Name | Bend-Improved Single-mode (OS2) |
| Maximum Attenuation | 0.35 dB/km / 0.35 dB/km / 0.25 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
Dimensions
| Cable Weight | 211.1 kg/km (141.85 lb/1000 ft) |
Unique subunit design
Flexible, finger-peelable subunits provide protection of each 144-fiber ribbon stack, eliminating the need for furcation when routing directly into hardware and enabling individual access to each ribbon for efficient management in splice trays.
Complete gel-free design
No messy filling or flooding compounds mean elimination of time, labor and risk associated with cleaning ribbons, enabling cleaner work areas, simplified splice preparation and less installer error.
FastAccess® Jacket
Reduces time and risk by limiting need for sharp tools
