CCF-CML-07289

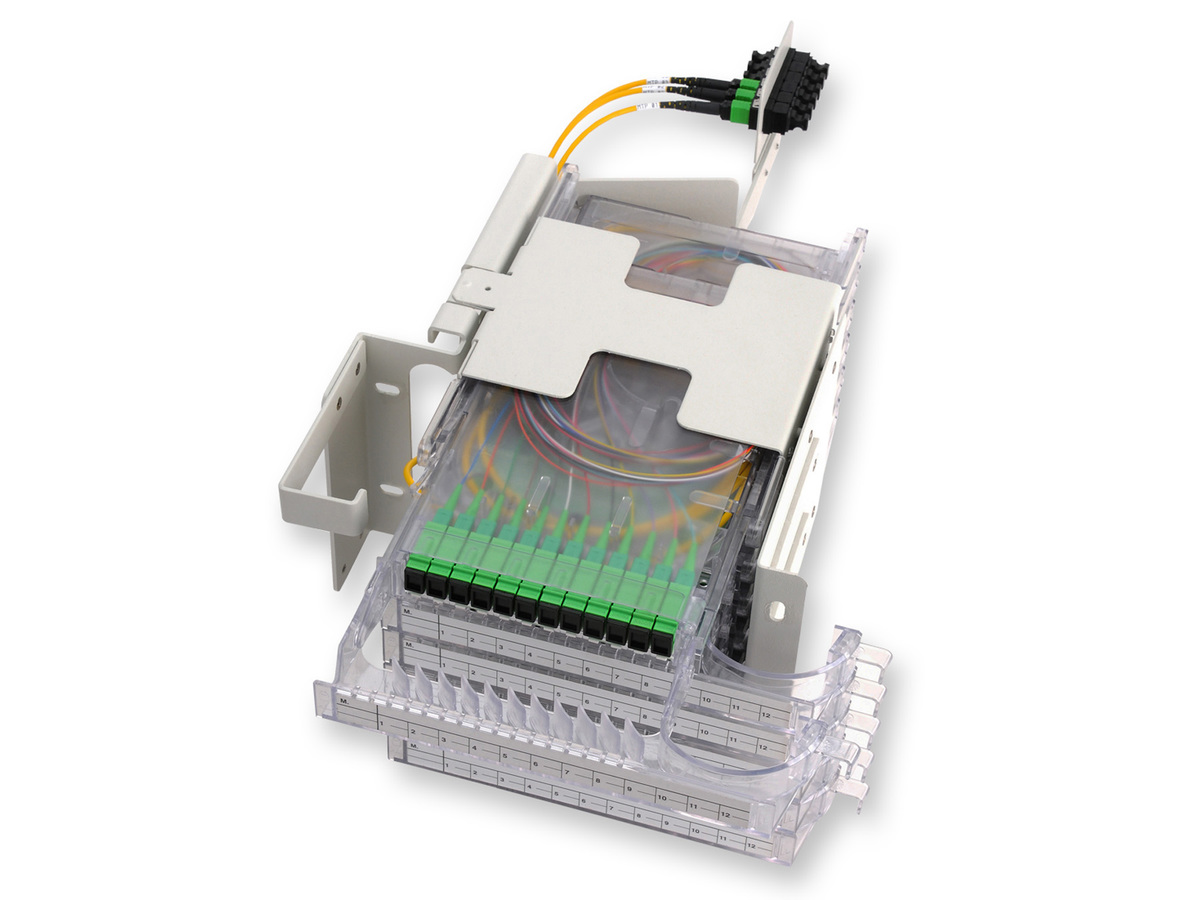

Enhanced Management Frame (EMF) Housing Empty Empty Left-Hand Housing with positions for six 12- fibers EMF-MTP® Modules
General Specifications
| Product Number | CCF-CML-07289 |
| Product Type | Frames and Cable Managers |
| Cable Type | Single fiber (900 µm) |
| Mounting Type | Rack-mount |
| Application | Central Office, Headend, Carrier Networks, Fiber to the Premises |
| Technology | Fusion Splice |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design
| Cable Entry Direction | Right-rear bottom, horizontal |
| Housing Type | EMF |
| Panel or Module Type | EMF |
Cable Design
| Fiber Count | 72 |
Design - Adapter
| Housing Color | White |
Connector Specs
| Connector Type | LC |
Dimensions
| Height | 1397 cm |
Ordering Information
| Height Unit | 1 U |
| Units per Delivery | 1/1 |
Individual 12-fiber modules
Maximize scalability and modularity
Integrated splicing capability
Enables on-frame splicing without sacrificing density
Modules extend/retract independently
Minimizes connector disturbance
Top and rear strain-relief
Ensures bend-radius control
