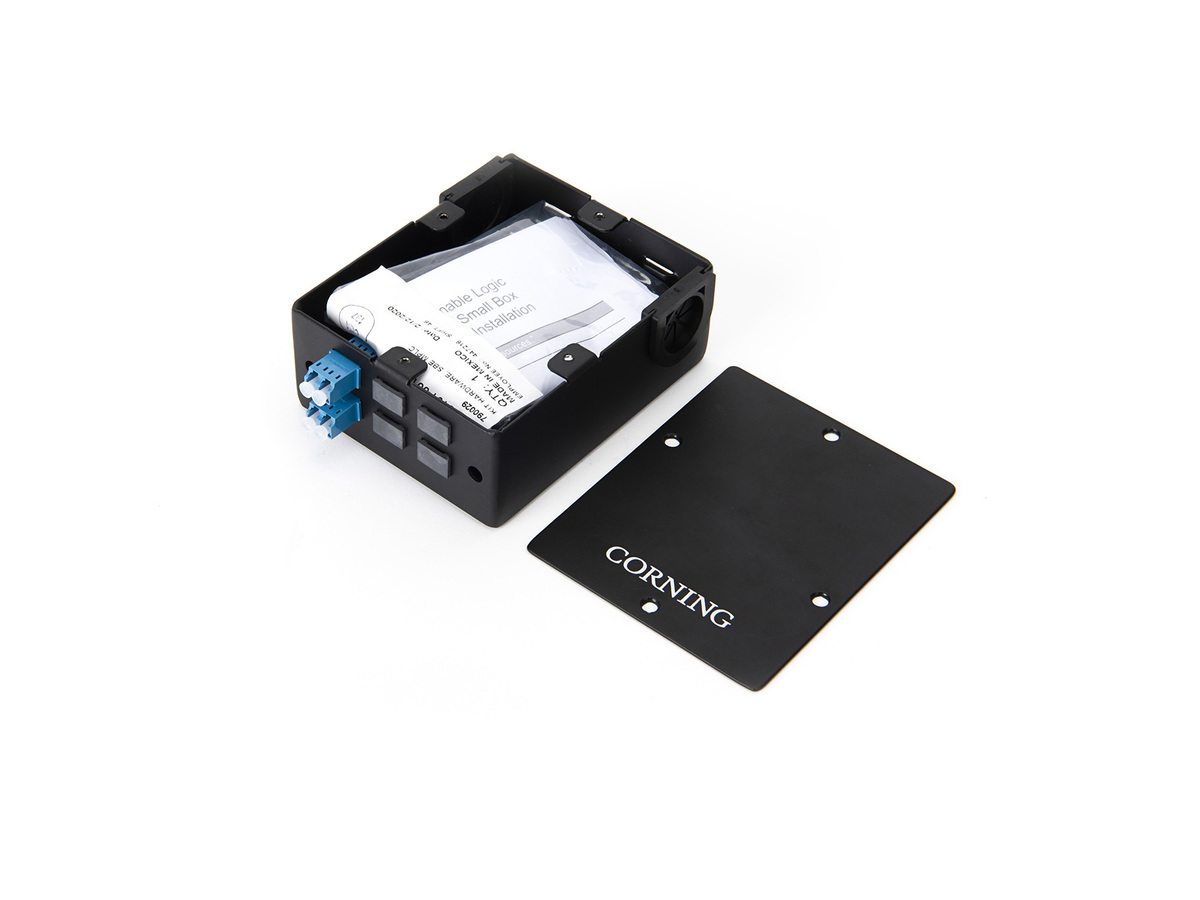

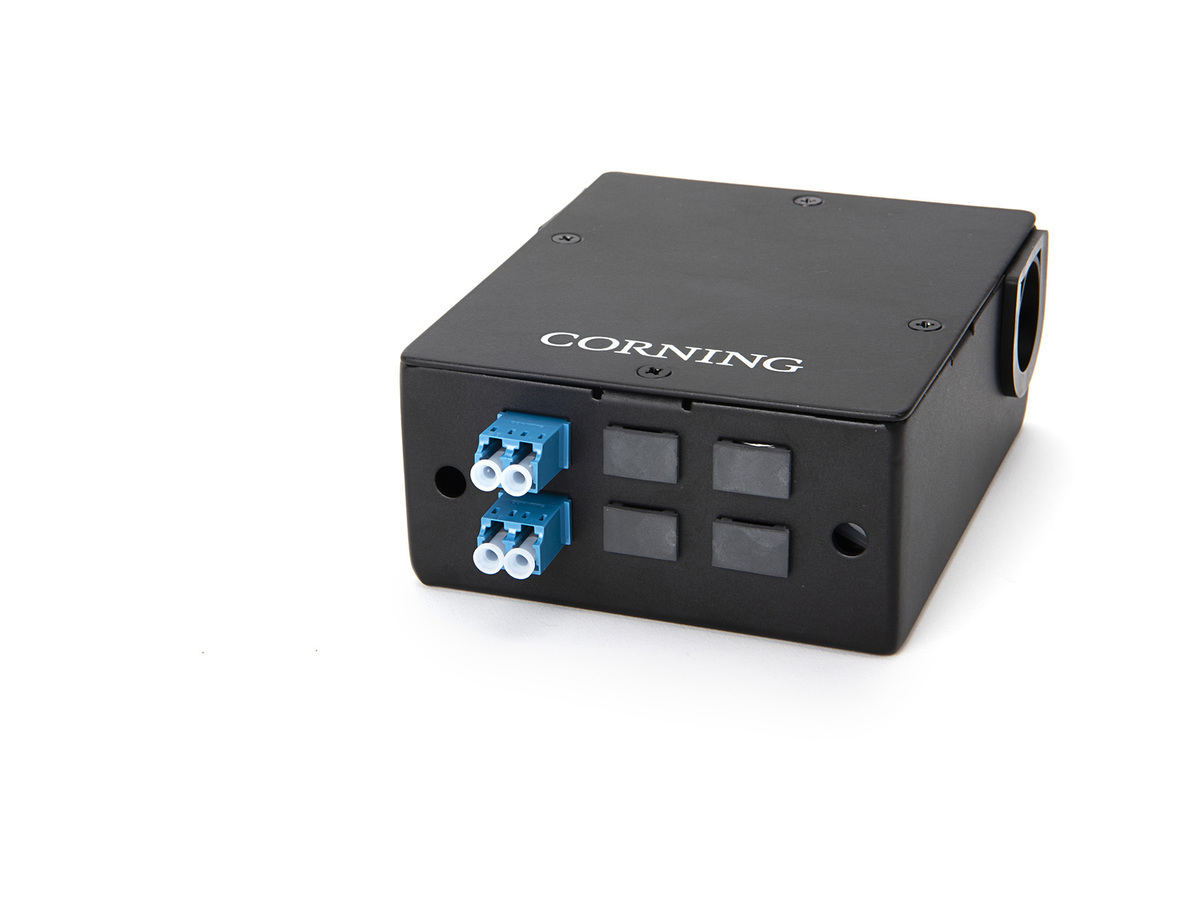

SBE-JMPR-BKT
Surface Mount Enclosure Jumper Protection Bracket SBE
General Specifications
| Product Number | SBE-JMPR-BKT |
| Product Type | Wall-Mountable Hardware |
| Environment | Indoor |
| Access Type | Front access |
| Lockable | No |
| Mounting Type | Wall-Mountable |
| Splice option | Yes |
| Application | Enterprise Networks |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design
| Color | Black |
Dimensions
| Height | 102 mm (4.02 in) |
| Width | 48 mm (1.89 in) |
| Depth | 86 mm (3.39 in) |
Ordering Information
| Package Contents | Surface Mount Enclosure Jumper Protection Bracket |
| Shipping Height | 197 mm (7.76 in) |
| Shipping Width | 54 mm (2.13 in) |
| Shipping Depth | 171 mm (6.73 in) |
Metal housing with smooth, black powder coat finish
Durability with better label adhesion
Built in splice tray
Cable and fiber management, protection
DIN/Hat Rail Mountable
Versatile mounting options
Small wall-mount housing for pre-term or field term
Minimal mounting space required, Box-in-a-Box
