12F, Bend-improved Single-mode (OS2), Ultra-Low-Loss

ECM-RM12-04-89G-ULL

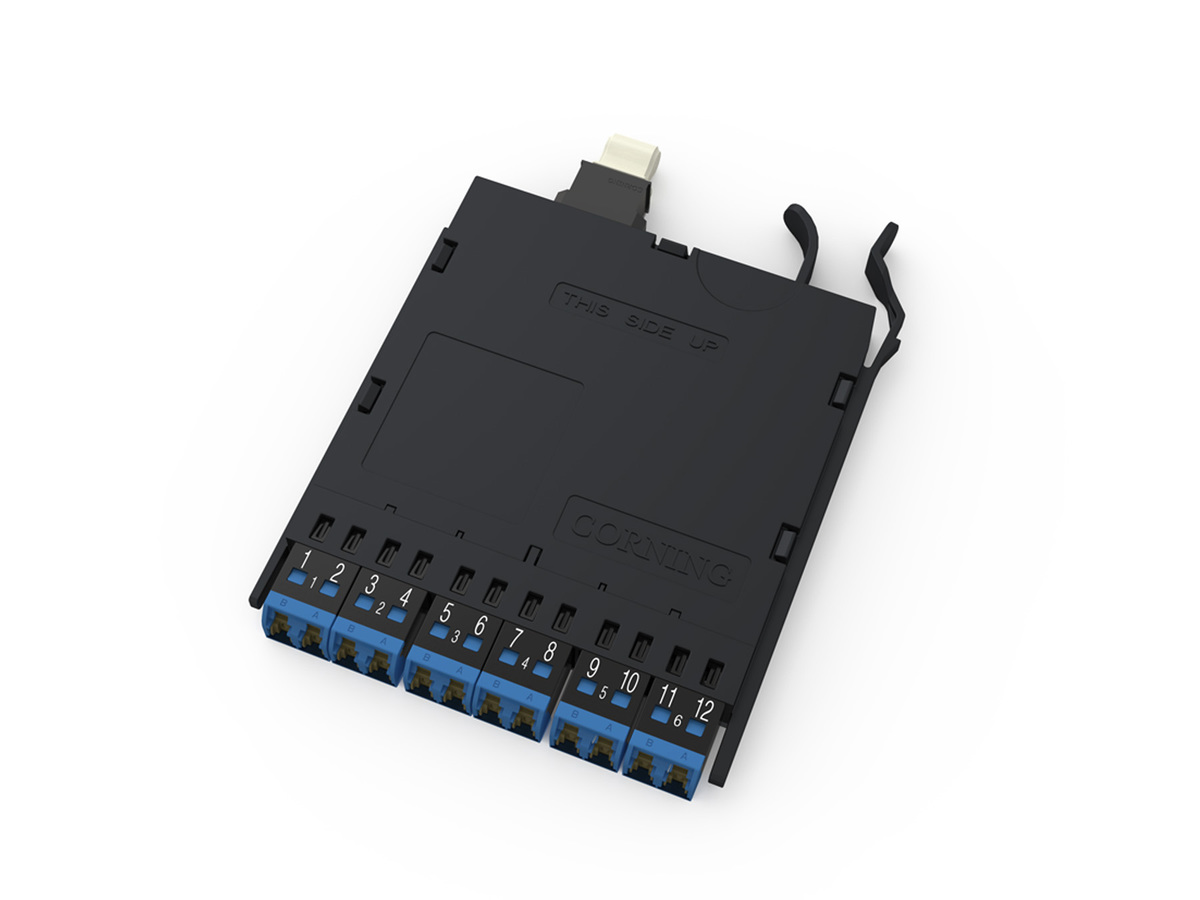

EDGE™ Module, Ultra Low Loss  12F, Bend-improved Single-mode (OS2), Ultra-Low-Loss

Typically ships in 42 day(s) Actual lead time confirmed upon receipt of order.
E-mail
Product Specifications Solution Specification

Specifications
General Specifications
Product Number ECM-RM12-04-89G-ULL
Product Type Modules
Fiber Category Bend-improved Single-Mode (OS2)
Application Data Center LAN/SAN
Standards
RoHS Free of hazardous substances according to RoHS 2011/65/EU
Design
Fiber Count 12
Adapter Type Back MTP®
Adapter Color Back Black
Adapter Color Front Blue
Adapter Type Front Shuttered LC Duplex
Housing Type Modules
Product Family EDGE™
Optical Specification - Hardware
Module Insertion Loss, Max 0.6 dB
Specifications - Connector A
Connector Type MTP® (pinned)
Polish APC
Ferrule Material Composite
Endface Type UPC
Specifications - Connector B
Connector Type LC Duplex
Polish UPC
Ferrule Material Ceramic
Dimensions
Width 92 mm (3.62 in)
Depth 125 mm (4.92 in)
Weight 11 kg
Ordering Information
Packaging Method Individual Blister Packs
Units per Delivery 1/1
