AA990AKGPNHBB100F

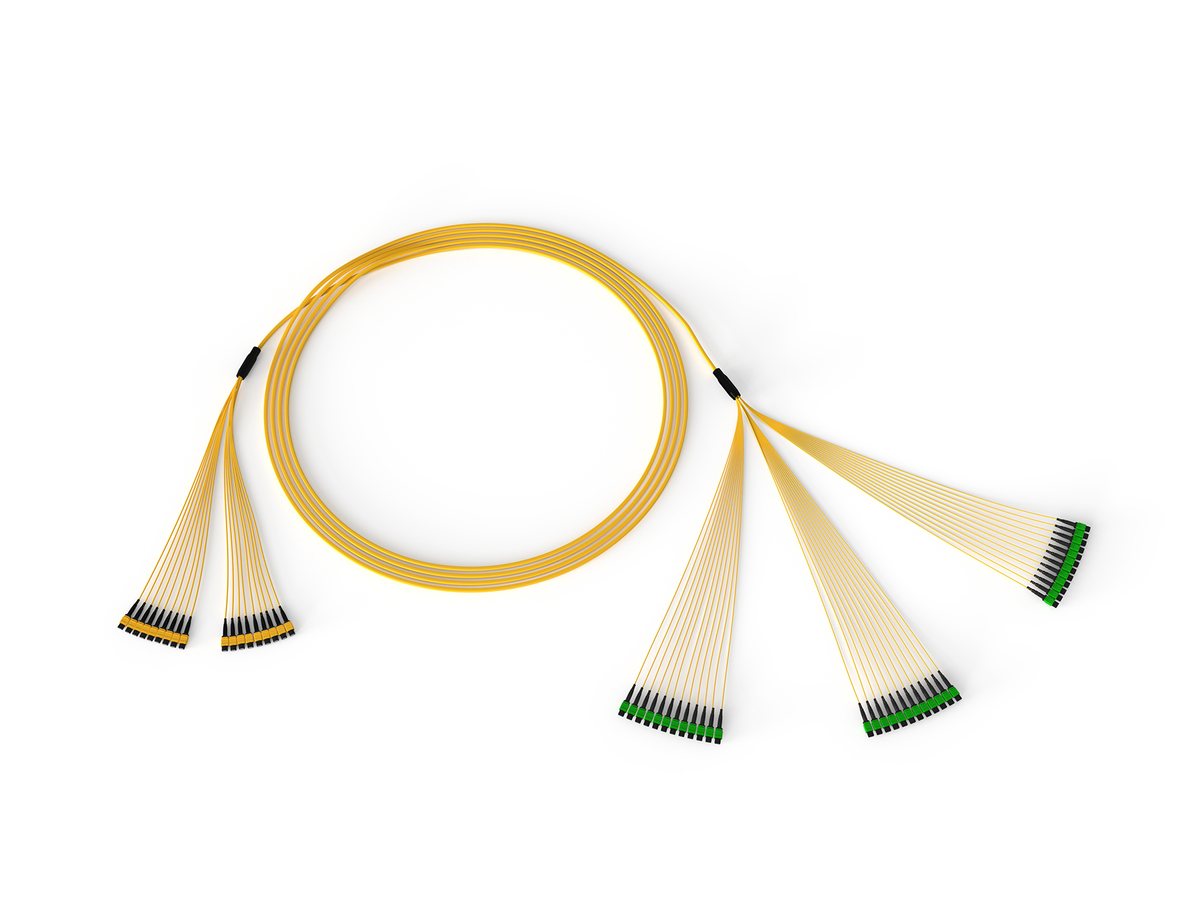

EDGE™ RC Indoor Breakout Trunk - MTP to MTP 432F, 24F MTP (Non-Pinned) to 12F MTP (Non-pinned), Single-Mode Ultra (OS2), Indoor Plenum, Pulling grip on 24F MTP end, 100 feet
General Specifications
| Product Number | AA990AKGPNHBB100F |
| Fiber Category | SMF-28® Ultra |
| Cable Assembly Type | EDGE™ Rapid Connect Trunk |
| Environment | Indoor |
| Application | Data Center LAN/SAN |
| Brand | EDGE™ |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design
| Fiber Count | 432 |
| Outer Jacket Material | Plenum |
| Polarity | TIA-568 Type-B |
| Fiber Type | Single-mode |
Mechanical Specifications
| Nominal Outer Diameter | 30.4 mm (1.2 in ) |
| Max. Tensile Strength, Short-Term | 660 N (148.37 lbf) |
| Crush Resistance | 1000 N/10 cm |
| Min. Bend Radius Installation | 608 mm (23.94 in) |
| Min. Bend Radius Operation | 304 mm (11.97 in) |
Specifications - Connector A
| Polish | APC |
| Insertion Loss, Max. | 0.75 dB |
| Tensile Strength Jacketed Cable | 44 N (9.89 lbf) |
| Durability | ≤ 0.2 dB change, 200 rematings, FOTP-21 |
| Boot Color | Black |
| Connector Type | 24 F MTP® (non-pinned) |
| Ferrule Material | Composite |
| Housing Color | Mustard |
| Housing Material | Composite |
| Reflectance | ≤ -55 dB |
Specifications - Connector B
| Polish | APC |
| Insertion Loss, Max. | 0.75 dB |
| Tensile Strength Jacketed Cable | 44 N (9.89 lbf) |
| Durability | ≤ 0.2 dB change, 200 rematings, FOTP-21 |
| Boot Color | Black |
| Connector Type | 12 F MTP® (non-pinned) |
| Ferrule Material | Composite |
| Housing Color | Green |
| Housing Material | Composite |
| Reflectance | ≤ -65 dB |
Furcation - Connector A
| Leg Length | 1300 mm (51.18 in) |
| Furcation Type | Heat-shrink with strain-relief |
| Leg Color | Yellow |
| Leg Diameter | 3.5 mm (0.14 in) |
| Plug Type | Heat Shrink |
| Leg Count | 18 |
Furcation - Connector B
| Furcation Type | Heat Shrink |
| Leg Color | Yellow |
| Leg Diameter | 2 mm (0.08 in) |
| Plug Type | Heat Shrink |
| Leg Count | 18 |
| Leg Length | 990 mm (38.98 in) |
Pulling Grip - Connector A
| Pulling grip | Yes |
Pulling Grip - Connector B
| Pulling grip | Yes |
| Tensile Strength | 450 N (101.16 lbf) |
Dimensions
| Length | 100 ft |
| Weight | 694.5 kg |
Ordering Information
| Packaging Method | Plastic reel |
Reduced Installation Time
EDGE RC allows the installer to remove splicing in the field. Reducing time and cost by up to 70 percent when compared to deploying multiple cables in lower fiber counts.
Factory Termination
Results in quicker deployment and better performance while reducing risks associated with field installation, rework, or high insertion loss.
Solution flexibility
Allows a flexible path to connectivity with MTP and LC configurations.
