288ZZ4-14161B53
MiniXtend® Ribbon Cable-200 Flow 288F, Bend-Improved Single-mode (OS2)
General Specifications
| Product Number | 288ZZ4-14161B53 |
| EAN Code | 4099802348768 |
| Cable Type | Ribbon |
| Environment | Outdoor |
| Product Type | Dielectric |
| Application | Miniduct |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
| Temperature Range, Installation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature Range, Operation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

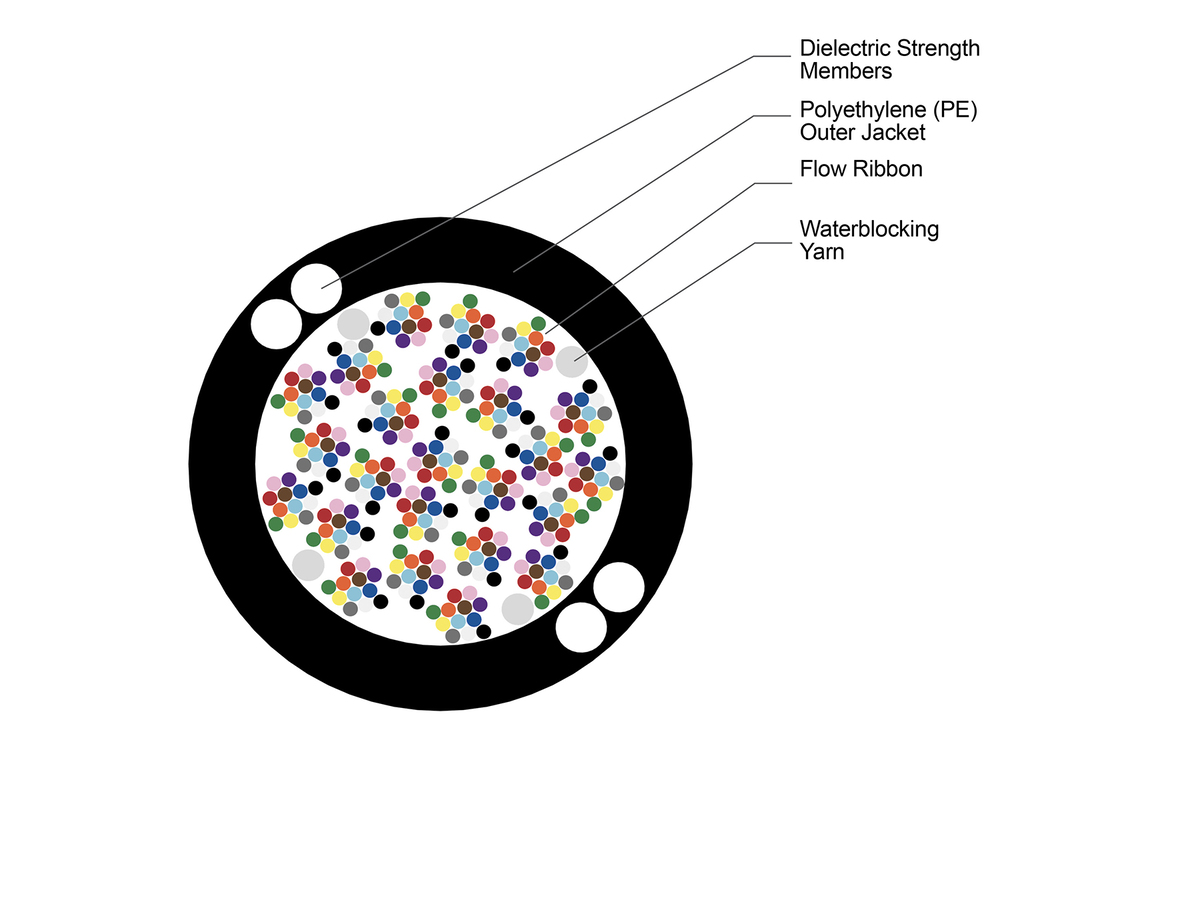

Cable Design
| Fiber Count | 288 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tape | Water-swellable |
Mechanical Specifications
| Max. Tensile Strength, Short-Term | 1334 N (299.9 lbf) |
| Nominal Outer Diameter | 7.9 mm (0.31 in ) |
| Min. Bend Diameter Operation | 238 mm (9.37 in) |
| Min. Bend Diameter Installation | 316 mm (12.44 in) |
Optical Characteristics
| Fiber Code | Z |
| Fiber Name | G.657.A1 Optical fiber with 190-micron outer diameter |
| Fiber Type | Single-mode |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Performance Option Code | 61 |
| Cladding diameter | 125 µm |
| Dispersion @ 1550 nm | ≤ 18.6 nm |
| Dispersion @ 1625 nm | ≤ 23.7 nm |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Wavelengths | 1310 nm / 1550 nm |
| PMD maximum individual fiber | ≤ 0.1 ps/(nm*km) |
| Coating diameter | 188 µm |
| Fiber Category | G.652.D/G.657.A1 |
Dimensions
| Cable Weight | 44 kg/km (29.57 lb/1000 ft) |
| Length | 0 mm (0 in) |
Ordering Information
| Maximum Delivery Length | 8000 m (26240 ft) |
Bend-Improved Single-mode 190 μm Diameter
ITU-T G.652.D and G.657.A1-compliant 190 micron single-mode fiber with a 9.2 μm MFD maintains full compatibility with existing fiber networks
Flow Ribbon Technology
Allows for smaller cable designs and easier routing in hardware. Flow Ribbons are compatible with both 200 μm and 250 μm commercially available splicers
Reduced Cable Diameter
High fiber density in microduct systems. Up to 60 percent reduction in cable diameter (compared to existing SST-UltraRibbon™) doubling fiber count per duct at similar ODs
Optimized for air-assisted install in microducts
Capable of installation distances greater than 2000 m (6560 ft) at speeds up to 150 m/min (490 ft/min)
Compact and light
CapEx-optimised installations & upgrades
