072ZC5-14100D53

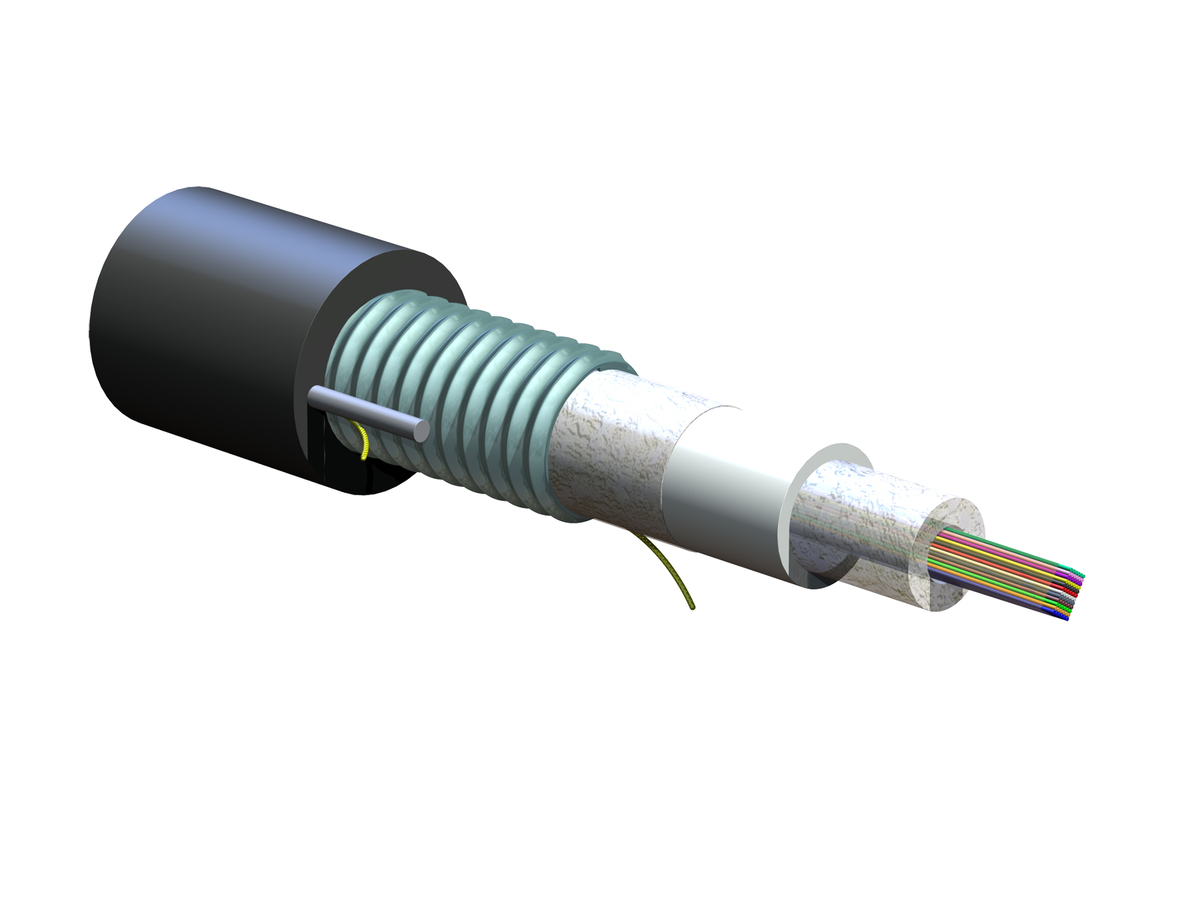

SST-Ribbon Single-Tube, Gel-Free, Armored Cable 72 F, Bend-improved Single-mode (OS2)
General Specifications
| Product Number | 072ZC5-14100D53 |
| EAN Code | 4059496284872 |
| Cable Type | Ribbon |
| Environment | Outdoor |
| Product Type | Dielectric armor |
| Fiber Category | SMF-28® Ultra fiber |
| Application | Aerial, Duct, Direct Buried |
| Cable geometry | Round |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor lashed aerial, duct and direct-buried, indoor when installed according to National Electrical Code® (NEC®) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-87-640, Telcordia GR-20, RDUP PE-90 |
Environmental Conditions
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

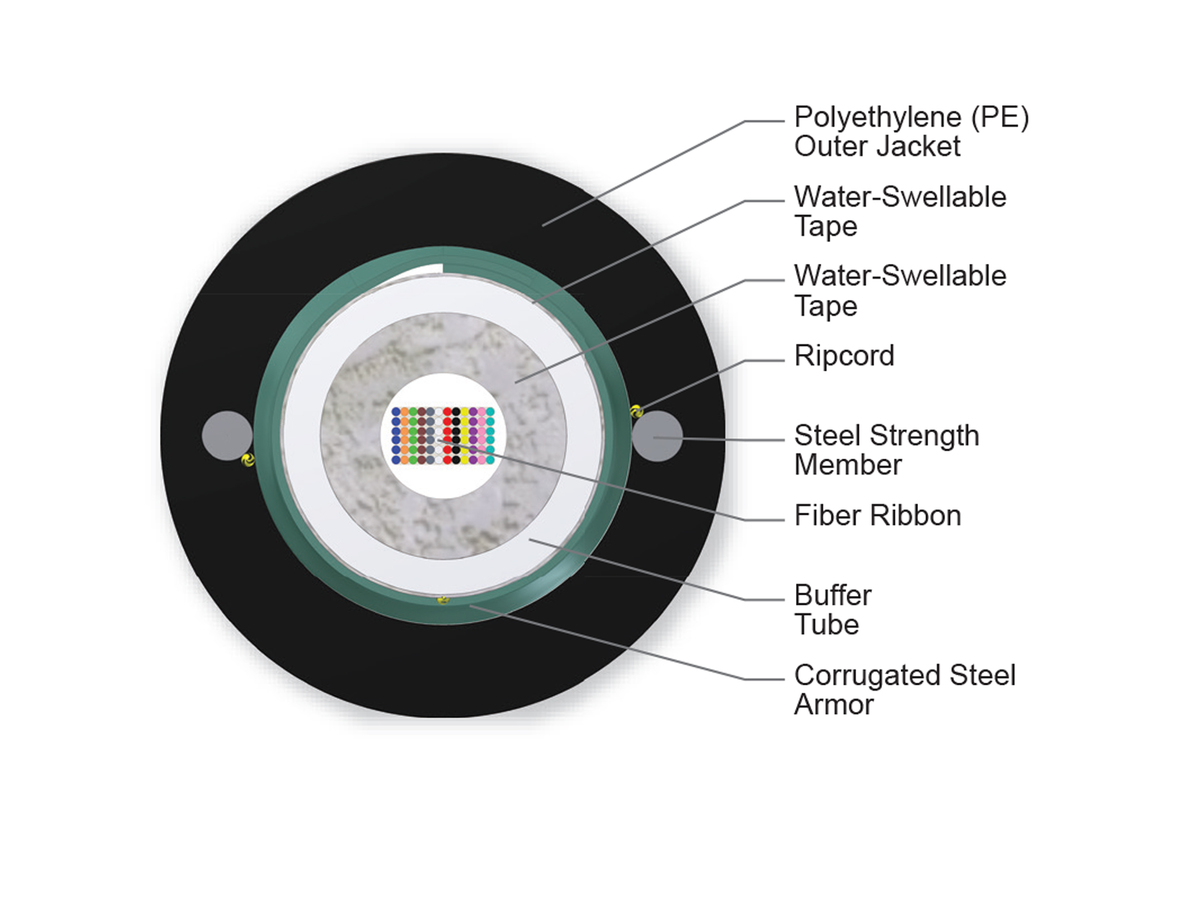

Cable Design
| Buffer Tube Color | Natural |
| Fiber Count | 72 |
| Buffer Tube Diameter | 6.1 mm (0.24 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Steel strength members |
| Tape | Water-swellable |
| Tape, Layer 1 | Water-swellable |
| Tape, Layer 2 | Water-swellable |
| Ribbons per Tube | 6 |
| Fibers per Ribbon | 12 |
Mechanical Specifications
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Nominal Outer Diameter | 12.9 mm (0.51 in ) |
| Min. Bend Diameter Operation | 238 mm (9.37 in) |
| Min. Bend Diameter Installation | 388 mm (15.28 in) |
Optical Characteristics
| Fiber Code | Z |
| Fiber Name | SMF-28® Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 00 |
| Maximum Attenuation | 0.35 dB/km / 0.35 dB/km / 0.25 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D/G.657.A1 |
Dimensions
| Cable Weight | 171 kg/km (114.91 lb/1000 ft) |
| Length | 0 mm (0 in) |
Gel-free waterblocking technology
Craft-friendly cable preparation
Innovative waterblocking technology
Prevents water penetration
12-fiber ribbons with ribbon IDs
Easy identification
Up to 216 fibers in a compact design
Easily fits in 1.0 inch inner diameter duct
